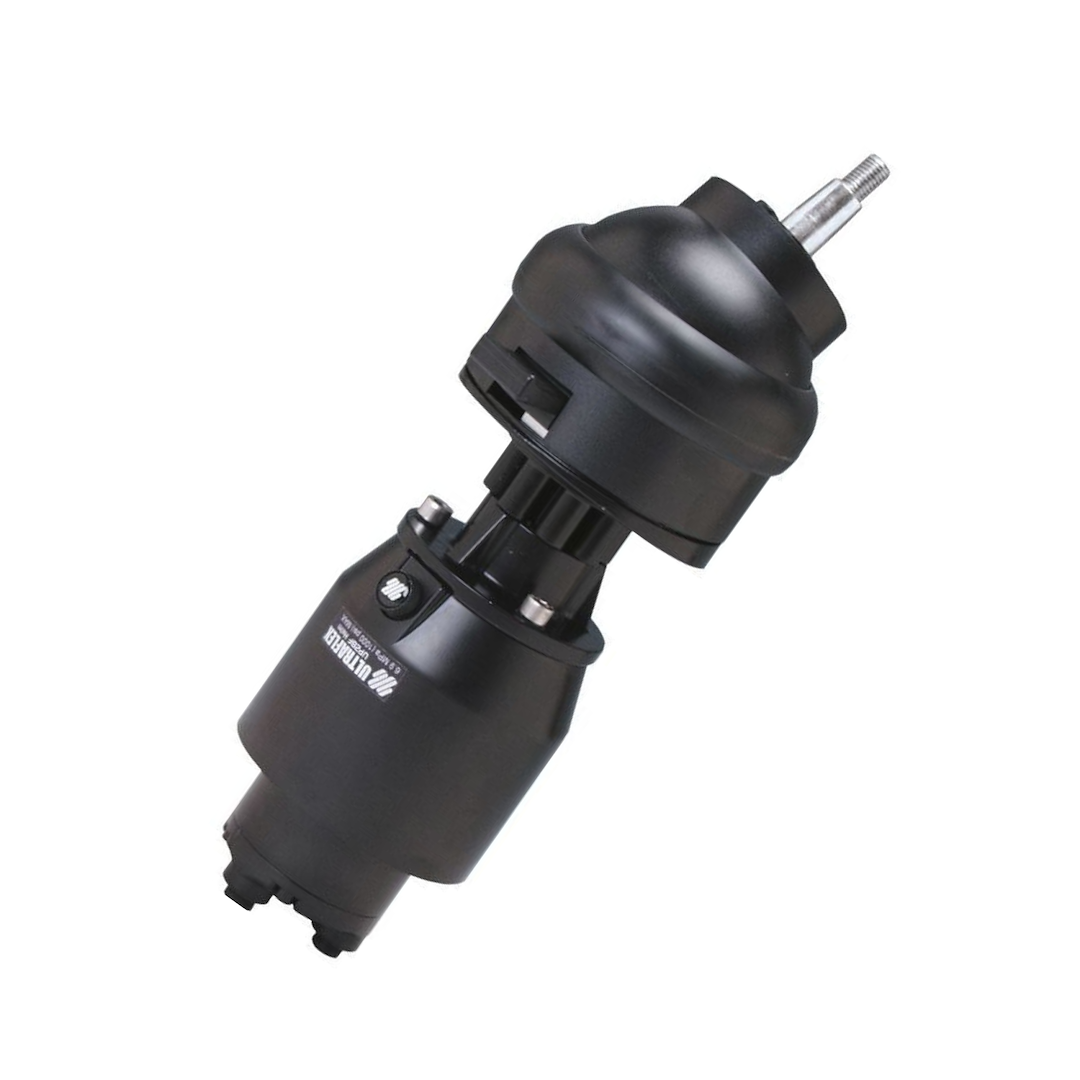

Uflex UP28T-X52 Tilt-Mount Hydraulic Steering Helm Pump 1.7 cu in

The Uflex UP28T-X52 is the helm end of a hydraulic steering system, the pump that mounts at your dash and turns the motion of the wheel into hydraulic pressure. That pressure runs through the hoses to the cylinder on your outboard or sterndrive, and that's what actually moves the engine. This one is the tilt-mount version, built around the X52 tilt mechanism, with 1.7 cubic inch of displacement per turn.

The X52 is what sets the tilt helms apart from the fixed ones. You get 48 degrees of tilt spread across five locking positions, so you can drop the wheel down flat to climb in and out of the seat, then bring it back up to a comfortable angle once you're settled in. Anyone who's driven standing up in a center console all day knows how much difference just a few degrees of wheel angle makes. It's the same automotive-style tilt you'd find in a car, and it clicks solidly into each detent so it stays put once you set it.

Inside, it's built the way a helm pump should be. Ball bearing piston races keep the steering light and smooth, so you're not fighting the wheel at low speed or when you're backing into a slip. The rotor is cast iron, which stands up to the loads hydraulic steering puts on it. And there's an integral relief valve, so when the cylinder hits the end of its travel the pressure has somewhere to go instead of hammering the rest of the system.

Fitment is straightforward once you know what you're matching. The output shaft is a 3/4 inch taper, the standard marine size, so most steering wheels bolt right on. It takes up to a 16 inch wheel, which gives you plenty of turning power at the helm. The 1.7 cubic inch displacement is sized for single-cylinder hydraulic steering on small to mid-size boats, and it's worth matching that displacement to your cylinder so your lock-to-lock turn count feels right. Too much or too little and the wheel either spins forever or feels twitchy.

So who's this for? It's a common pick for center consoles, bay boats, walkarounds, and smaller cruisers running a single outboard or a sterndrive, where you want the comfort of hydraulic steering without the effort of an old cable setup. If you've been muscling a rotary cable system, the jump to hydraulic is night and day. The wheel loads up smoothly and holds its line in a following sea. The tilt just adds one more bit of comfort for the way you actually stand or sit at the helm.

It ships with 90 degree adjustable fittings for 3/8 inch tube, which is a real help when you're routing hose behind a crowded dash and every inch of clearance counts. The pump is compatible with standard marine hydraulic cylinders, hoses, fittings, and oil, so you're not locked into one particular way of building out the system. Keep in mind the cylinder, the hoses, and the steering fluid are all separate, since what you're buying here is the helm component on its own.

A few things worth knowing before you install it. The ball bearing races want a little grease at the start of each season, especially on a saltwater boat, or the tilt action can get stiff over time. Torque the wheel nut down to spec so it doesn't work loose under engine vibration. And take your time clocking those 90 degree fittings when you make up the hose ends, because a fitting that sits a hair off is the usual reason a fresh install starts to weep. Get those details right and this is a helm that'll steer clean for a lot of seasons. Whether you're rebuilding a tired hydraulic system or rigging up a brand new console, it's a dependable place to start.
