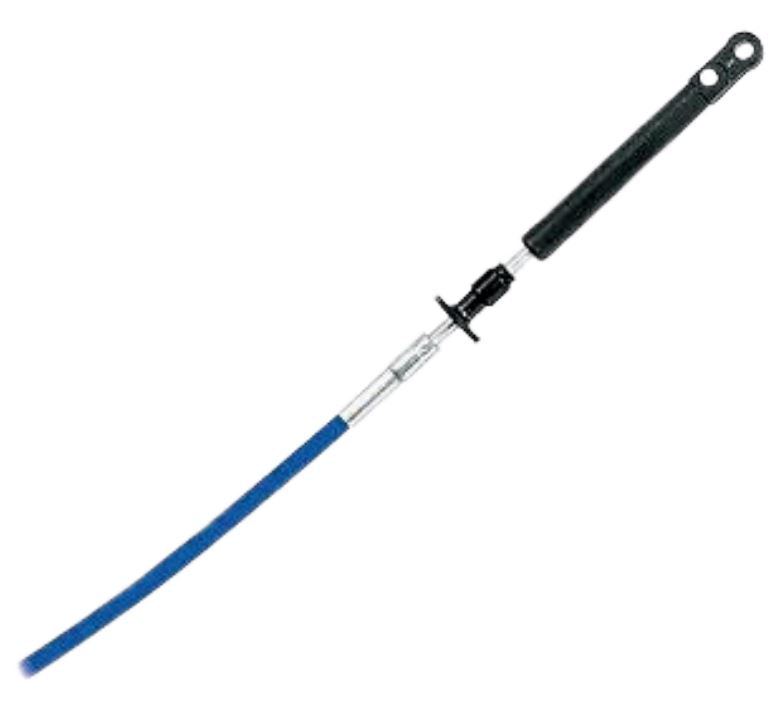

Uflex MACH14X15 15ft Control Cable, 479/CC205

SKU: 2009084 · UPC: 702755027867 · MPN: MACH14X15
4.7 · 0 reviews
Authorized dealer
$53.79
or 4 payments of $13.44 with Affirm · See disclosures
In stock — Ships today Pickup Tuesday · Fort Lauderdale (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$53.79
02 · Overview

Uflex MACH14X15 15ft Control Cable, 479/CC205 — Product description

The Uflex USA MACH14X15 is a 15-foot marine engine control cable that replaces the 479-type CC205 cables on OMC, Johnson, Evinrude and BRP single-lever controls from 1979 to present. When your old cable turns stiff or notchy, this one drops right in and gets your shift and throttle feeling crisp again.

If you've got a Johnson, Evinrude, or OMC outboard from 1979 on, odds are it runs a 479-type single-lever remote control at the helm. This Uflex USA MACH14X15 is the 15-foot replacement cable for that setup. It moves shift or throttle through the same push-pull core the factory used, so when your old cable gets stiff, notchy, or won't hold an adjustment, this one drops right in.

Control cables wear out. That's just the deal on any boat that sees real hours. The inner core picks up corrosion, the jacket takes a set from years of the same bend at the transom, and one day the lever feels gritty or the engine won't come all the way back to idle. When that happens, you don't want to fight it. You want a cable that matches the 479 / CC205 series ends and routes the same way the original did.

The MACH14X15 is built for BRP-style single-lever controls, 1979 to present. That covers a big swath of Johnson and Evinrude rigs, from bay-boat 70s and 90s up through the bigger V6s. It's a 15-foot cable, which is the sweet spot for a lot of center consoles and walk-arounds where the helm sits mid-boat and the run to the transom isn't short. Before you order, measure the old cable tip to tip and round up to the next whole foot. If you're routing fresh, run a string along the path you'll use and add ten to fifteen percent so you're not forcing a tight bend anywhere. A cable that's pulled too short binds, and binding is the one thing that'll kill a new cable early.

Install is straightforward if you've done a cable before. Pull the old one, note how it was routed and where it was clamped, and mirror that. Grease both ends well before you seat them, especially the motor end. On saltwater boats the core can start to rust at the engine end inside a couple of seasons if it runs dry, so a good marine grease at install and a re-grease each season goes a long way. Seat the barrel in the control and at the engine, then adjust so you get full throttle and clean detents into forward, neutral, and reverse. Check it before you leave the dock.

A couple of honest notes. These aftermarket ends are cut close to spec, but on some older OMC controls you may need a light touch with a file to get the 479-style end to seat fully. It's a minute of work, not a deal-breaker. And the jacket runs a hair larger than some original cables, so if your boat has tight gunwale tubes from the '80s, feed it through before you commit to the routing. If you're already in there, this is a good time to freshen up the control head too. Reusing a worn lever with a new cable can leave you with notchiness at idle that isn't the cable's fault.

Who's this for? Anybody keeping an older Johnson, Evinrude, or OMC-powered boat on the water and doing their own rigging. It's a maintenance part, not an upgrade, so we're not going to oversell it. If your control feels rough and you've traced it to the cable, this is the part that fixes it. Match the length, grease it, adjust it right, and you're back to smooth shifts and a throttle that snaps to idle the way it should.

One more thing on stretch. Push-pull cables settle in over the first season, and on 2-stroke OMC rigs some folks see a little stretch after a year or so. That's normal. Just plan on re-checking the barrel adjustment at the engine end when you do your seasonal service and you'll keep the shift crisp.

Key Features

  • 15-foot cable length, sized for center-console and walk-around helm-to-transom routing without excess loop at the engine
  • 479 / CC205 series ends match OMC-style single-lever controls, 1979 to present, for a direct replacement
  • Push-pull core carries shift or throttle through the single-lever control
  • Uflex USA construction with a corrosion-minded core and jacket for saltwater service
  • Direct interchange for the factory 15-foot control cable, so routing and clamping stay the same
  • Serviceable barrel adjustment at the engine end for dialing in full throttle and clean detents
  • Marine-grade jacket built to take the constant flex at the transom bend

Why Buy from NVN Marine

  • Authorized Uflex USA reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Tuesday) $53.79
03 · The numbers

Technical specifications

Title Uflex USA MACH14X15 479 Type CC205 Control Cable, 15 Foot
Brand Uflex USA
Manufacturer Part Number MACH14X15
UPC 702755027867
Cable Length 15 Feet
Cable Series 479 Type / CC205
Application Engine shift or throttle control cable
Control Type Single-lever remote control
Cable Style Push-pull
Engine Compatibility OMC, Johnson, Evinrude, BRP
Model Year Coverage 1979 to present
Interchange Part Number UFXMACH14X15
04 · Before you buy

Frequently asked questions

What engines and controls does the MACH14X15 fit?

It's built for 479-type / CC205 single-lever remote controls used on OMC, Johnson, Evinrude and BRP rigs from 1979 to present. If your helm has one of those single-lever controls, this is the matching 15-foot cable.

How do I know if 15 feet is the right length?

Measure your old cable tip to tip and round up to the next whole foot. If you're routing a fresh run, lay a string along the exact path and add ten to fifteen percent so nothing gets pulled into a tight bend.

Does this cable handle both shift and throttle?

It's a single push-pull control cable. A single-lever control uses one cable for shift and one for throttle, so order the length you need for each run.

Will it fit my older OMC control exactly?

The 479-style ends are cut close to spec, but on some older OMC controls you may need a light touch with a file to seat the end fully. It's a quick job, not a deal-breaker.

Do I need to grease the cable?

Yes. Grease both ends at install, especially the motor end. On saltwater boats the core can rust at the engine end within a couple of seasons if it runs dry, so re-grease each season.

Can I reuse my old control head?

You can, but a worn lever paired with a new cable can leave you with notchiness at idle that isn't the cable's fault. If the control feels tired, it's worth freshening up while you're in there.

The shift feels notchy after I installed it. What gives?

Usually it's one of three things: a worn control head, ends that need more grease, or binding from a run that's too short or bent too tight. Check the routing and lube before you blame the cable.

Does the cable stretch over time?

Push-pull cables settle in over the first season, and on 2-stroke OMC rigs some owners see a little stretch after a year. Re-check the barrel adjustment at the engine end during seasonal service and you'll keep the shift crisp.

Will the jacket fit through my old rigging tubes?

The jacket runs a hair larger than some original cables. If your boat has tight gunwale tubes from the '80s, feed it through before you commit to the routing.

What's the interchange part number?

This is Uflex USA MACH14X15, also listed under the interchange number UFXMACH14X15.
