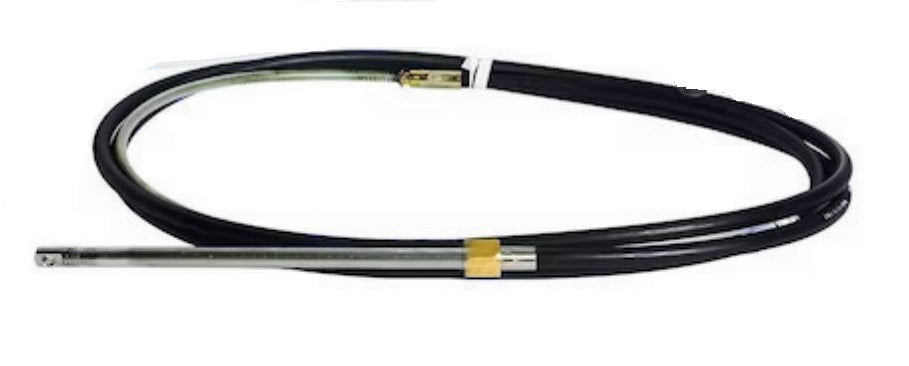

Uflex M90BX19 19' Black Mach Rotary Steering Cable

The Uflex M90BX19 is the 19-foot cable in the Mach rotary steering family, and it's the part that actually turns wheel input into engine movement. You spin the helm, the rotary gear inside winds this cable around a drum, and the stainless steel output end pushes and pulls at the engine tilt tube. Simple, proven, and exactly what most single-station boats run every day out there. It's the workhorse of mechanical steering.

Rotary and rack are the two common mechanical steering styles. Rotary, like this one, uses a gear that winds the cable inside the helm. It stays compact behind the dash and gives a light, quick feel that most runabout and center-console owners prefer. It's the go-to for single-engine outboards where you don't need the heavier feedback a rack setup delivers. You get a clean, direct connection from wheel to engine with no hydraulic lines to bleed or fluid to top off. For a lot of boats, this is exactly the right amount of steering system.

This 19-foot length is sized for most 18 to 22 foot boats with a single helm. Center consoles, bay boats, runabouts, the usual suspects. The way to check is simple. Measure from the back of the helm to the engine centerline, then add about two feet of slack for a clean routing path. Come up short and the cable fights you at every corner. Go too long and you've just got extra loop to tuck away somewhere. If you're on a walkaround or a dual-console over 23 feet, this one's probably too short, and you'll want to step up a size rather than force it.

Pay attention to that 5.9-inch minimum bend radius. It matters more than most people expect. Route this cable around a stringer or through a tight bilge and pinch it tighter than 5.9 inches, and the inner core starts binding against the jacket. The result is stiff, notchy steering that only gets worse with time. We've chased down plenty of bad-helm complaints that turned out to be a cable crushed into too tight a loop behind the console. Give it gentle sweeps, support the long runs, and it'll turn smooth for years.

The output end fitting is stainless steel, which is the right call for a part that lives at the transom taking salt spray every trip. It resists corrosion far better than plated steel does. That said, nothing out here is truly maintenance-free. Pull the cable from the tilt tube once a season, wipe it down, and hit it with a good marine grease. A five-minute job that saves you a much bigger one. Skip that step and even stainless will eventually seize inside the tube, and that's the number one reason these cables get replaced before their time.

A couple of install notes from experience. Don't overtighten the clamp where the cable passes the transom bracket. Crank it down too hard and you create a friction point on the inner core, and the steering goes stiff within a few months. Snug is plenty. And if any part of your run sees direct sun, route it under the gunwale or slip it into split loom. The black jacket holds up well, but constant UV will eventually check the outer sleeve. Kept out of the light, it lasts a long time.

The Mach system is a universal rotary setup, so this cable pairs with a matching Mach rotary helm and bezel. Keep in mind this listing is the cable only. If you're replacing a worn cable, match the length to what came out and you're set. If you're building a fresh system from scratch, spec the helm, the bezel, and this cable together so everything works as one. Either way, it's a straightforward mechanical steering solution that keeps a single-station boat pointing right where you want it, season after season.
