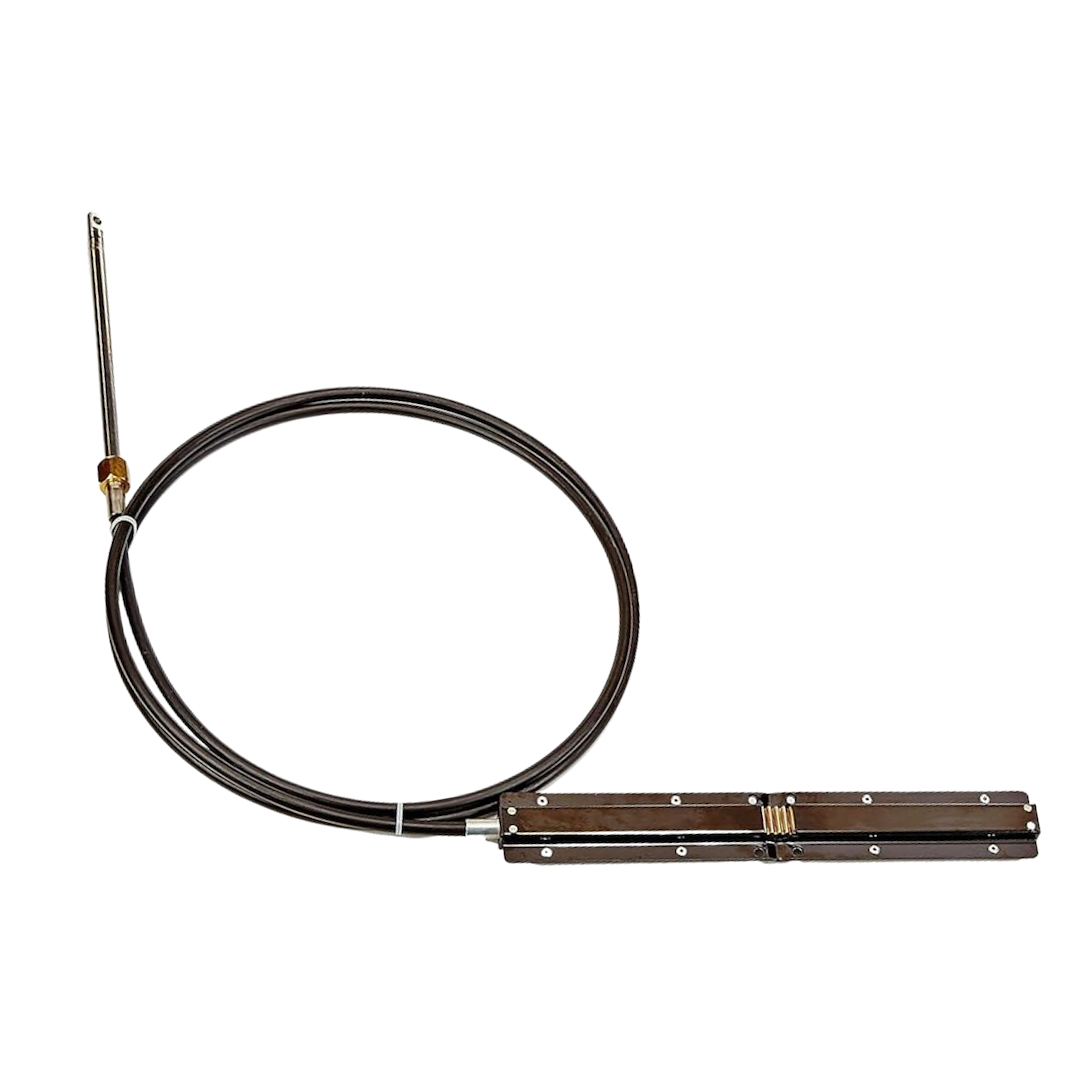

Uflex M86X12 Rack and Pinion Steering Cable, 12 Foot

The Uflex M86X12 is a 12-foot rack-and-pinion mechanical steering cable, the part that actually turns your outboard when you spin the wheel. It's the working link between a rack-style helm and the engine's tiller arm. If your old cable has gone stiff, notchy, or started weeping grease at the output end, this is the replacement that gets your steering feeling tight again.

Rack and pinion is the most direct way to move a steering cable. A pinion gear cut into the helm shaft drives a toothed rack, and that rack pushes and pulls the inner cable with very little lost motion. You feel it at the wheel. Less slop, quicker response off-center, and a solid connection when you're trimmed out and running. For single-outboard boats in the 18 to 22 foot range, a 12-foot cable is usually the right length to reach from a dash-mounted helm back to the transom.

The output end fitting is stainless steel, which matters more than it sounds. That's the end that lives down in the splash zone at the engine, taking salt spray every time you run. Stainless holds up where a plated fitting would pit and seize. The jacket is black, so it disappears against a rigging tunnel or under the gunwale.

One number to respect during install: the minimum bend radius is 7.9 inches. Route the cable in gentle sweeps, never tight corners. Force it around anything sharper and the inner cable starts to bind, sometimes within the first season. Plan your path before you pull the old cable, and keep the run away from engine heat and battery cables. Heat cooks the jacket over time, and a cracked jacket lets water in.

Measure twice before you order length. A 12-foot cable can't be shortened, so the routing path from helm to engine needs to actually work at 12 feet with a little slack for the bend radius, not stretched dead tight. If your run is longer, Uflex makes this same cable in other lengths. Match the length to your boat, not the other way around.

Maintenance is simple but it's not optional, especially in salt water. Hit both ends with marine grease on a regular schedule. Rack-and-pinion cables that never get greased seize faster than any other kind, and once the inner cable corrodes inside the jacket you're replacing the whole thing. A few minutes with a grease gun each month is cheap insurance. And because the black jacket hides UV damage until it's too late, give the full run a look once a year for cracks or soft spots.

This is a mechanical cable, so there's no hydraulic fluid, no bleeding, no lines to worry about. That's the appeal for a lot of owners. It's straightforward to install with hand tools, it's predictable, and when it eventually wears out you swap it in an afternoon. It fits universal rack-style helms, so it drops into most existing setups without new hardware, as long as the output end thread matches what's on your engine. Check that before you start.

One more tip from folks who've done this swap: label your steering before you disconnect the old cable, and turn the wheel lock to lock a few times after everything's tight to confirm the engine follows smoothly with no binding at the ends. A cable that moves clean cold will move clean all season. Get the routing and the grease right at install, and this is a part you'll mostly forget about, which is exactly what you want out of your steering.

Who's this for? Owners of small to mid-size outboard boats who want reliable, no-fuss steering and a clean replacement for a tired cable. Who's it not for? If you're running a big multi-engine rig or you want the effortless feel of a hydraulic helm, that's a different system entirely. For a classic center console or a runabout that just needs its steering brought back to life, the M86X12 does exactly that.
