Thetford 30/50 Amp Electrical Cable Hatch | 94336
Thetford 30/50 Amp Electrical Cable Hatch | 94336 — Product description

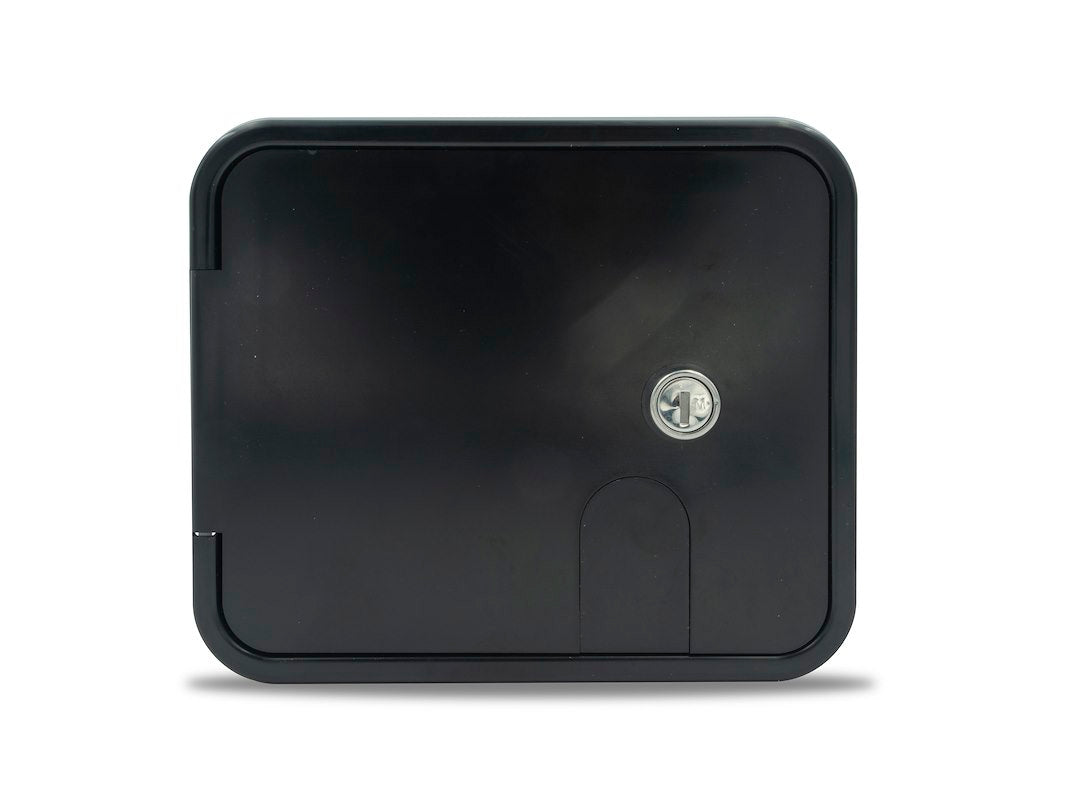

Feeding a shore power cord into your boat means a hole in the hull, and that hole needs a proper door. This Thetford electrical cable hatch gives you a lockable, weather-shedding entry for a 30 or 50 amp cord in black, with a key-alike lock so it matches the rest of your hatches.
The Thetford Electrical Cable Hatch is the door that covers the spot where your shore power cord enters the boat. Every time you plug into dock power, that cord has to pass through the hull or a bulkhead, and you want a clean, lockable hatch sitting there instead of an open hole with a cord jammed through it. This one handles that job in black, with a spring door that closes on the cord and sheds weather when you're unplugged.
Sizing is the part people get wrong, so measure before you order. The cutout you need is 4-3/4 inches tall by 5-7/8 inches wide. The finished hatch sits proud of that opening at 6-1/2 inches tall by 7-5/8 inches wide, and the collar runs 1-1/8 inches deep behind the mounting surface. If you're replacing an old hatch, hold the new one up to the existing cutout first. A cutout that's close but not exact is a quick trim with a file or a jigsaw. Measure twice, cut once. That's the whole game here.
It accepts up to a 30 amp or 50 amp shore power cord, so it covers the two connector sizes most boats and RVs run. The door carries a key-alike lock, which means it opens on a common key pattern shared across matching Thetford hatches. That's handy if you've already got Thetford locks on board and don't want yet another key on the ring. The body is molded from UV and impact resistant material, so it holds its black color and doesn't go brittle or chalky after a few seasons baking in the sun.
This is a straightforward swap for a cracked, faded, or missing cable hatch, and it's just as clean as an addition when you're rigging a new shore power inlet from scratch. You'll want a jigsaw or a hole template for a fresh cutout, plus a bead of marine sealant behind the collar to keep water out of the core. It's an afternoon job with basic hand tools, not something you need to farm out to the yard. Once it's in, you plug in, close the door on the cord, and lock it. Done.
Key Features
- Cutout dimension 4-3/4 in H x 5-7/8 in W, outside dimension 6-1/2 in H x 7-5/8 in W for a clean surface-mount fit
- 1-1/8 inch collar depth clears typical hull and bulkhead thicknesses
- Accepts up to 30 amp or 50 amp shore power cords, covering both common connector sizes
- Key-alike lock opens on a common key pattern, so it matches other Thetford hatches on board
- UV and impact resistant molded body holds its black finish and resists cracking in the sun
- Lockable spring door keeps the cord entry sealed and secured when you're disconnected
Why Buy from NVN Marine
- Authorized Thetford Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Thetford Electrical Cable Hatch, 30/50 Amp, Black |
|---|---|
| Brand | Thetford Marine |
| Manufacturer Part Number | 94336 |
| UPC | 028985943365 |
| Cutout Dimensions (H x W) | 4-3/4 in x 5-7/8 in |
| Outside Dimensions (H x W) | 6-1/2 in x 7-5/8 in |
| Collar Depth | 1-1/8 in |
| Cord Capacity | Up to 30 Amp / 50 Amp |
| Color | Black |
| Lock | Key-alike lock |
| Material | UV and impact resistant |
| Application | Shore power cable hatch |
Frequently asked questions
What size shore power cord does this hatch fit?
It accepts up to a 30 amp or 50 amp cord, so it covers both of the common shore power connector sizes on boats and RVs.
What cutout size do I need?
The cutout is 4-3/4 inches tall by 5-7/8 inches wide. Cut to that and the hatch drops right in.
What's the finished size once it's mounted?
The outside dimension is 6-1/2 inches tall by 7-5/8 inches wide, and the collar sits 1-1/8 inches deep behind the mounting surface.
Is the hatch lockable?
Yes. It has a key-alike lock, which opens on a common key pattern shared with matching Thetford hatches, so you can keep one key for the set.
Will it hold up to sun and weather?
The body is molded from UV and impact resistant material, so it holds its black color and doesn't go brittle after seasons out in the weather.
Can I use this on both a boat and an RV?
Yes. It's a shore power cable hatch that works for either, as long as your cutout matches the 4-3/4 by 5-7/8 inch opening and you run a 30 or 50 amp cord.
