Tekonsha T-One ModuLite HD Connector | 118583
Tekonsha T-One ModuLite HD Connector | 118583 — Product description
If you're wiring up a trailer behind your tow vehicle, the Tekonsha 118583 T-One connector takes the guesswork out of it. It plugs straight into your vehicle's existing harness, no cutting or splicing, and routes everything through the upgraded circuit-protected ModuLite HD module so your trailer lights get clean, fused power.
The Tekonsha 118583 is a T-One connector assembly paired with the upgraded, circuit-protected ModuLite HD module. In plain terms, it's the clean way to wire trailer lights to your tow vehicle without ever touching a wire stripper. The T-One end plugs directly into a matching factory connector already tucked into your vehicle's wiring, so there's no cutting, no splicing, and no scotch-locks to corrode two seasons from now.
The heart of the kit is the ModuLite HD module. It's a powered converter, which means it pulls its own feed straight from the battery instead of leaning on your vehicle's light circuits to carry the trailer's load. That matters. It takes the separate turn and brake signals a modern vehicle runs and combines them into the signal a standard 4-way flat trailer connector expects, then sends that out through its own fused, circuit-protected output. If the trailer side ever shorts out, the module takes the hit, not your truck's wiring or its computer. The HD in the name is about capacity, so it's built to handle the draw of a fully lit trailer without breaking a sweat.
One thing to get right before you order: this is a vehicle-specific harness. The T-One connector is built to mate with a particular factory plug, so it fits some years, makes, and models and not others. Check the fitment for your exact vehicle before you buy. If you're not sure, send us your year, make, and model and we'll confirm it fits before anything ships.
For anyone towing a boat trailer, a utility trailer, or a small camper, this is the setup we'd point you toward when your vehicle has the factory tow prep connector waiting behind the bumper. It's a fifteen-minute job for most folks. Mount the module somewhere dry and out of the direct road spray, and you end up with trailer lighting that's protected the right way instead of tapped into circuits that were never meant to carry it.
Key Features
- T-One connector plugs into the vehicle's factory tow harness, no wire cutting or splicing
- Upgraded circuit-protected ModuLite HD module isolates the tow vehicle's wiring from trailer faults
- Powered converter draws from the battery instead of overloading the vehicle's light circuits
- Combines separate turn and brake signals into a standard 4-way flat trailer output
- Fused, circuit-protected output guards against trailer-side shorts
- Vehicle-specific design for a clean plug-and-play install
Why Buy from NVN Marine
- Authorized Tekonsha reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | T-One Connector Assembly With Upgraded Circuit Protected ModuLite HD Module |
|---|---|
| Brand | Tekonsha |
| Manufacturer Part Number | 118583 |
| UPC | 016118122473 |
| Connector Type | T-One (vehicle-specific plug-in) |
| Converter Module | Circuit-Protected ModuLite HD |
| Converter Type | Powered (battery-fed) |
| Output | 4-Way Flat |
| Circuit Protection | Yes |
| Installation | Plug-in, no splicing |
Frequently asked questions
Do I need to cut or splice any wires to install this?
No. The T-One connector plugs into a matching factory tow connector already in your vehicle's harness. It's a plug-and-play install for most folks, no wire stripping required.
What does the ModuLite HD module actually do?
It's a powered converter. It pulls power straight from the battery, combines your vehicle's separate turn and brake signals into a standard 4-way flat trailer signal, and sends it out through a circuit-protected output so a trailer short can't damage your vehicle's wiring.
Will this fit my vehicle?
It's a vehicle-specific harness, so it fits some years and models and not others. Send us your exact year, make, and model before ordering and we'll confirm the fit.
Why choose a powered converter over a simpler wiring kit?
A powered converter feeds the trailer lights from the battery instead of borrowing current from your vehicle's own light circuits. That keeps the vehicle's wiring and electronics out of harm's way and gives the trailer brighter, more reliable lighting.
What kind of trailer connector does this give me?
It provides a standard 4-way flat output, which is what most boat trailers, utility trailers, and small campers use for running lights, turn signals, and brake lights.

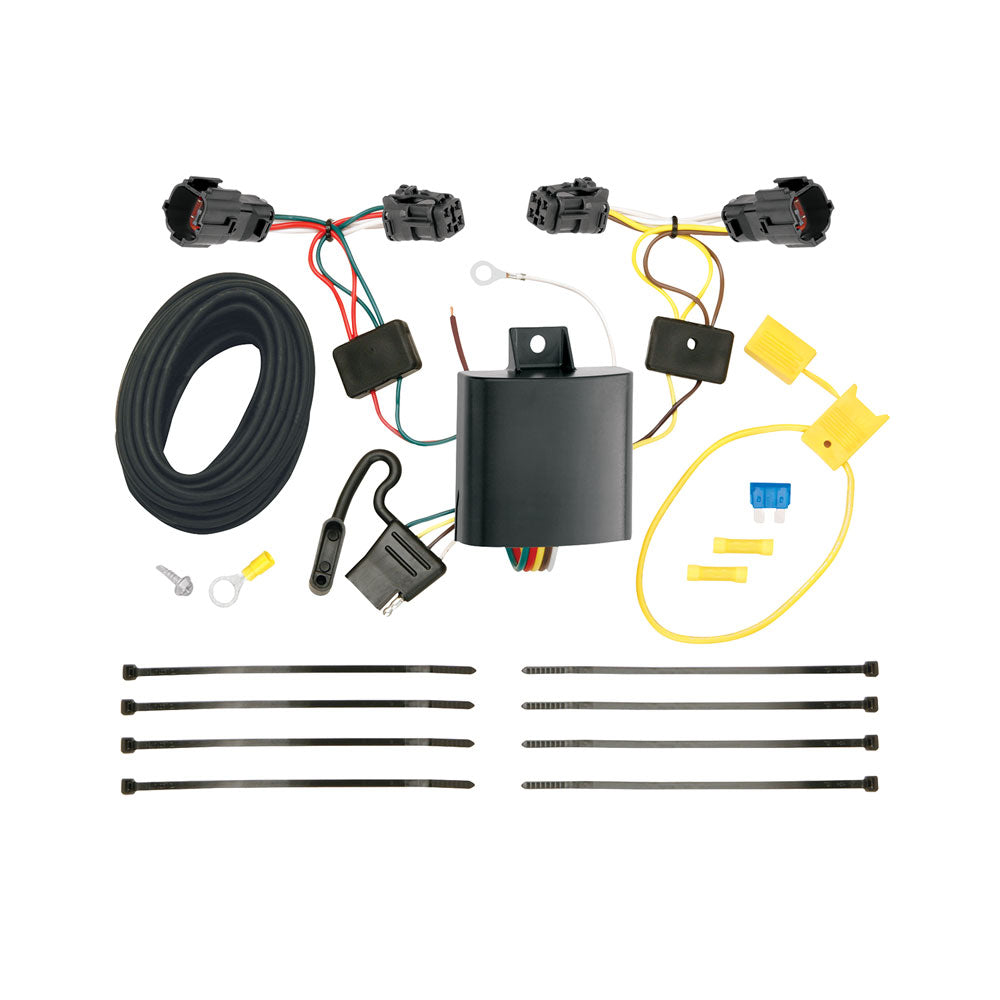

What's included in the box?
You get the T-One connector assembly and the upgraded circuit-protected ModuLite HD module, ready to plug in. This kit covers lighting functions and doesn't include a trailer brake controller.
