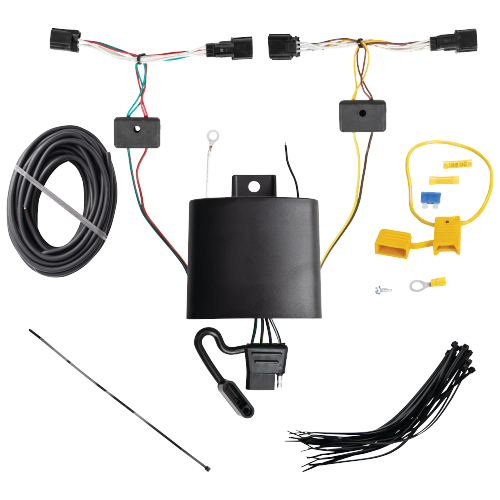

Tekonsha 118881 T-One Harness | 2023 Hyundai Palisade
Tekonsha 118881 T-One Harness | 2023 Hyundai Palisade — Product description
The Tekonsha 118881 is the plug-in T-One wiring harness for the 2023 Hyundai Palisade. It ties into the factory taillight harness without cutting a single wire, then runs your trailer lights through a circuit-protected ModuLite HD converter so a short at the trailer never reaches the vehicle's electronics.
If you're setting up your 2023 Hyundai Palisade to pull a small trailer, a teardrop camper, or a bike rack that needs lights, the Tekonsha 118881 is the harness that gets you there. It's a T-One connector, which means it plugs straight into the factory wiring behind the Palisade's taillights. No cutting, no splicing, no chasing down a ground you can't find. You plug it in, run the pigtail out, and you've got a 4-way flat ready for the trailer.
What sets this one apart from a bare T-connector is the circuit-protected ModuLite HD module built into it. That module is a powered converter. Instead of pulling all the current for your trailer lights through the vehicle's own light circuits, it draws power straight from the battery and uses the factory signals only to tell it when to switch the trailer lights on. That keeps the load off the Palisade's sensitive electronics and its bulb-out monitoring, which modern vehicles don't like having messed with.
The circuit protection is the part you'll appreciate the first time something goes wrong at the trailer. A pinched wire or a corroded socket that would normally pop a fuse or throw a fault gets isolated by the module instead. The trailer side takes the hit, and the tow vehicle stays clean.
Install is genuinely a driveway job. Pull the taillight access panel, find the factory connector, plug the T-One in line, mount the module somewhere dry, and route the 4-way flat to the hitch. Most folks are done in under an hour with basic hand tools. This harness is built for the 2023 Hyundai Palisade specifically, so if your Palisade is a different model year, check the fitment with us before you order. We'd rather get you the right harness the first time than have you fighting a connector that won't seat.
Key Features
- T-One plug-in connector taps the factory taillight harness on the 2023 Hyundai Palisade with no cutting or splicing
- Circuit-protected ModuLite HD converter isolates trailer faults so a short never reaches the vehicle's electronics
- Powered converter draws current from the battery, keeping trailer light loads off the factory circuits
- 4-way flat output connects to standard trailer plugs for running, brake, and turn signals
- Uses the vehicle's own factory signals to trigger the lights, so it works with modern bulb-out monitoring
- Driveway install with basic hand tools, typically under an hour
Why Buy from NVN Marine
- Authorized Tekonsha reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | T-One Connector With Circuit Protected ModuLite HD Module; With 4-Way Flat |
|---|---|
| Brand | Tekonsha |
| Manufacturer Part Number | 118881 |
| UPC | 016118165586 |
| Vehicle Application | 2023 Hyundai Palisade |
| Trailer Connector | 4-Way Flat |
| Converter Module | Circuit Protected ModuLite HD |
| Connection Type | T-One plug-in, no cutting or splicing |
| Converter Type | Powered (draws from vehicle 12V system) |
| Circuit Protection | Built-in |
Frequently asked questions
What does the 4-way flat connector on this harness power?
A 4-way flat carries the three basic trailer functions plus a ground: running and tail lights, left turn and brake, and right turn and brake. It's the standard for smaller trailers, utility trailers, and bike or cargo racks that don't have their own brakes.
What does the green wire on a 4-way flat connect to?
On a standard 4-way flat, green is the right turn and brake signal, yellow is the left turn and brake, brown is the running and tail lights, and white is the ground. The 118881 outputs this standard color code, so any 4-way flat trailer plug matches up.
Do I have to cut into my Palisade's factory wiring?
No. This is a T-One connector, so it plugs directly into the existing harness behind the taillights. There's no splicing and no scotch-locks. That keeps the factory wiring intact, which matters for warranty and resale.
Will it work with LED trailer lights?
Yes. The ModuLite HD is a powered converter, so it feeds the trailer lights from the vehicle battery rather than backfeeding through the factory circuits. That's exactly what LED trailer lights need to fire correctly, and it works with incandescent bulbs too.
What does 'circuit protected' actually do for me?
If something shorts out at the trailer, like a pinched wire or a corroded socket, the module isolates the fault instead of passing it back to the vehicle. The trailer side trips and your Palisade's electronics stay protected. It saves you from chasing blown fuses in the dash.
Is this the right harness for my Palisade?
It's built for the 2023 Hyundai Palisade. Tekonsha T-One harnesses are vehicle-specific, so if your Palisade is a different year or you're not sure, send us the year and trim and we'll confirm the fit before you order.
