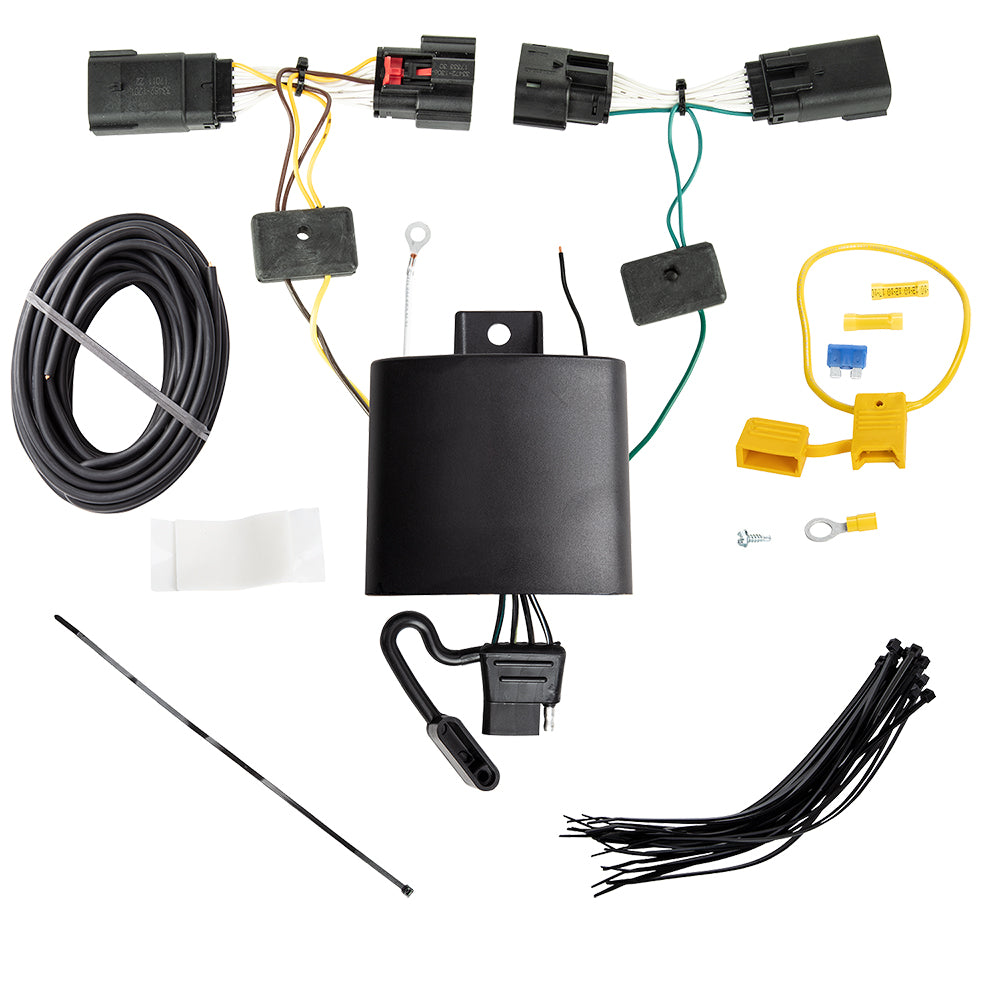

Tekonsha 118786 T-One ModuLite HD Trailer Wiring Harness

The Tekonsha 118786 T-One connector gets your tow vehicle talking to a trailer without you ever cutting into a factory wire. It's a plug-in harness built around a circuit-protected ModuLite HD module, and it ends in a standard 4-way flat plug. If you tow a boat trailer, a utility trailer, or a small cargo trailer, this is the clean way to add trailer lighting.

Here's how it goes together. Tekonsha designs each T-One harness to match a specific vehicle's factory wiring connector. You find that connector, usually tucked up behind a taillight or in the rear quarter of the vehicle, unplug it, slide the T-One in between, and plug everything back together. No test lights. No splicing. No soldering. Most installs take a few minutes once you've located the factory connector.

Why does the no-splice part matter so much? Because every splice is a future failure point. Taps corrode, crimps work loose, and a bad connection behind a taillight is miserable to chase down. The T-One sidesteps all of that by using the same style of sealed connectors your vehicle already runs. Plug it in and the connection is as solid as the factory's own.

The real work happens inside the ModuLite HD module. Instead of leaning on your vehicle's lighting circuits to carry the trailer's load, the module acts as a powered converter. It reads the signals coming off your vehicle, turn, brake, and tail, and sends clean power out to the trailer through its own protected circuit. That matters for two reasons. First, it keeps the extra draw of a trailer's bulbs off your factory wiring, so you're not stressing circuits that were never meant to run a trailer. Second, the HD module is circuit protected. If something on the trailer side shorts out, a pinched wire, a corroded socket, a submerged connector at the ramp, the protection trips instead of blowing a fuse or frying the module. It resets once you fix the fault.

The output is a 4-way flat, the most common trailer connector on the road. Those four wires cover your running lights, left and right turn signals, and brake lights. That's everything a boat or utility trailer needs for legal, safe towing after dark. One thing to be clear about. A 4-way flat doesn't carry a brake-control circuit or a charge line, so if your trailer has electric brakes you'll want a different setup. For the vast majority of single-axle boat and utility trailers, though, 4-way flat is exactly right.

We sell a lot of these to folks running boat trailers, and the circuit protection is the reason. The launch ramp is hard on trailer wiring. Connectors get dunked, lights take a beating, and corrosion creeps in over a season. A circuit-protected module means a wet or shorted trailer plug trips the protection instead of leaving you with a dead taillight circuit on the drive home. It's cheap insurance for a part of the rig that lives half its life underwater. Rinse your trailer plug after a saltwater launch, keep the pins greased, and a module like this will give you years of trouble-free towing.

This is a vehicle-specific harness, so it's built to drop into one particular factory connector. If you're not sure it's the right T-One for your vehicle, check the fit before you buy, and reach out to us if you want a hand matching it. And because the whole thing is one assembly, the module included, there's no separate converter box to find a home for and no loose grounds to chase. It's one piece, in and done. Once it's in, you've got a tidy, protected trailer connection that'll outlast a lot of cheaper splice-in kits.
