T-H Marine Stainless Worm Gear Hose Clamps 3/8-7/8" 2pk
T-H Marine Stainless Worm Gear Hose Clamps 3/8-7/8" 2pk — Product description

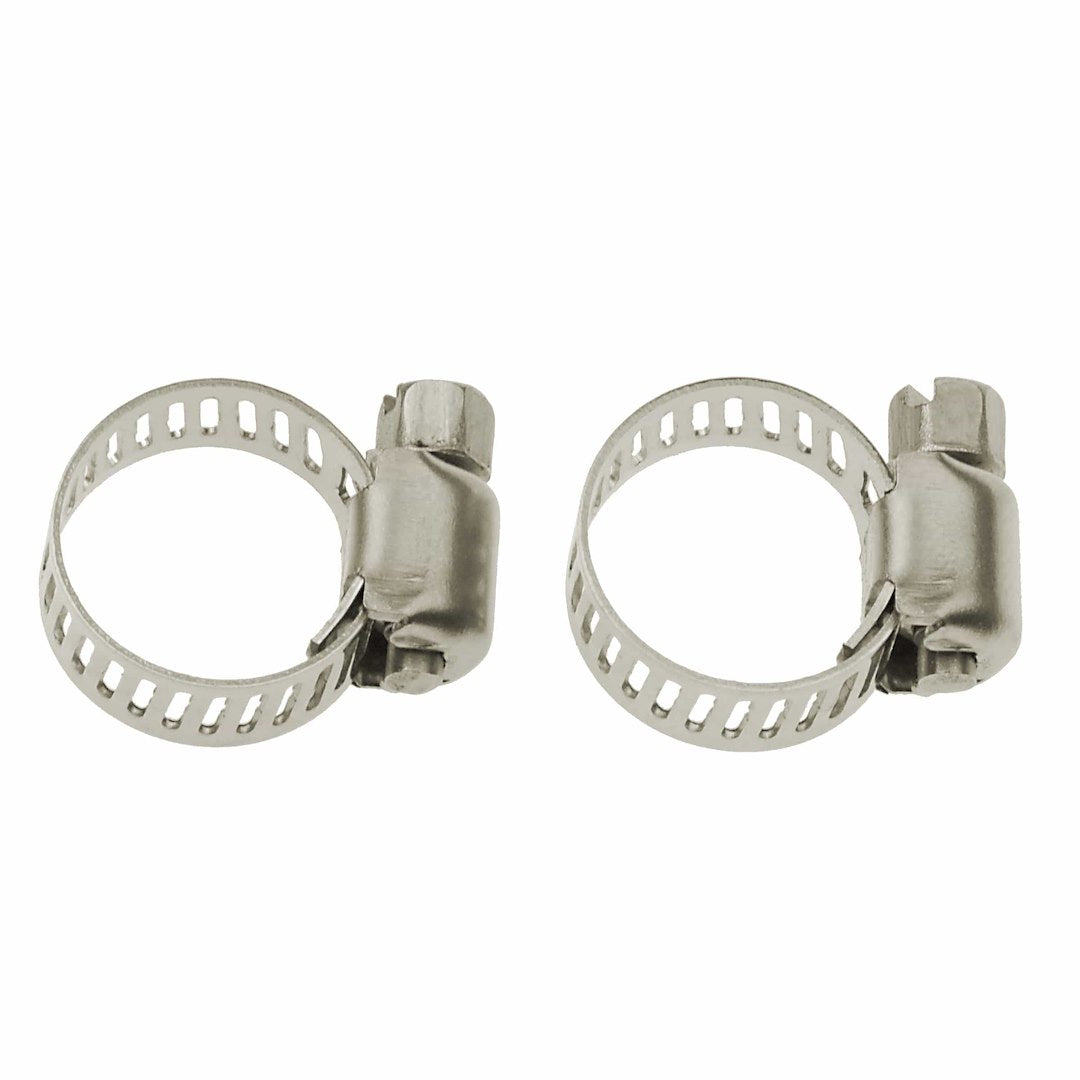

These are T-H Marine's stainless steel worm gear hose clamps, sized for a 3/8 to 7/8 inch clamping range and sold as a set of two. They're the small, everyday clamps that hold livewell, aerator, bilge, and washdown hose tight, and the stainless band shrugs off the salt and spray that eats cheaper hardware alive.
Every boat runs on hose. Livewell fill lines, aerator plumbing, bilge pump discharge, washdown feeds, scupper drains. All of it has to stay sealed, and the humble hose clamp is what keeps those connections from weeping or blowing off. This T-H Marine set gives you two stainless steel worm gear clamps with a 3/8 to 7/8 inch clamping range, which is the sweet spot for the small-diameter hose you find all over a center console, bass boat, or pontoon.
A worm gear clamp is the classic design you already know. A slotted stainless band wraps the hose, and a captive screw threads through those slots. Turn the screw and the band draws down evenly around the fitting. Back it off and the band opens up. It's simple, it's adjustable, and it holds. You don't need a special tool, just a flat screwdriver or a nut driver that fits the screw head, and you can snug it by hand in a tight bilge without fighting it.
The 3/8 to 7/8 inch range covers a lot of common marine plumbing. Think 1/2 inch inside-diameter aerator and livewell line, small bilge hose, baitwell overflow, scupper tubing, and the vent and feed lines on a lot of deck hardware. Measure the outside diameter of your hose where it sits over the barb, and if that number lands inside 3/8 to 7/8 of an inch, these clamps will close down on it. For anything bigger, you'll want a wider-range clamp.
Not sure what you've got? Pull one existing clamp and read the range stamped on the band, or wrap a tape around the hose and fitting and divide by pi to get the diameter. Most small boat plumbing lands right in this window, which is why a 3/8 to 7/8 inch clamp is one of the handiest sizes to keep aboard.
Here's where material matters. A boat is a brutal place for metal. Salt spray, bilge water, humidity, and the occasional dunk all gang up on cheap plated clamps, and a rusted clamp is a clamp that's about to fail. T-H Marine built these with a stainless steel band so they stand up to that abuse far longer than a zinc-plated clamp from the auto parts aisle. Rust streaks on your transom or down a livewell wall usually trace back to the wrong hardware. Stainless keeps things clean.
Installing them is quick. Slide the clamp over the hose before you push the hose onto the barb, then position it just past the barb's ramped end so the band sits over the solid part of the fitting. Snug the screw until the hose bites into the barb, but don't go gorilla on it. Overtightening can cut into softer hose or strip the band slots. A good clamp is tight enough that the hose won't twist off by hand, no more. Leave the screw head where you can reach it later, because you'll be back in there eventually.
You get two clamps in the set, which is handy. Most hose connections want a clamp on each end, so a pair does one full run, or you keep the second as a spare in the parts box. And you should keep spares. Clamps are the kind of small part you always need at the worst possible moment, usually at the ramp on a Saturday morning. Whether you're re-plumbing a livewell, chasing a bilge leak, or just upgrading tired hardware during spring commissioning, these are the clamps that quietly do the job.
One honest note. Worm gear clamps like these are made for low-pressure plumbing, the aerator, bilge, washdown, and drain hose that makes up most of a boat's wet side. They're not the right choice for high-pressure fuel injection or hydraulic lines, where your engine maker and ABYC guidelines call for specific fuel-rated clamps. Use the right clamp for the job, and for everything else on the boat's plumbing, this set has you covered.
Key Features
- 3/8 to 7/8 inch clamping range fits common small-diameter livewell, aerator, bilge, and washdown hose
- Worm gear drive tightens the band evenly with a flat screwdriver or nut driver, no special tool needed
- Stainless steel band resists rust and corrosion in salt spray and bilge conditions
- Set of 2 clamps, enough to do a full hose run with one on each end or keep a spare aboard
- Reusable and repositionable, back off the screw to move the clamp or pull it for service
- Compact worm gear body fits tight runs behind consoles and under decks
Why Buy from NVN Marine
- Authorized T-H Marine Supplies reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | T-H Marine Stainless Steel Worm Gear Hose Clamps, 3/8 to 7/8 Inch, Set of 2 |
|---|---|
| Brand | T-H Marine Supplies |
| Manufacturer Part Number | BE-PL-57204-DP |
| UPC | 733572185706 |
| Clamp Type | Worm Gear |
| Clamping Diameter Range | 3/8 in to 7/8 in |
| Minimum Clamp Diameter | 3/8 in |
| Maximum Clamp Diameter | 7/8 in |
| Band Material | Stainless Steel |
| Adjustment Method | Slotted band with worm screw |
| Quantity | 2 clamps per set |
| Application | Low-pressure hose and tube connections |
Frequently asked questions
What hose sizes does the 3/8 to 7/8 inch range cover?
It suits most small-diameter marine plumbing, like 1/2 inch inside-diameter aerator and livewell line, small bilge hose, baitwell overflow, and scupper tubing. Measure the outside diameter of your hose where it sits over the barb. If it lands between 3/8 and 7/8 of an inch, these clamps will close down on it.
Are these okay for saltwater use?
Yes. The band is stainless steel, so it stands up to salt spray, bilge water, and humidity far better than a zinc-plated clamp from the auto parts aisle. Stainless is what keeps rust streaks off your transom and livewell walls.
What is a worm gear clamp?
It's the classic adjustable clamp design. A slotted band wraps the hose and a captive screw threads through the slots. Turning the screw draws the band down evenly around the fitting. Back it off and the band opens up for removal or repositioning.
How many clamps come in the set?
Two. Most hose connections want a clamp on each end, so a pair handles one full run, or you keep the second as a spare in the parts box.
Can I use these on fuel lines?
These are made for low-pressure plumbing like aerator, bilge, washdown, and drain hose. For fuel systems, follow your engine maker's spec and ABYC guidelines, which call for specific fuel-rated clamps. Use the right clamp for that job.
What tool do I need to tighten them?
Just a common driver. A flat-blade screwdriver works, and a nut driver that fits the screw head is even easier in a tight bilge. You can snug them by hand, no special tool required.
Where do these get used on a boat?
All over the wet side. Livewell and aerator plumbing, small bilge pump hose, washdown feeds, baitwell overflow, scupper drains, and the feed and vent lines on deck hardware. Anywhere small hose meets a barbed fitting.
Can I reuse them?
Yes. Back the screw off and the band opens up so you can reposition the clamp or pull it for service, then snug it back down. Just don't overtighten, since forcing the screw can strip the band slots over time.
