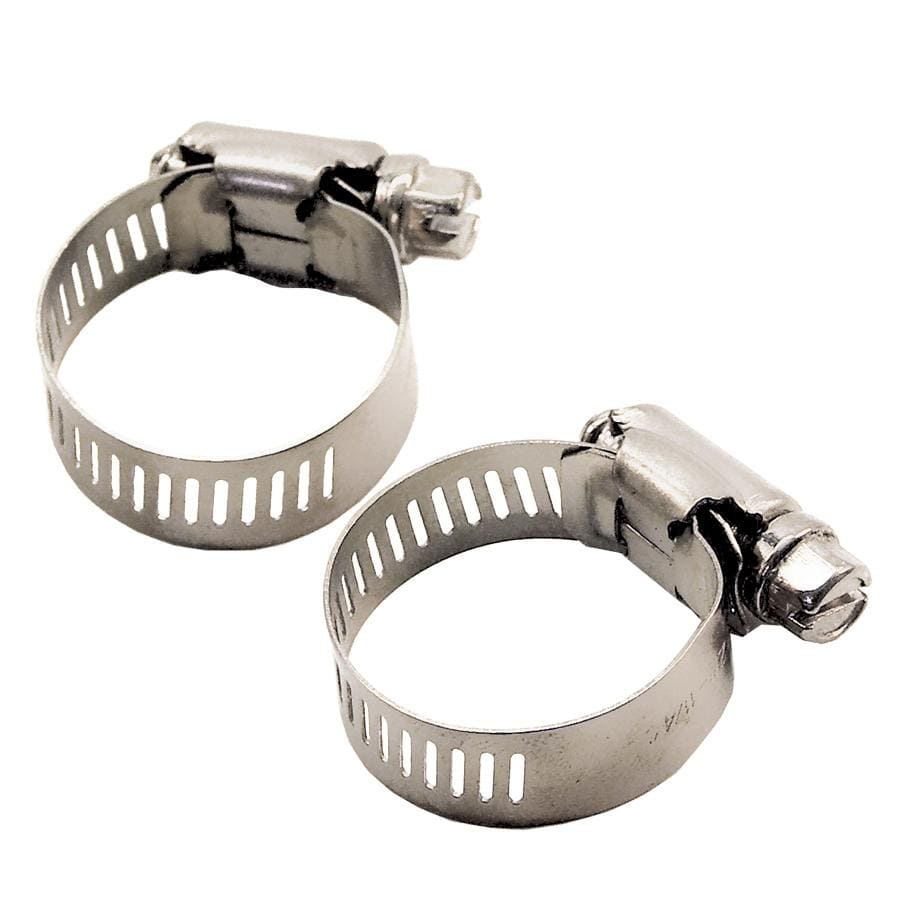

T-H Marine Stainless Worm Gear Hose Clamps 1/4-5/8" 2pk
T-H Marine Stainless Worm Gear Hose Clamps 1/4-5/8" 2pk — Product description
T-H Marine's stainless steel worm gear hose clamps give you a clean, corrosion-resistant way to lock down small hoses and lines on your boat. This set covers a 1/4 inch to 5/8 inch clamping range and comes as a pair, so you've got a spare ready for the next job. Simple worm-drive screw, dialed to exactly the tension you want.
Every boat has a dozen small hoses doing quiet, important work. The fuel line running to the primer bulb. The feed hose on a livewell pump. A bilge discharge line, washdown plumbing, the little low-pressure runs you forget are even there until one of them starts to weep. When a connection slips or seeps, you want a clamp that holds and doesn't rust out on you a season later. That's what this pair of T-H Marine worm gear clamps is for.
The clamping range is 1/4 inch to 5/8 inch, so these fit the small-diameter hose you run into most on a rigging job. Think aerator and livewell lines, small fuel line, bilge and washdown hose, and the kind of low-pressure plumbing that lives behind the console and under the deck. You tighten them with a worm-drive screw. The band pulls down evenly around the hose and you dial in exactly the tension you want. Back the screw off and the clamp opens right back up, so they're easy to reposition or reuse.
They're stainless steel, which is the whole point on a boat. Saltwater and spray eat plated-steel clamps alive. Stainless holds up to the wet, salty, humid life down in the bilge and behind the livewell a lot longer. Keeping your below-deck connections on stainless hardware is cheap insurance against a slow leak you won't catch until it's already a problem. And it keeps that rust-streak look off your rigging.
You get two clamps in the set. That's handy, because small-hose jobs tend to come in pairs. Both ends of a run. A supply and a return. Or one on the job and one in the spares box for the next time something lets go at the worst possible moment, which on a boat is the only time things let go. Keep a couple of these in your onboard kit and you'll reach for them more than you'd think.
Picking the right clamp is mostly about matching the band to your hose's outside diameter once it's seated over the barb. You want the clamped diameter to land comfortably inside the 1/4 inch to 5/8 inch range, not way out at the end of its travel. If your hose sits right at 5/8 inch or a touch bigger, step up to the next size clamp instead of maxing this one out. A clamp working in the middle of its range seats better and holds its tension longer than one cranked to its limit.
Installation is straightforward. Slide the clamp onto the hose before you push the hose onto the fitting. Seat the hose fully onto the barb, then position the clamp over the barb's ridge and not past the end of it. Snug the screw until the band bites into the hose, then give it just a bit more. Don't go gorilla on it. Overtightening a small clamp can cut into soft hose or strip the worm screw, and snug-and-secure beats crushed every time. Check it again after the first few runs, since hose relaxes a little once it's seen some pressure and heat.
One honesty note. This is a general-purpose worm gear clamp sized for small hose. It's a solid, corrosion-resistant pick for the everyday low-pressure connections all over your boat. For high-pressure hydraulic lines, or anything where a failure turns into a safety issue, use the clamp spec'd for that system. And always size your clamp to the actual hose in front of you, not just to whatever's left in the drawer.
T-H Marine has been building boat rigging and plumbing hardware for decades, and this is the kind of simple, do-it-right part that reflects it. Two stainless clamps. A genuinely useful size range. No drama. Toss a set in your rigging kit and get back on the water.
Key Features
- 1/4 inch to 5/8 inch clamping range covers the small fuel, livewell, bilge, and washdown hose you rig most often
- Stainless steel construction resists saltwater and spray corrosion down in the bilge and behind the livewell
- Worm-drive screw lets you dial in exact tension and back it off to reposition or reuse the clamp
- Set of 2 clamps, so you've got both ends of a run covered or a spare waiting in the kit
- Even band pull seats the hose squarely on the barb for a clean, leak-free connection
- Low-profile worm gear design fits the tight spots behind the console and under the deck
- T-H Marine rigging hardware, built for life on the water
Why Buy from NVN Marine
- Authorized T-H Marine Supplies reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | T-H Marine Stainless Steel Worm Gear Hose Clamps, 1/4" to 5/8", Set of 2 |
|---|---|
| Brand | T-H Marine |
| Manufacturer Part Number | BE-PL-57202-DP |
| UPC | 733572185638 |
| Clamp Style | Worm gear |
| Material | Stainless steel |
| Clamping Range | 1/4 in. to 5/8 in. |
| Minimum Clamping Diameter | 1/4 in. |
| Maximum Clamping Diameter | 5/8 in. |
| Quantity | 2 clamps (one pair) |
| Fastener Type | Hose clamp |
| Adjustment Method | Worm-drive screw |
Frequently asked questions
What size hose do these clamps fit?
They cover a 1/4 inch to 5/8 inch clamping range, which suits most small-diameter boat hose like aerator and livewell lines, small fuel line, and small bilge or washdown plumbing. Match the clamped diameter to your hose's outside diameter once it's seated over the barb.
How many clamps come in the set?
Two. You get a pair, which is handy for both ends of a hose run or for keeping a spare in your rigging kit.
Are these really stainless steel?
Yes. The clamps are stainless steel, which holds up to saltwater, spray, and the humid life below deck far better than plated-steel clamps that streak and rust.
What is a worm gear clamp?
It's the common adjustable clamp style where a slotted screw engages the band. Turn the screw and the band tightens evenly around the hose. Back it off and it opens right back up.
How do I tighten them?
Slide the clamp on before you seat the hose, position it over the barb, then snug the worm screw with a screwdriver or nut driver until the band bites in. Don't overtighten. Snug and secure is the goal, not crushed.
Can I reuse them?
In most cases, yes. Because the worm screw backs all the way off, you can loosen, reposition, or remove and reinstall the clamp as long as the band and screw are still in good shape.
Will these work on fuel line?
They're a general-purpose stainless worm gear clamp and work on small fuel line that falls within the size range. For any system where a failure is a safety issue, confirm the clamp meets that system's requirement before you rely on it.
My hose measures right at 5/8 inch. Should I use this clamp?
If you're at the very top of the range, step up to the next size instead. A clamp working in the middle of its range seats better and holds its tension longer than one maxed out at the limit.
What's the manufacturer part number?
It's BE-PL-57202-DP from T-H Marine, and the UPC is 733572185638.
