T-H Marine Spring Snap Hook, 3-1/8 in Zinc, 168 lb SWL
T-H Marine Spring Snap Hook, 3-1/8 in Zinc, 168 lb SWL — Product description

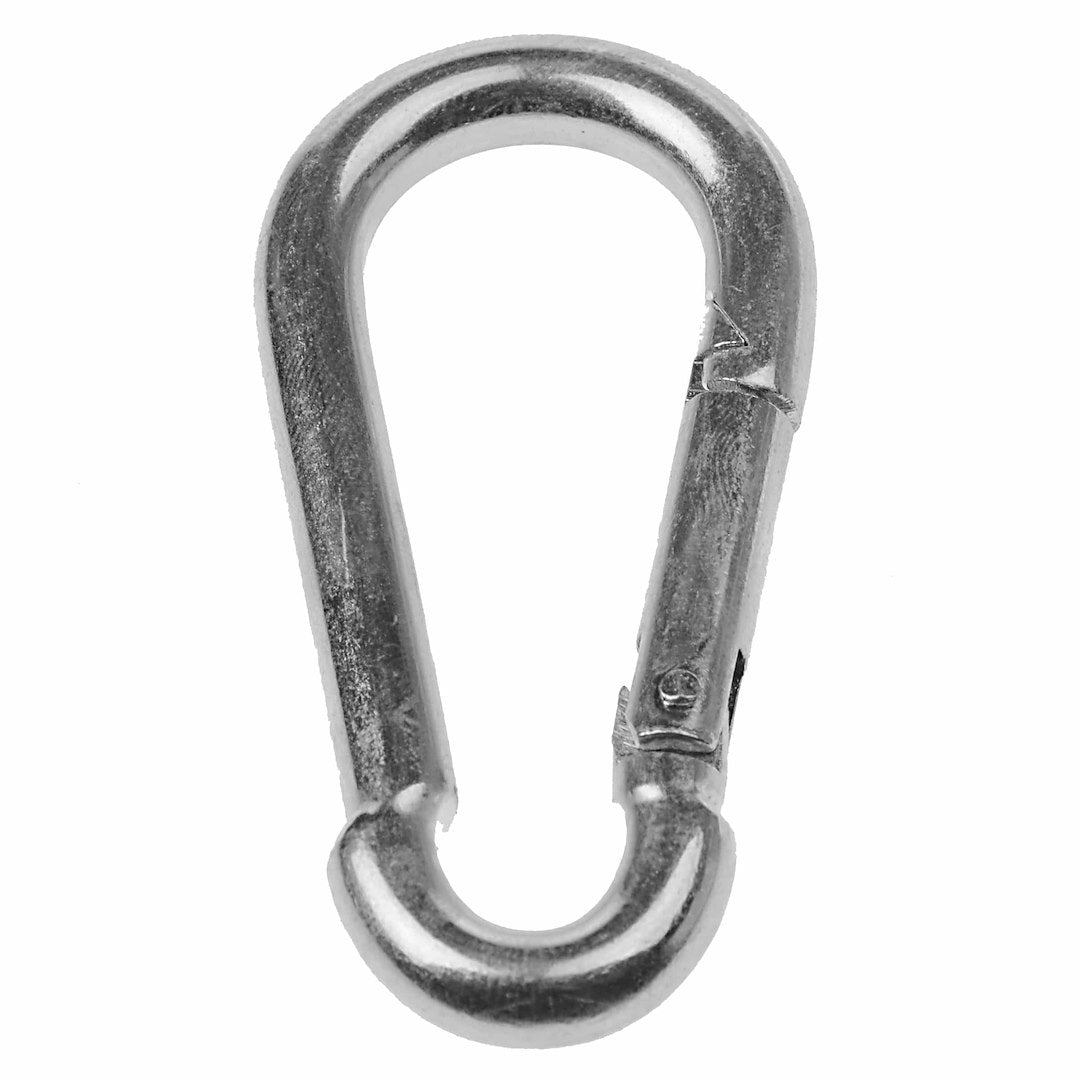

The T-H Marine spring snap hook is a gourd-shaped, zinc-plated safety hook with a self-closing spring gate. At 3-1/8 inches with an 840 pound breaking strength and a 168 pound safe working load, it handles everyday clipping and securing jobs all over the boat, from cover straps to fender lines. Simple, dependable, and cheap enough to keep a few on hand.
This little zinc-plated spring snap hook from T-H Marine is one of those parts you don't think about until you need one, and then you need three. It's a gourd-shaped safety hook with a self-closing spring gate, 3-1/8 inches long, built for the everyday clipping, securing, and quick-connect jobs that come up all over a boat. Nothing fancy here. Just a dependable snap that does its job and gets out of the way.
Here's what you're actually buying. The hook carries an 840 pound breaking strength and a 168 pound safe working load. That gap matters, so it's worth a minute. Breaking strength is the load at which the metal finally gives up. Safe working load is what you should actually rig it for, day in and day out, with a healthy margin built in. T-H Marine rates this one at a 5 to 1 safety factor, which is where that 168 pound number comes from. Plan your rigging around it and you've got room to spare.
The gate is spring loaded and self-closing. Push a line, a ring, or a D-ring into the throat and the gate snaps shut behind it. Let go and it stays put. That's the whole point of a spring snap over a plain open hook. It won't walk off the attachment point when the boat's slamming through chop or a line goes slack and snaps tight again. And it's one-handed, which you'll appreciate the moment your other hand is busy holding a cover or a fender.
The gourd shape is that pinched, figure-eight profile. Wider throat at the hook end, narrower eye up top. In practice that means it clips onto larger rings and bails cleanly while keeping a compact tail for whatever line or shackle you're tying off to. The eye takes a split ring, a shackle, or a knot without binding, and it sits flat against a strap instead of flopping around.
The finish is zinc plating over steel. Zinc gives you real corrosion resistance for freshwater boats, trailer rigging, dock carts, cover straps, and any gear that sees spray but gets rinsed and stored dry. Now some straight talk, because we'd rather you buy the right part once. Zinc-plated steel isn't stainless. If you clip this somewhere it sits in salt spray day after day with no rinse, it'll eventually show surface rust. For permanent saltwater exposure like that, a stainless snap is the better call. For everything else, this one holds up fine and costs a fraction of the price.
So where does it earn its keep? Cover and canvas tie-downs, bimini straps, fender lines, flag halyards, safety lanyards, gear bags, ditch bags, and about a hundred little clip-this-to-that moments a season. Keep a couple in the console drawer and a couple in the rigging bag. They disappear into a tackle bag and weigh next to nothing. They're cheap enough to stage all over the boat and handy enough that they never go to waste.
A quick word on sizing. At 3-1/8 inches this is a mid-size snap. Big enough to grab with cold hands and clip onto a decent ring, small enough that it isn't clunky hanging off a strap. If you ever find yourself loading it past that 168 pound working number, step up to a larger snap or a properly rated shackle instead. A snap hook is a quick-connect, not a lifting point, and it isn't built to take shock loads up at its breaking limit.
There's nothing to install. It's grab-and-go. If you want to match this exact size and rating down the road, the manufacturer part number is BE-HA-54330-DP. And because it's a standard T-H Marine rigging piece, it works right alongside the rest of your dock lines, bungees, and deck hardware.
Little parts like this are easy to overlook until the one you've got lets go at the worst time. A good spring snap is cheap insurance. This one gives you a clear load rating, a gate that actually stays closed, and a finish that shrugs off the usual freshwater wear. Buy a few, stash them where you'll reach for them, and forget about it.
Key Features
- Spring-loaded, self-closing gate keeps lines, rings, and D-rings captured even through chop and slack-load cycles
- 840 lb breaking strength with a 168 lb safe working load, a 5 to 1 safety factor for everyday rigging
- 3-1/8 inch length, a mid-size snap that's easy to grab one-handed yet compact on a strap
- Gourd-shaped profile gives a wider hook throat and a narrow eye for clean tie-offs
- Zinc-plated steel resists corrosion on freshwater boats, trailers, and rinsed-and-stored gear
- One-handed operation for quick clip-and-go jobs when your other hand is full
- Manufacturer part number BE-HA-54330-DP for easy reordering of this exact size and rating
Why Buy from NVN Marine
- Authorized T-H Marine Supplies reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | T-H Marine Gourd Spring Snap Hook, 3-1/8 in, Zinc Plated |
|---|---|
| Brand | T-H Marine Supplies |
| Manufacturer Part Number | BE-HA-54330-DP |
| UPC | 733572185218 |
| Gate Type | Spring Loaded |
| Shape | Gourd Shaped |
| Overall Length | 3-1/8 in |
| Material | Steel |
| Finish | Zinc Plated |
| Breaking Strength | 840 lb |
| Safe Working Load | 168 lb |
| Safety Factor | 5:1 |
Frequently asked questions
What's the difference between the 840 pound breaking strength and the 168 pound safe working load?
Breaking strength is the load at which the hook finally fails. Safe working load is what you should actually rig it for day to day. T-H Marine builds in a 5 to 1 safety factor, so 168 pounds is your real-world limit with margin to spare.
Is this snap hook rated for saltwater?
It's zinc-plated steel, which holds up well in freshwater and for gear that gets rinsed and stored dry. For constant saltwater exposure without rinsing, it'll eventually surface rust, so a stainless snap is the better pick there.
How does the spring gate work?
The gate is spring loaded and self-closing. You push your line or ring through the throat, the gate snaps shut behind it, and it stays captured until you open it again. One-handed and quick.
How long is the hook?
It measures 3-1/8 inches overall, a mid-size snap that's easy to handle without being clunky on a strap.
What does gourd shaped mean?
It's the pinched, figure-eight profile with a wider throat at the hook end and a narrower eye up top. It clips onto larger rings while keeping a compact tail for your line or shackle.
What can I use it for on the boat?
Cover and canvas tie-downs, bimini straps, fender lines, flag halyards, safety lanyards, gear and ditch bags, and any quick clip-this-to-that job. It's handy enough to keep a few staged around the boat.
Can I use it as a lifting hook?
No. A spring snap is a quick-connect, not a rated lifting point. Keep loads under the 168 pound working limit and avoid shock loads near the breaking strength.
What's the part number if I want to reorder the same one?
It's T-H Marine part number BE-HA-54330-DP, which gives you this exact 3-1/8 inch size and the 840 and 168 pound ratings.
Does it need any installation?
None. It's a grab-and-go part. Clip it where you need it and you're done.
