T-H Marine 4-Way Flat Trailer Wire Connector, 24 in

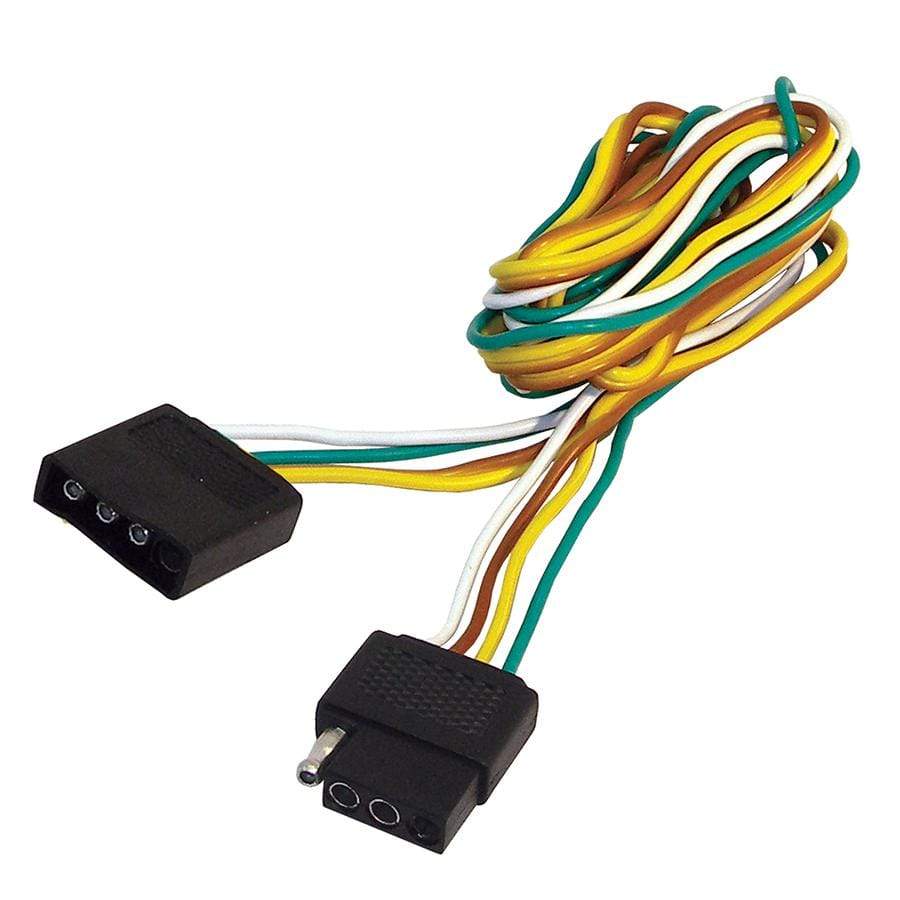

If you've ever crawled under a boat trailer with a test light trying to figure out why the left blinker quit, you know trailer wiring is where a lot of good weekends go sideways. This T-H Marine 4-Way Flat Trailer Wiring Connector gives you a clean, color-coded way to extend or repair the lighting hookup between your tow vehicle and your trailer. It's a 24-inch run with a 4-pole male plug on one end and a 4-pole female socket on the other, so it drops inline wherever you need more reach or a fresh set of ends.

The 4-way flat is the workhorse of light-duty trailering. It carries the three lighting functions just about every boat, utility, and small cargo trailer needs: running and tail lights, left turn and brake, right turn and brake, plus a ground. If your trailer runs its lights off the tow vehicle and doesn't have electric brakes, this is almost certainly the plug hanging off your bumper. Four wires, four pins, done.

T-H Marine built this one to be flexible. Run it as a straight 24-inch extension when your existing harness comes up a little short, or cut it to the exact length you need and splice it into a repair. The wires are color coded to the standard 4-way layout, so matching functions is straightforward. White is your ground, brown runs the tail and running lights, yellow handles the left turn and brake, and green takes the right turn and brake. Match color to color and you're not guessing.

Boat trailers are hard on wiring. You back them down a ramp, dunk the whole rig in fresh or salt water, then let it bake in the sun. That cycle corrodes cheap connectors fast. When we rig one of these, we pack the pins with dielectric grease before we plug them together, and we zip-tie the connector up off the ramp spray where we can. A little prep like that is the difference between lights that work all season and a connector that greens up by July.

Before you hit the road, run a quick function check. Have someone work the tow vehicle's lights while you walk the trailer: left blinker, right blinker, brakes, then the running lights with the headlight switch on. If one function is dead, the color coding makes it easy to trace. A cheap circuit tester on each pin tells you in seconds whether the problem is upstream in the connector or downstream in a trailer light. More often than not on an older trailer, it's a tired ground, and this connector's dedicated white ground wire gives you a clean place to start.

This is the right part if you're extending a short factory harness, replacing a connector that's seen better days, or wiring up a new light-duty trailer from scratch. It is not a brake controller hookup. A 4-way flat carries lights and ground only, so if your trailer has surge or electric brakes that need their own circuit, you'll want a 5-way or 7-way setup instead. For the vast majority of single and tandem-axle boat trailers running LED or incandescent lights, though, the 4-way is exactly what you want.

Installation is about as simple as trailer wiring gets. Plug the male end into your tow vehicle's trunk-side connector, route the 24-inch lead cleanly so it isn't dragging or pinched, and plug the female end into the trailer harness. If you're splicing instead of plugging, strip back the color-coded wires, join like to like with heat-shrink butt connectors, and seal everything up. Twelve volts DC, four functions, color coded end to end. It's a small part, but getting your trailer lights right keeps you legal and keeps the boat behind you visible to everyone sharing the road on the way home from the lake.
