Springfield Springlock SU Stand-Up Fishing Seat Package
Springfield Springlock SU Stand-Up Fishing Seat Package — Product description

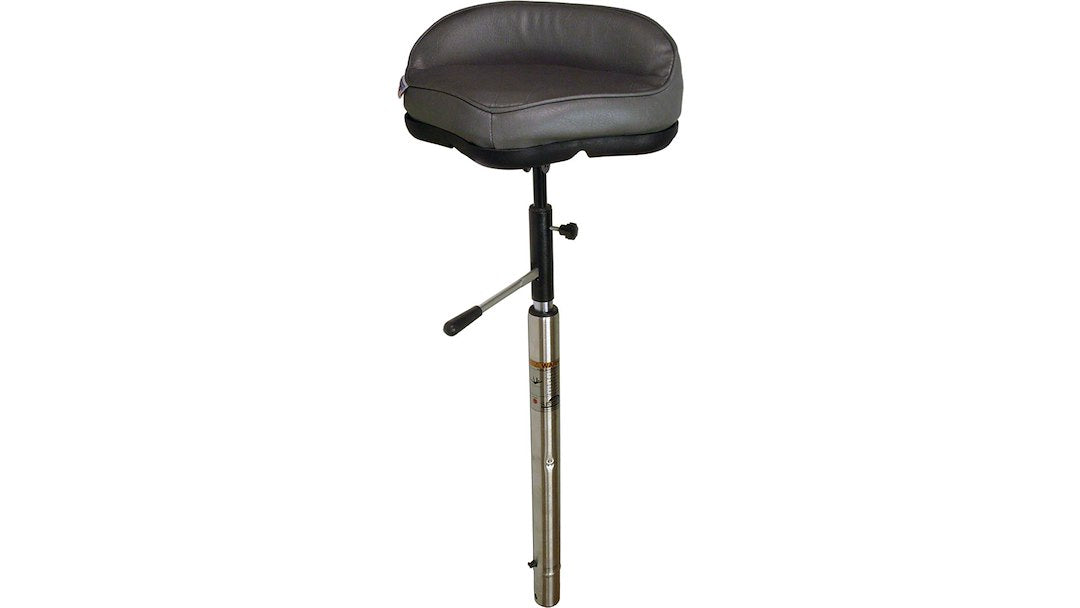

The Springfield Springlock SU is a complete stand-up fishing seat package, seat, Power-Rise gas post, and Quik-Tilt mount in one part number. It adjusts from 25-1/2 to 32-1/2 inches and rides on gray marine-grade vinyl. Built for anglers on center consoles and bay boats who go from sitting to standing all day long.
Springfield Marine has been building boat seating longer than most of us have been fishing, and the Springlock SU package is a good example of why anglers keep coming back. This is a complete stand-up fishing seat setup, the seat, the Power-Rise stand-up post, and the Quik-Tilt seat mount, all in one part number. You bolt it to the deck, drop the post in, and you've got a seat that carries you from a low relaxed sit to a full stand-up fighting position.
The seat itself is finished in gray marine-grade vinyl over a foam cushion. There's no headrest on this one, which keeps the profile low and out of the way when you're working a rod. The whole assembly adjusts in height from 25-1/2 inches all the way up to 32-1/2 inches, so you can set it where your legs and your gunwale height want it. On a 20 to 24 foot center console that range covers most anglers comfortably. On a low-freeboard skiff you may find it sits taller than you'd like, so measure your deck-to-gunwale height before you order.
The heart of the package is the Power-Rise post. It's a gas-assisted stand-up post, so raising and lowering the seat takes almost no effort. You tap the release and it comes up smooth. That matters when you're fighting a fish and want to get up off the seat fast, or when you've been standing for an hour and your legs are telling you to sit. The Quik-Tilt mount lets the seat pivot on its base, so you can swing it out of the way for casting room or turn to follow a fish around the boat.
It's rated to ABYC Class H-31 B. That's the recreational boat standard for seat and mount strength, so you know the post and base are engineered to hold up to a real angler leaning, pulling, and shifting weight, not just sitting still. The lock is mild steel, which is plenty strong. Worth knowing up front: mild steel isn't stainless. If you run saltwater, give the hardware a fresh-water rinse after a trip and keep an eye on the lock and any exposed fasteners. A little care keeps the rust off. Plenty of saltwater guys upgrade the deck bolts to stainless when they mount it, which isn't a bad idea.
Speaking of mounting, this is a stand-up post, so it puts real load on the deck when you lean and pull against it. If your deck is solid glass or has a proper backing structure, you're fine. If it's a thin cored floor, put a backing plate under it so the load spreads out and you don't get flex or a soft spot over time. It's a ten-minute job at install and it saves you headaches later.
The seat is non-foldable, so plan your storage. It doesn't collapse flat for a hatch or a locker. A lot of owners just pull the seat off the post when they're not using it or when they're storing the boat for winter, since the Quik-Tilt mount makes that quick. If you need the deck fully clear for a cast net or a cooler, popping the seat off is the move.
The gray vinyl and foam cushion are comfortable and easy to wipe down, but like any marine upholstery they'll last longer with a little protection. Constant direct sun is hard on vinyl over the years, so a seat cover when the boat's parked keeps the color and the seams looking new. Wipe salt and sunscreen off the cushion now and then and it'll hold up season after season.
So who's this for? Anglers on center consoles, bay boats, and bass rigs who want a real stand-up seat that carries them through a long day. The gas post and tilt mount are the features that separate a setup like this from a plain fixed pedestal seat. If you spend your day going from sitting to standing and back, over and over, that Power-Rise post pays for itself in comfort. If you just want a fixed seat that never moves, this is more seat than you need. But for working anglers, it's a comfortable, well-built package from a name that's been doing marine seating for decades.
Key Features
- Adjustable height from 25-1/2 to 32-1/2 inches to match your gunwale and leg height
- Power-Rise gas-assist post raises and lowers the seat with a light tap of the release
- Quik-Tilt seat mount pivots the seat out of the way for casting room and quick removal
- Gray marine-grade vinyl over a foam cushion, easy to wipe down and comfortable through a long day
- Rated ABYC Class H-31 B for recreational boat seat and mount strength
- Non-foldable stand-up design keeps a low profile while you work a rod
- Mild steel lock holds the seat position securely
- Without headrest for an unobstructed, low-profile seat back
- Complete package includes the seat, Power-Rise stand-up post, and Quik-Tilt mount in one part number
Why Buy from NVN Marine
- Authorized Springfield Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Springfield Springlock SU Stand-Up Fishing Seat Package |
|---|---|
| Brand | Springfield Marine |
| Manufacturer Part Number | 1641037 |
| UPC | 038132917941 |
| Seat Type | Stand-Up Fishing Seat |
| Height Adjustment | 25-1/2 in to 32-1/2 in |
| Color | Gray |
| Upholstery | Marine Grade Vinyl with Foam Cushion |
| Headrest | Without Headrest |
| Foldable | Non-Foldable |
| Lock Material | Mild Steel |
| ABYC Rating | Class H-31 B |
| Post | Power-Rise Stand-Up Post |
| Seat Mount | Quik-Tilt Seat Mount |
| Package Contents | Stand-Up Seat, Power-Rise Stand-Up Post, Quik-Tilt Seat Mount |
Frequently asked questions
What comes in the package?
You get three pieces in one part number: the stand-up fishing seat, the Power-Rise stand-up post, and the Quik-Tilt seat mount. It's a complete setup ready to bolt to your deck.
How much does the seat height adjust?
The seat adjusts in height from 25-1/2 inches up to 32-1/2 inches, so you can set it where your legs and your gunwale height want it.
Does the seat fold down for storage?
No, this one is non-foldable, so it won't collapse flat for a hatch. A lot of owners pull the seat off the Quik-Tilt mount when they need the deck clear or when they're storing the boat, which takes just a moment.
What boats is this seat right for?
It's a good fit for center consoles, bay boats, and bass rigs in the 20 to 24 foot range. On a low-freeboard skiff the height range can sit taller than you'd like, so measure your deck-to-gunwale height before you order.
Is the hardware okay for saltwater?
The lock is mild steel, not stainless. It's plenty strong, but in saltwater you'll want to rinse the hardware with fresh water after a trip and keep an eye on exposed fasteners. Some owners swap the deck bolts to stainless at install for extra peace of mind.
What does ABYC Class H-31 B mean?
ABYC Class H-31 B is the recreational boat standard for seat and mount strength. It means the post and base are engineered to handle a real angler leaning, pulling, and shifting weight, not just sitting still.
Do I need a backing plate to mount it?
If your deck is solid glass or has proper backing, you're fine to bolt it down. On a thin or cored floor, add a backing plate underneath so the load from the stand-up post spreads out and you don't get flex or a soft spot over time.
Does it come with a headrest?
No, this model comes without a headrest. That keeps the seat back low and out of the way when you're casting or working a fish.
What does the Power-Rise post do?
The Power-Rise post is gas-assisted, so raising and lowering the seat takes almost no effort. Tap the release and it comes up smooth. It's the feature that makes going from a sit to a full stand-up position easy, over and over, through a long day.
