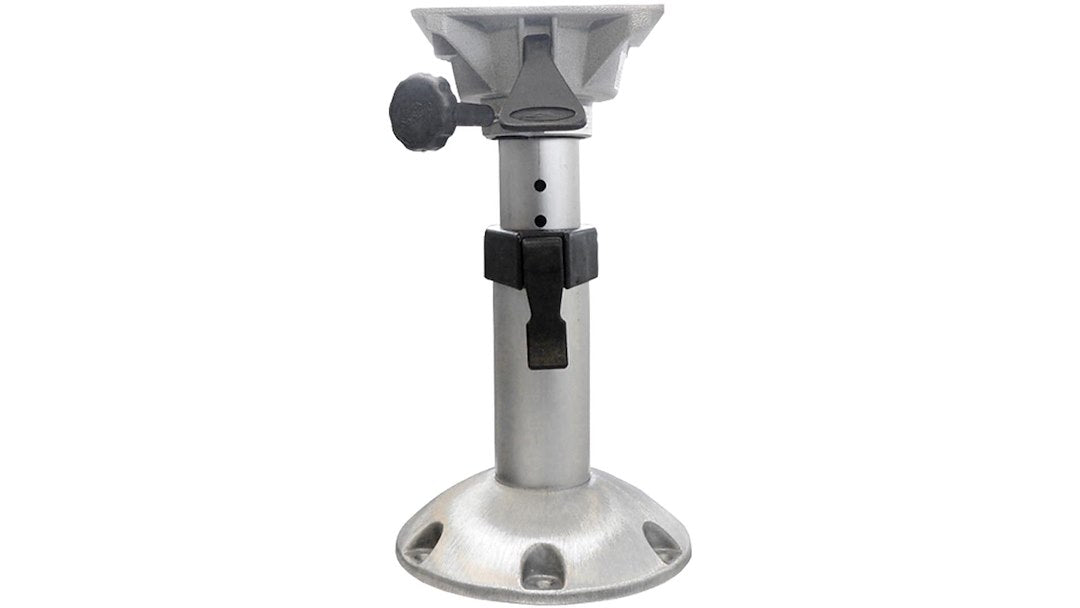

Springfield Marine Adjustable Height Boat Seat Pedestal 2-3/8 in.
Springfield Marine Adjustable Height Boat Seat Pedestal 2-3/8 in. — Product description
Springfield Marine's adjustable-height pedestal gives you a manually adjustable anodized aluminum post that dials your helm or console seat anywhere from 13-3/8 to 16-5/8 inches. It's built around the common 2-3/8 inch post size and carries the ABYC H-31 AD seating rating, so it drops into a lot of existing boats.
If you've ever spent a long day at the helm with your knees crammed under the wheel or your sightline just a hair too low over the console, you already know why seat height matters. This Springfield Marine adjustable-height pedestal lets you set the post anywhere from 13-3/8 inches up to 16-5/8 inches, so you can find the spot that actually works for how you drive and how you fish.
The adjustment is manual, which we like. There's nothing to wire in, no air line to leak, no motor to fail two seasons down the road. You lift, you set the height you want, and you go. It's the kind of simple that lasts on a boat.
The post is 2-3/8 inch anodized aluminum. That 2-3/8 inch diameter is one of the most common sizes out there, so this pedestal fits a lot of standard seat bases and spider mounts already sitting on center consoles, bay boats, and runabouts. If your current base is the older 2-7/8 inch size, you'll want an adapter or a matching base before this drops in. Measure your existing post before you order and you'll save yourself a return.
Anodizing matters more than people think. Bare aluminum on a saltwater boat pits and chalks fast. The anodized finish on this post shrugs off spray and holds up to the sun far better than a raw or painted post. Give it a fresh-water rinse when you rinse the rest of the boat and it'll stay looking sharp for years. Skip the rinse in a salt environment and you'll eventually see some white oxidation, same as any aluminum hardware.
This pedestal carries Springfield's ABYC Code H-31 AD rating. H-31 is the American Boat and Yacht Council standard for seating structures, and the AD designation covers adjustable seat assemblies. In plain terms, it's been engineered and tested to the same seating-strength standard the boatbuilders design to. That's the difference between a seat post you trust in a following sea and one you don't.
Install is straightforward for anyone comfortable with a drill and a socket. The base bolts down to your deck or a seat box. On a cored deck, back the fasteners with a plate or large fender washers so you're not loading the core directly. It's a five-minute step that prevents the crazing and soft spots that show up years later around under-mounted hardware. After the first few hours on rough water, pop back and check that everything's still snug. Vibration works on set screws, so a quick torque check after that first run is cheap insurance.
Where does this pedestal earn its keep? Think helm and companion seats on center consoles in the 20 to 25 foot range, leaning posts, bay boats, and any spot where one seat gets shared by a 5-foot-4 first mate and a 6-foot-2 captain. The height range lets each person set it where they're comfortable instead of everyone living with one compromise. It's equally at home under a pedestal seat at a small galley table or a fixed fishing chair.
One more thing worth saying. With the post collapsed to 13-3/8 inches, this works on lower-profile consoles where headroom under a hardtop is tight, and extended to 16-5/8 inches it brings a shorter helm seat up to a comfortable height for taller drivers. Measure your clearance from the deck to the underside of any hardtop or T-top before you commit to the taller setting, since 16-5/8 inches plus the seat itself adds up fast.
Springfield Marine has been building marine seating hardware for decades, and it shows in the details here. The anodized post, the manual lock, the standard 2-3/8 inch fitment, the H-31 AD compliance. Nothing flashy. Just a well-made pedestal that does its one job and keeps doing it. If you're replacing a corroded post or building out a new seat station, this is a solid, no-drama choice.
Key Features
- 13-3/8 in. to 16-5/8 in. manual height adjustment lets each driver dial in their own seating position
- 2-3/8 in. post diameter fits the most common marine seat bases and spider mounts
- Anodized aluminum post resists saltwater corrosion and UV chalking far better than bare or painted stock
- Manual height lock means no wiring, no air lines, and no motor to fail
- ABYC Code H-31 AD compliant, engineered and tested to the marine seating-structure standard
- Standard bolt-down base installs to a deck or seat box with common tools
- Height range suits center consoles, bay boats, leaning posts, and companion seats
Why Buy from NVN Marine
- Authorized Springfield Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Adjustable Height Pedestal; 13-5/6 To 16-5/8 Inch Post Height; 2-3/8 Inch Post Diameter; Anodized; Aluminum; ABYC Code H-31 AD |
|---|---|
| Brand | Springfield Marine |
| Manufacturer Part Number | 1253032-L1 |
| UPC | 038132978270 |
| Product Type | Adjustable Height Boat Seat Pedestal |
| Series | Expansion Manual Adjustment |
| Post Height Range | 13-3/8 in. to 16-5/8 in. |
| Post Diameter | 2-3/8 in. |
| Height Adjustment | Manual |
| Material | Aluminum |
| Finish | Anodized |
| ABYC Compliance | Code H-31 AD |
Frequently asked questions
What is the height adjustment range on this pedestal?
The post adjusts from 13-3/8 inches at its lowest to 16-5/8 inches fully extended, so you can set your seat height to suit different drivers.
What post diameter is this?
It uses a 2-3/8 inch post, one of the most common marine seat post sizes. That means it fits a lot of standard seat bases and spider mounts already on the market.
Is this pedestal ABYC compliant?
Yes. It carries the ABYC Code H-31 AD rating, the American Boat and Yacht Council standard for seating structures, with the AD designation for adjustable seat assemblies.
How does the height adjustment work?
It's a manual adjustment. There's no wiring, no air line, and no motor. You set the post to the height you want and lock it in place.
Will it fit my existing seat base?
If your base is sized for a 2-3/8 inch post, it should drop right in. If you have an older 2-7/8 inch base, you'll need an adapter or a matching base. Measure your current post before ordering.
What is the post made of?
Anodized aluminum. The anodized finish resists the corrosion and chalking that raw aluminum suffers in a saltwater environment.
How do I keep the anodized finish looking good?
Rinse it with fresh water when you rinse the rest of the boat. Regular rinsing keeps the white oxidation that eventually shows on any marine aluminum from setting in.
Can I mount this on a cored deck?
Yes, but back the fasteners with a plate or large fender washers so you're not loading the core directly. That prevents soft spots and crazing around the mount over time.
What boats is this pedestal best suited for?
It's a good match for helm and companion seats on center consoles, bay boats, leaning posts, and runabouts, especially where one seat is shared by people of different heights.
