Sierra Sterling 2-Inch Trim Gauge Merc/Volvo DP/SX

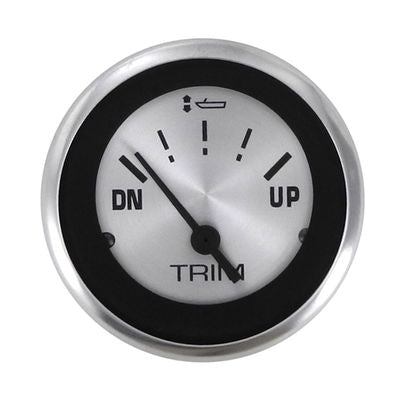

The Sierra Sterling trim gauge is a straightforward 2-inch analog gauge that tells you exactly where your sterndrive is trimmed, from full up to full down. It's part of the Sterling instrument series, so it carries the clean look boaters know: a white face, a polished bezel, and a black pointer needle that reads at a glance. It's made for Mercury and Volvo Penta DP and SX drives, which covers a big slice of the sterndrive boats out on the water.

Most folks buying this are replacing a trim gauge that's given up. Maybe the needle sticks at half. Maybe the dial went dark one season and never came back. Or maybe the previous owner never wired one in and you're tired of guessing where the drive is sitting. Whatever the reason, this is the Sterling 2-inch that drops into a standard dash cutout. And if your helm already runs Sterling instruments, this one matches the set so your dash doesn't end up looking like a parts-bin build.

Here's why trim actually matters. Getting your drive trimmed right is the difference between a boat that jumps up on plane and holds it clean and one that plows, porpoises, or burns fuel fighting the water. When you can see trim at a glance, you can dial it in for the conditions. Tuck it under in a following sea. Trim it out to stretch your top end on flat water. Once you've run with a working gauge, running without one feels like flying blind.

Now the part that trips people up. A trim gauge is only as good as the sender feeding it. This is a short-sweep electrical gauge, so it wants a trim sender in the matching resistance range. The DP and SX drives it's built for use US-style senders, and when the gauge and sender are in the same family, the needle tracks trim smoothly from up to down. Put a mismatched sender behind it and the needle will peg or stick halfway, which is the number-one reason people think a new gauge is bad when it's really a sender problem. So if you're swapping both, keep them matched.

The perimeter lighting is a genuinely nice touch for night running. It rings the dial so you can read trim in the dark without a harsh backlight wrecking your night vision. One tip from years of doing these installs: run a separate fused 12-volt feed to the light circuit instead of daisy-chaining it off a marginal accessory wire. It keeps the dial from dimming when everything else powers up, and it's a five-minute job that saves a real headache down the road.

Mounting is standard 2-inch, so it fits the common gauge hole you'll find on most helms. On a thin fiberglass dash panel the gauge body can stick out a little at the back, so a backing plate helps it sit flush and takes the strain off the panel. Snug the bezel down finger-tight plus a bit with a lock washer. Crank it down too hard and you can bind the needle, and nobody wants that after all the wiring is done.

Daytime readability is good. The white face and black needle give you strong contrast on most consoles. If your helm stares straight into the afternoon sun, a small gauge hood keeps the glare off, same as you'd do for any analog gauge up top. Bottom line: if you run a DP or SX sterndrive and you want to actually see your trim instead of reading it by engine note, this is an honest, no-drama gauge that does one job and does it well.

Sierra has been making marine parts to meet or beat the original equipment for a long time, and this gauge fits that mold. It's not exotic. It's a proven, serviceable trim gauge that gets your dash back to fully readable without a big spend. Pair it with the right sender, give it a clean 12-volt feed, and it'll ride out there season after season.
