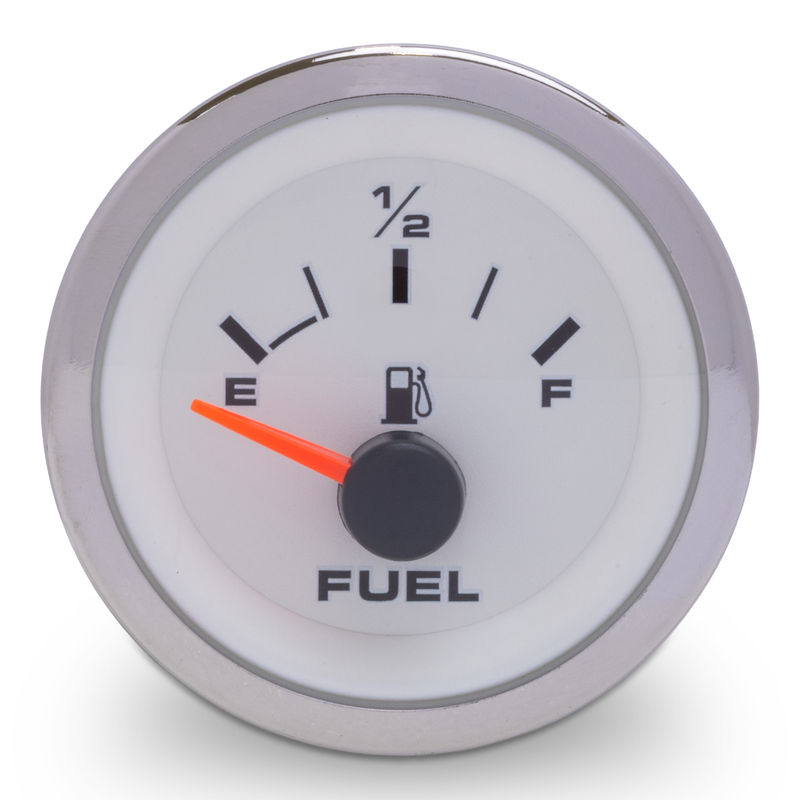

Sierra Premier Pro 2-Inch Marine Fuel Gauge
Sierra Premier Pro 2-Inch Marine Fuel Gauge — Product description
The Sierra Premier Pro fuel gauge puts a clean, readable empty-to-full display right on your console. It's a 2-inch electrical gauge with a white face, polished stainless bezel, and a red pointer that's easy to read at a glance. Illuminated for night runs and built to hold up in salt air. Simple, honest, and right at home on almost any boat.
The Sierra Premier Pro fuel gauge does one job and does it well. It tells you how much fuel is left in the tank, empty to full, at a glance. This is the 2-inch electrical version with a white face, a polished stainless steel bezel, and a red pointer needle. It's illuminated, so it reads just as clearly on a late run home as it does at the dock at noon.
We like this gauge because it looks the part. The white dial and the polished bezel give a console that clean, finished look without shouting for attention. The red needle stands out against the white face, which matters more than you'd think when you're glancing down at speed and just want a quick read on your fuel. It's the kind of gauge that fits a center console, a bay boat, a cuddy, or a pontoon helm and looks like it belongs there.
Being an electrical short-sweep gauge, this one works with a resistive fuel-level sender in your tank. The sender sits in the tank and changes resistance as the float rises and falls, and the gauge reads that resistance and moves the needle. The important thing before you order: match the gauge to your sender's resistance range. Fuel senders come in a couple of common ranges, and a mismatch will have the needle reading backwards or pegged. If you're replacing an old gauge and keeping the same sender, you're usually fine. If you're starting fresh, plan the sender at the same time.
Installation is straightforward for anyone comfortable with basic 12-volt wiring. The gauge drops into a standard 2-inch panel hole and clamps from behind. You'll run a ground, a switched 12-volt feed, the sender wire, and a lighting wire for the built-in illumination. A lot of folks tie the gauge light into the same circuit as the nav or panel lights so everything comes on together. One tip from experience: give the gauge light its own clean feed if you run a dimmer, since sharing a dimmed circuit can make it flicker.
Behind the panel, check your clearance before you commit. A 2-inch gauge needs a couple of inches of depth for the body and the terminals, so make sure there's room back there and that your wiring can reach without strain. It's a five-minute check that saves you a headache halfway through the job.
A short-sweep gauge like this reads across a compact arc, which suits most powerboat fuel tanks well. On a small tank you won't get fine-grained resolution between the quarter marks, but for keeping an honest eye on your fuel over a day on the water, it does exactly what you need. Run it alongside a matching Premier Pro speedometer, tachometer, or voltmeter and the whole dash ties together.
One honest note about the finish. That polished stainless bezel looks great, and it'll pick up fingerprints and water spots in salt air like any bright metal does. Wipe it down with a soft cloth and a non-abrasive marine polish now and then and it stays sharp for years. Skip the abrasive cleaners. And if your helm sits in direct sun all day, a small visor or a shaded mounting spot keeps the white face and red needle easy to read when the light is harsh.
If you're rebuilding a tired dash or just swapping out a gauge that's gone cloudy, the Sierra Premier Pro is a solid, good-looking choice that installs in an afternoon. Pair it with the right sender, give it clean power, and it'll ride along quietly doing its job trip after trip.
Key Features
- 2-inch diameter face fits a standard console gauge hole for a clean drop-in swap
- Electrical short-sweep movement pairs with a resistive fuel-level sender for accurate empty-to-full reading
- White face with a red pointer needle for a quick, clear read at a glance
- Polished stainless steel bezel gives the console a finished, marine-grade look
- Built-in illumination keeps the gauge readable on night runs
- Empty-to-full scale shows tank level without guesswork
- Premier Pro styling matches Sierra's other Premier Pro instruments for a coordinated dash
- Universal marine design fits center consoles, bay boats, cuddies, and pontoons
Why Buy from NVN Marine
- Authorized Sierra Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sierra Premier Pro 2-Inch Electrical Fuel Gauge |
|---|---|
| Brand | Sierra Marine |
| Manufacturer Part Number | 62551P |
| UPC | 731957419651 |
| Series | Premier Pro |
| Gauge Type | Fuel Level |
| Scale | Empty to Full |
| Gauge Diameter | 2 in |
| Signal Type | Electrical, Short Sweep |
| Display | Analog |
| Face Color | White |
| Bezel Finish | Polished Stainless Steel |
| Pointer Color | Red |
| Illumination | Backlit |
| Application | Universal Marine |
Frequently asked questions
What size hole does this gauge need?
It's a 2-inch gauge, so it drops into a standard 2-inch panel cutout and clamps from behind. If you're swapping an older 2-inch gauge, the new one should sit right in the existing hole.
Does it come with a fuel sender?
This is the gauge itself. It's an electrical gauge that pairs with a resistive fuel-level sender in your tank, so check the listing and your existing sender before ordering. If you're keeping your current sender, you'll want to match its resistance range to the gauge.
How do I know if my sender matches?
Resistive fuel senders come in a couple of common resistance ranges. A matched sender reads correctly from empty to full, while a mismatch makes the needle read backwards or peg to one side. If you're replacing a gauge and keeping the same sender, you're usually set. If it's a fresh install, spec the sender at the same time.
Is the gauge illuminated?
Yes. It has built-in illumination, so you run a lighting wire along with power, ground, and the sender wire. Many boaters tie the light into the same switch as the panel or nav lights so everything comes on together.
Will it work on a 12-volt system?
Yes, it's built for standard 12-volt marine electrical systems. You'll wire a switched 12-volt feed, a ground, the sender signal, and the illumination lead.
What does short sweep mean?
Short sweep describes how far the needle travels across the dial from empty to full. It reads across a compact arc, which works well for most powerboat fuel tanks. On very small tanks you get less fine detail between the marks, but it still gives you an honest read on your fuel.
How much depth do I need behind the panel?
Plan for a couple of inches of clearance behind the dash for the gauge body and the terminals. Check that your wiring reaches without strain before you commit to the location.
How do I keep the polished bezel looking good?
Bright polished metal picks up fingerprints and water spots in salt air. Wipe it down with a soft cloth and a non-abrasive marine polish now and then, and skip abrasive cleaners so you don't dull the finish.
Does the white face wash out in direct sun?
The white face and red needle are easy to read in most light, but any gauge can get harder to read in harsh direct sun. A small visor or a shaded mounting spot at the helm keeps it clear.
What's the warranty?
It carries the full Sierra Marine manufacturer warranty. We're an authorized Sierra reseller, so any warranty question runs through us back to Sierra.
