Sierra Marine 63474P Sterling 3-Inch Tachometer with Hour Meter

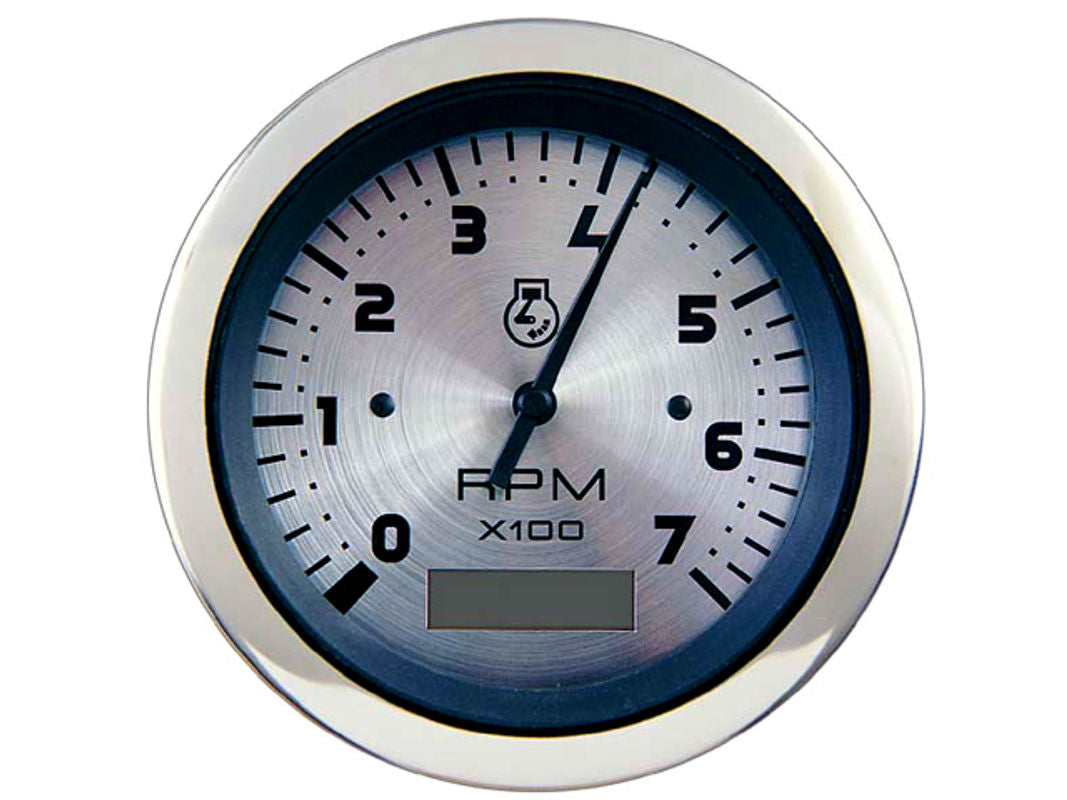

The Sierra Marine 63474P is a 3-inch Sterling Series tachometer with a built-in digital hour meter, and it's the gauge you reach for when the old tach on your console has gone dim or started bouncing. It reads 0 to 7000 RPM on a full-sweep electric movement, so the needle travels the whole face instead of crowding the numbers into a tight little arc. White face, silver bezel, black pointer needle. Clean and easy to read in bright sun, and lit up nicely after dark.

The hour meter is the part boaters really appreciate. It's a digital display tucked into the tach face, and it keeps a running total of engine hours so you always know when the next oil change or service interval is coming due. No guessing. No separate meter to find dash space for. You track your engine hours the same way you'd track fuel, and that alone makes maintenance planning a lot less of a headache.

This is a full-sweep electric tach, so it takes its signal from your engine's tach output or a magnetic sender rather than counting pulses off the coil. Wiring is straightforward off the standard studs on the back: ignition, ground, sender, and light. One thing worth knowing up front. The hour meter wants a proper fused 12-volt feed so it logs run time accurately, so read the wiring notes before you pick your power tap. And if you're swapping over from a tired old tach, mark your wires before you pull the dash apart. It'll save you ten minutes of head-scratching later.

It drops into a standard 3-inch dash cutout, the common size on most center consoles, dash panels, and older helms. On some tight older consoles the bezel can overlap the surrounding trim a hair, so dry-fit before you commit and clean up the hole if you need a flush seat. Perimeter lighting rings the dial so the numbers stay readable at night. If you happen to run cabin lights on the same dimmer circuit, you might see the tach light flicker, so give it a dedicated switched feed and it settles right down.

Because it's an electric full-sweep unit, it plays nice with standard magnetic and alternator-style senders. Two-stroke and four-stroke engines put out different pulse rates, so set the calibration to match your engine and the reading lands right where it should. Some higher-revving outboards read a touch erratic up top without a small resistor in the sender line. That's an easy fix if you ever notice the needle dancing above your cruise RPM, and most rigs never need it. And in real cold, below about 40 degrees, the digital hour display can go blank for a minute until the unit warms up. That's normal for these gauges, and the reading comes right back once you're running.

This particular Sterling gauge is the straightforward version. It doesn't carry peak memory or an overspeed warning indicator, so if you want the tach to log your wide-open-throttle number for later, you'll be jotting it down yourself or adding a separate logger. For most boaters running a repower, a console refresh, or just replacing a gauge that's seen better days, that's no loss at all. You get an accurate, good-looking tach and an hour meter sharing one 3-inch hole.

Sierra builds these to meet or exceed the original gauge they replace, and they've been supplying marine gauges and engine parts to boat builders and engine makers for decades. It's an aftermarket part in the best sense of the word: engine-room quality without the factory-badge markup. Rig it up, set the calibration, and get back on the water where you'd rather be.
