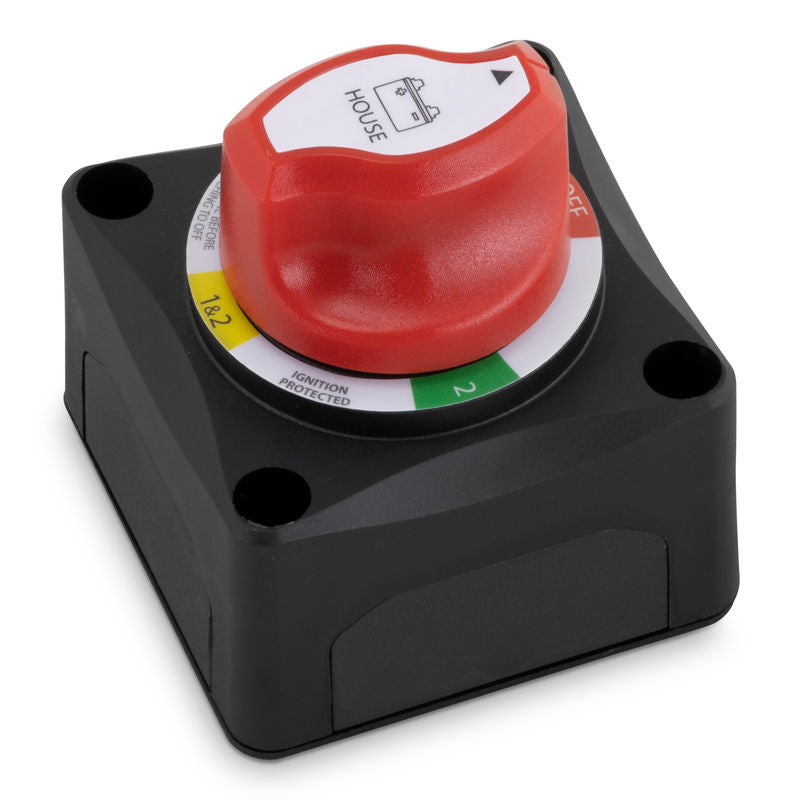

Sierra BS11030 48V Battery Switch | 1-2-Both-Off

The Sierra BS11030 is a 48 volt battery selector switch built for boats running higher-voltage DC systems. It gives you four positions off a single key: Bank 1, Bank 2, Both, and Off. That's the classic setup for managing a house bank and a start bank from one spot at the helm or down in the battery compartment. And because it's rated all the way up to 48 volts DC, it's the right switch for electric propulsion boats and 48 volt lithium house banks, not just the 12 volt world most switches live in.

Here's why the voltage rating matters. A switch that's only rated for 12 or 24 volts can arc internally when you throw it under a 48 volt load. That arcing burns the contacts over time and eventually the switch fails. The BS11030 is spec'd for 48 volts DC, so the contacts handle the higher potential without pitting. If you're wiring up a 48 volt system, don't reach for a standard marine switch. Check the label first, every time.

The current ratings tell you what it can carry. You get 200 amps continuous, 300 amps intermittent, and 1000 amps on the cranking side. Continuous is the number that matters for steady loads like an inverter or a windlass that's running for a stretch. The 300 amp intermittent rating covers short surges, and the 1000 amp cranking figure is there for the momentary hit when a starter motor spins up. Plan your loads against the continuous number and you'll never stress the switch. Pile a big inverter and a windlass on at the same time, though, and you can push past 200 amps, so keep an eye on a shunt meter if you run heavy accessory loads.

What sets this one apart from a plain battery switch is the alternator field disconnect, or AFD, terminal. When you turn a standard switch to Off while the engine is running, the alternator suddenly has nowhere to send its output. That voltage spike can cook the diodes and the regulator. The AFD terminal on the BS11030 cuts the alternator field the instant before the main circuit opens, so the alternator winds down safely. It's a small wire and an easy connection, and it saves you from replacing a fried regulator down the road. A lot of installers skip it. Don't be one of them.

Mounting is flexible. You can surface mount it on a bulkhead or panel mount it through a cutout so only the key face shows. The mounting screws come in the box, so you're not hunting for hardware on install day. If you're screwing it to an aluminum panel, put a little dielectric grease on the screws to keep galvanic corrosion from setting in, especially on a saltwater boat. That's cheap insurance for a part that lives in a damp locker.

Wiring is straightforward if you respect the terminals. Use properly sized cable for your loads, get clean lugs, and torque the terminal nuts down solid. A loose lug at 200 amps continuous makes heat, and heat is how these connections fail. One more install note: if you're running a diode isolator in the system, sort out your charging paths before you rely on the Both position, so you're not back-feeding banks you didn't mean to.

Who's this for? Anyone building or servicing a 48 volt DC system who wants real bank selection and alternator protection in one switch. Electric-drive boats, big lithium house banks, and anybody upgrading from a lower-voltage setup. It's a Sierra part, so it's built to meet or beat the original equipment it replaces, and it carries the full manufacturer warranty through us. If you're not sure it fits your panel cutout or your cable sizes, give us a shout and we'll walk through it with you.
