Sierra 68383P Arctic 2-Inch Marine Voltmeter 8-18V

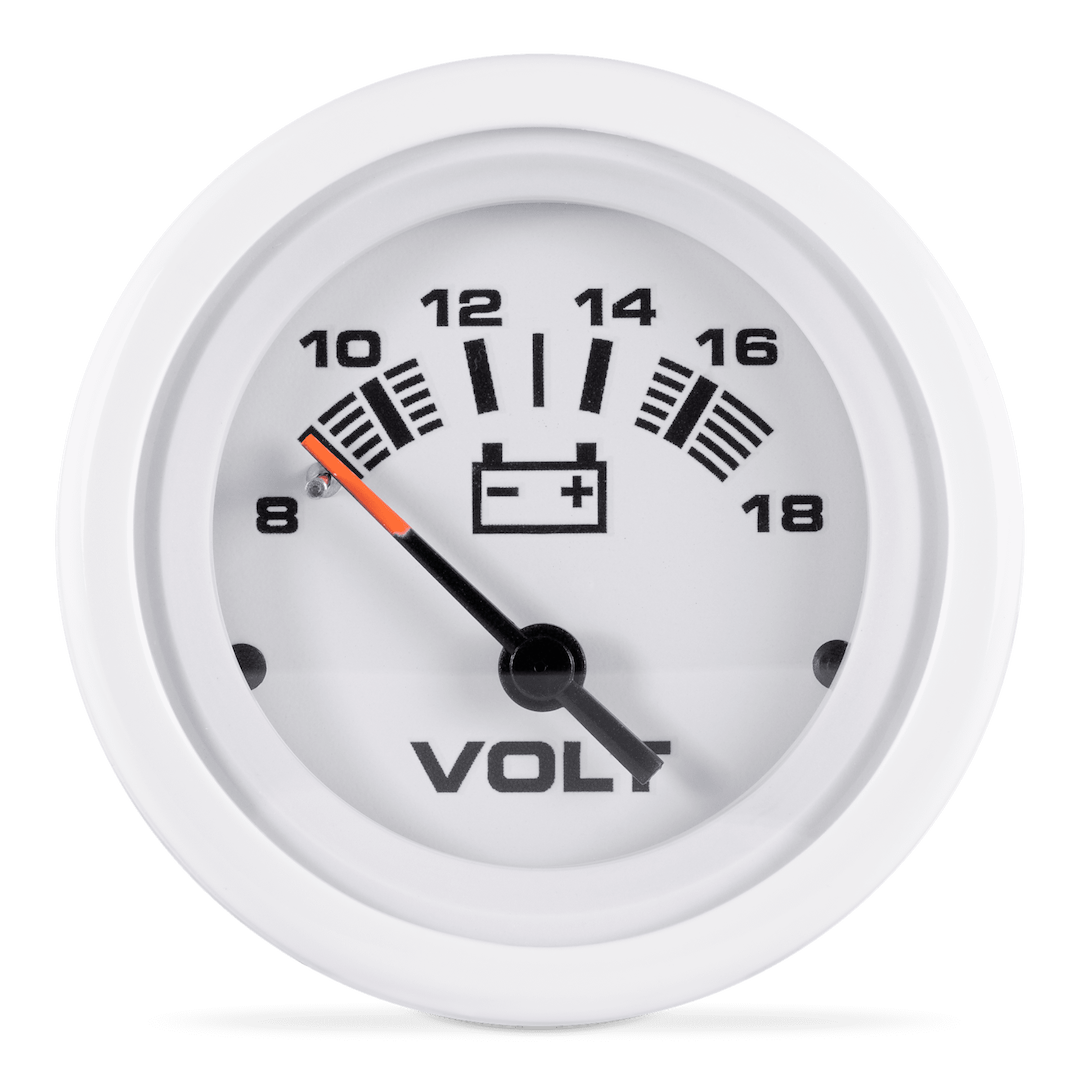

The Sierra Marine Arctic voltmeter is a straightforward 2-inch analog gauge that keeps an eye on your boat's electrical health. It reads 8 to 18 volts DC, which covers the full working range of a 12-volt marine system, from a battery that's sitting a little low to one that's taking a healthy charge off the alternator. Mechanical movement, white face, black pointer with a fire-orange tip. You glance at it, you know where your battery stands. That's the whole job, and it does it well.

Why does a voltmeter earn a spot on the dash? Because voltage is the first thing that tells you something's wrong. A reading that sags under load points to a tired battery or a loose connection. A needle that won't climb past 13 volts while the engine's running means your charging system isn't keeping up. Catch that at the dock instead of three miles offshore and you've saved yourself a tow. This gauge gives you that early warning in a format anyone can read at a glance.

The Arctic series uses perimeter lighting, so the whole dial glows evenly around the edge rather than lighting from a single bulb behind the face. It reads clean in direct sun and stays legible at night. If you run a dash dimmer, test it with this gauge before you button everything up, since backlight brightness and dimmer behavior can vary from rig to rig. A dedicated ground straight to the battery negative keeps the lighting steady, too. Flicker on a marine gauge almost always traces back to a weak ground.

Sealing is IP65, which means it shrugs off spray and rain from any direction. That's plenty for a center console dash or a helm that catches the occasional wave. One thing worth knowing: on humid boats, condensation can form behind the lens if the gauge lives somewhere that swings between hot and cold. Mounting it in a ventilated spot helps. And while the gauge is rated from -40 to +70 Celsius, an enclosed engine compartment can push past that on a hot day, so keep it up on the console rather than buried next to the powerhead.

Install is standard 2-inch gauge work. The bezel measures 2.39 inches across, the housing behind it runs 2.08 inches, and it drops into a 2.13-inch hole. If you're cutting a fresh hole, use a proper hole saw and a backing template so you don't crack an older dash. Wire it to switched power and you're done. The gauge pulls a modest 0.10 to 0.15 amp, so it won't tax your system, though on a small battery bank it's still worth running everything through a master switch so nothing draws overnight.

One honest note on range: this is an 8 to 18 volt gauge built for 12-volt systems. Put it on a 24-volt bank and the needle will peg. Confirm your supply voltage before you wire it in. For the outboard and single-battery crowd, though, the 8 to 18 window is exactly right and gives you good resolution across the range you actually care about.

If you're building out a full gauge cluster, this 2-inch size is the common small-gauge standard, so it sits naturally beside matching fuel, trim, and water-temp gauges of the same diameter. The white face and white bezel give you a clean, bright look that suits most modern helms, and the fire-orange pointer tip catches your eye the instant the needle moves. It's the kind of detail you don't notice until you're running at dusk and that bright tip is the one thing you can still pick out clearly against a fading dial.

A word on the long haul: mechanical gauges like this one can drift slightly low after a few seasons as the movement wears, usually a couple tenths of a volt. It's rarely enough to matter for a quick health check, but if you're chasing a charging problem and want a precise number, confirm the reading against a handheld meter at the battery terminals. Clean, tight connections at install go a long way toward keeping the gauge honest for years. Sierra builds this gauge to the same standard as the rest of their marine line, engineered for salt, vibration, and the general abuse that comes with life on the water. No frills, no app, no fuss. Just a clear read on your voltage every time you look down.
