Sierra 3-Inch Electric Tachometer 0-3500 RPM | 82303P

The Sierra Marine 82303P is a no-nonsense 3-inch tachometer for boats that run smaller diesels or lower-revving gas engines. It's a full sweep electric analog gauge that reads from 0 to 3500 RPM, and that scale is the whole point. If your engine tops out in that range, a 0 to 3500 dial gives you far better needle resolution than a 0 to 6000 gauge where everything crowds into the bottom third of the face.

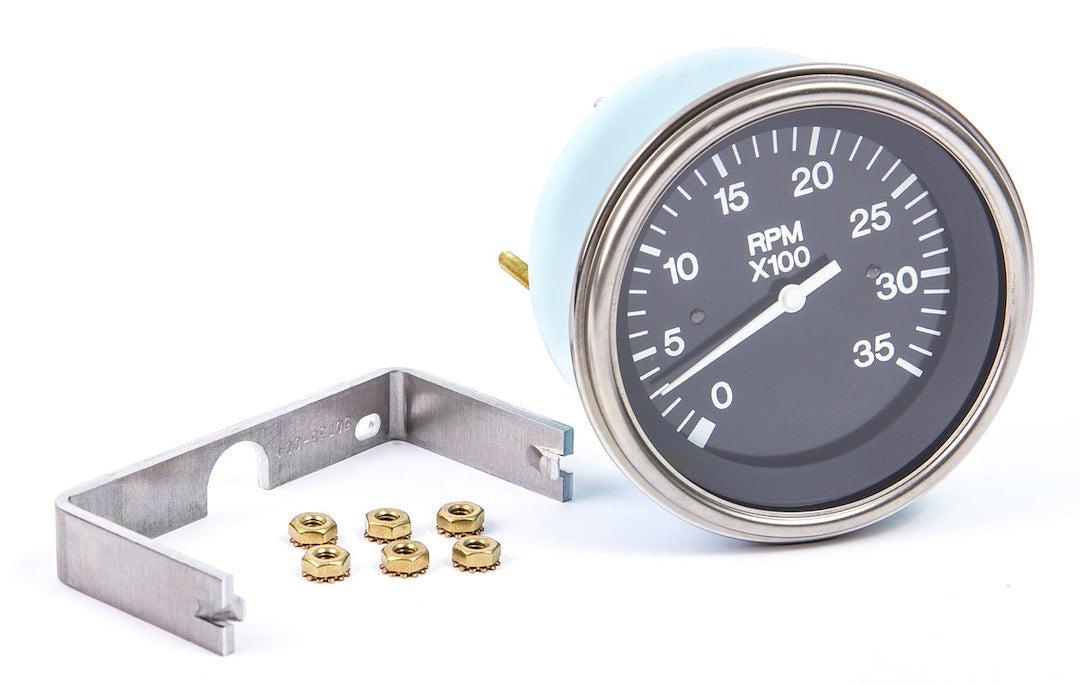

We like this one for repowers and refits where you want the helm to look factory again. The black face, polished stainless steel bezel, and white pointer needle read clean in daylight, and the perimeter lighting keeps it legible after dark. It's a 12 volt DC gauge, and it carries an IP65 rating, so it stands up to spray and washdown on an open console. Sierra builds these to meet or exceed the original equipment part they replace, which is exactly what you want when you're swapping out a cracked or foggy old tach.

A quick word on how it reads your engine. This is an electric tach, so it takes an RPM signal, usually from an alternator AC tap or a dedicated tach sender, not a mechanical cable. On most inboard and diesel setups that signal is clean and the needle sits rock steady. On some gas outboards the raw coil signal can get bouncy up high, so if you're wiring it to an outboard, plan to feed it from the correct source and set the calibration for your engine. Get the signal right and this gauge tracks smoothly through the whole sweep.

Installation is straightforward for anyone comfortable behind the dash. It drops into a standard 3-inch gauge cutout, so it lines up with the rest of a typical instrument cluster. One thing to check before you tighten it down: the polished bezel sits slightly proud, so if you're dropping it into an older panel with recessed pockets, dry-fit first and add a thin spacer ring if you need the face to sit flush. Nothing unusual, just worth a look.

Wiring is the usual four connections. Power, ground, the sender or signal wire, and the light. Here's the one we always pass along: run the perimeter lighting off a switched circuit that dies with the ignition. The backlight draws a small constant current, and if you wire it to always-on power, you can come back after a couple of weeks of sitting and find a flat battery. Switch it with the key and you'll never think about it again. And seal the wire entry properly. A dab of dielectric grease and a length of heat-shrink at the terminals keeps that IP65 rating honest on a boat that lives outside.

This version comes without peak memory and without a warning indicator, so it's a pure tachometer. It shows you what the engine is turning right now, nothing more. That's fine for most boats. If you like to log your wide-open-throttle numbers, you'll want to note them yourself or run a separate hour meter alongside it. The trade is simplicity and a cleaner face, and plenty of owners prefer exactly that.

Who's it for? Repowers, refits, and replacement on boats with engines that live under 3500 RPM. Small diesels, kicker and auxiliary setups, and sailboat auxiliaries are all natural homes for this gauge. If your engine spins past 3500 at wide open throttle, step up to a higher-range tach so you're not pinning the needle. But for the right engine, the 82303P is a tidy, durable, good-looking gauge that'll read true for years. And if you're not sure which sender or signal source your engine needs, give us a call. We'll help you get it wired right the first time.
