Sierra 18-99525 Lower Unit Adapter Kit | Gear Case

The Sierra 18-99525 Lower Unit Adapter Kit is the set of fittings you reach for when you're pressure and vacuum testing a gear case and the tester in your hand won't thread cleanly into the drain or vent hole in front of you. Different outboards and sterndrives use different port threads, and this kit bridges that gap. It's built to work with the CDI Electronics gear case pressure and vacuum tester system, so one tester and hose setup carries across Suzuki, Volvo, and metric-threaded lower units without hunting down a one-off fitting every time.

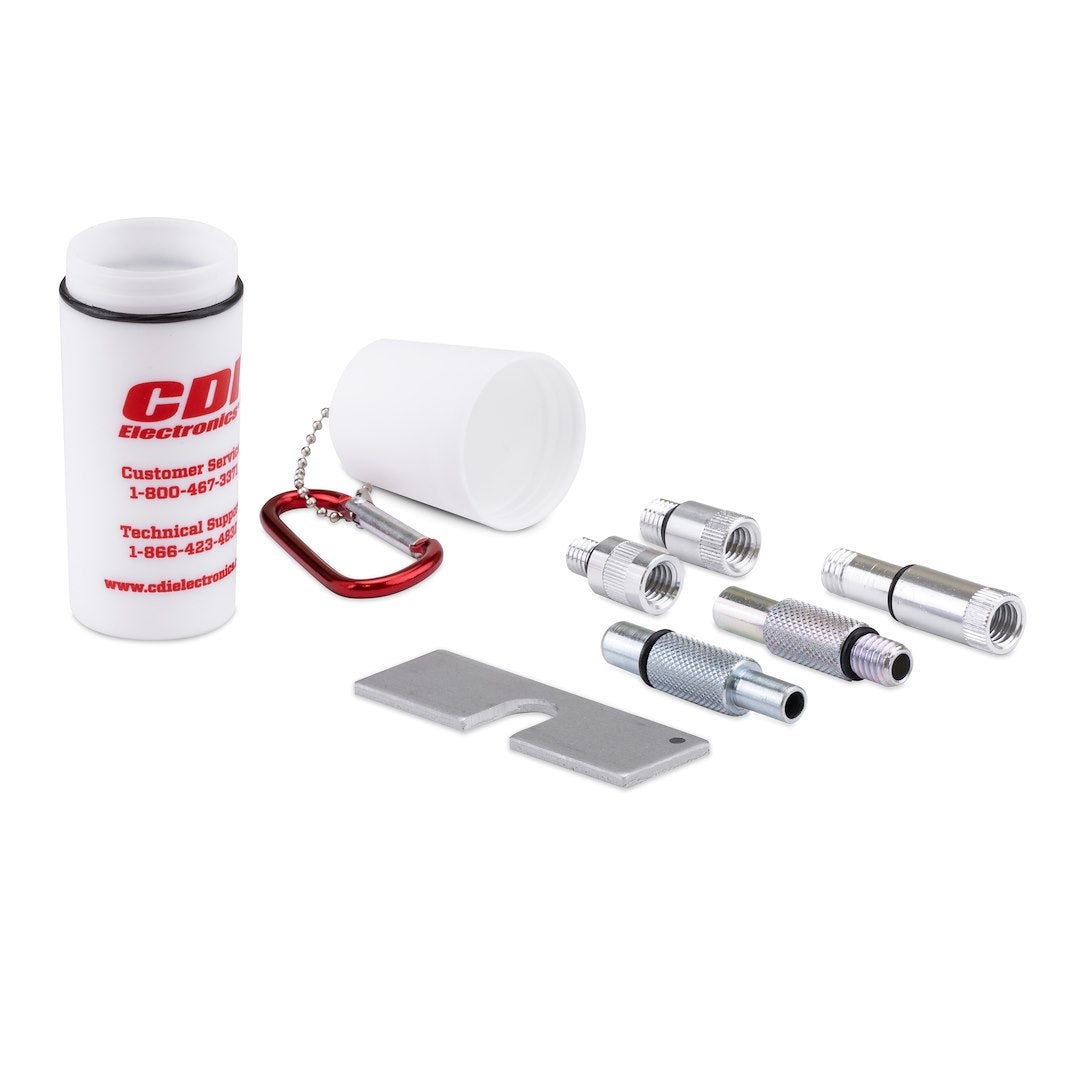

Here's what's actually in the box. You get the 551-334M metric adapter, the 551-334S Suzuki adapter, the 551-334V Volvo adapter, and the 551-33TN threaded and unthreaded nozzles. That's it, and that's the point. This is the adapter kit, not the tester. The 551-34PV pressure and vacuum tester, the 551-33-1 gear case filler, and the 551-34HA and 551-34HB hoses are separate pieces. If you already run that CDI tester setup on your bench, this kit is the missing link that lets it fit more engines.

Why bother pressure testing at all? Because a gear case lives on three seals, the driveshaft seal up top, the prop shaft seal at the back, and the shift shaft seal. Any one of them can let water sneak in and gear oil weep out, and by the time you spot milky lube on the drain plug the damage is often already done. A pressure and vacuum check catches a weak seal before it turns into a spun bearing or a chewed-up gearset. You pressurize the housing and watch the gauge hold, then pull a vacuum and watch it hold again. Steady needle, good seals. Dropping needle, time to pull it apart.

The adapters matter more than they look. A Suzuki lower unit doesn't share the same fill and vent thread as a Volvo Penta leg, and plenty of newer cases run metric threads that a standard nozzle just won't bite. Thread the wrong fitting in and you either can't build pressure or you cross-thread a soft aluminum port, which is a bad afternoon. Match the adapter to the engine and the tester seals up on the first try.

A few notes from the field. Go easy on torque with the Suzuki adapter, especially on the bigger DF-series outboards, since those threads will strip if you really lean on them. On older Volvo SP and 290 legs, an extra O-ring on the adapter helps it hold vacuum when the port is worn. And if you're chasing a phantom leak on an engine running thick gear lube, warm the unit up or switch to the recommended synthetic before you test, because cold heavy oil can mask a slow weep and read like a false pass. The threaded nozzle handles ports with clean threads, and the unthreaded nozzle covers the rest.

There's a rhythm to a full lower-unit service, and this kit fits right into it. Drain the old gear oil, refill from the bottom with the CDI filler so you push the air out the top, then cap it and run the pressure and vacuum test to confirm the fresh fill isn't going anywhere. On a saltwater boat that gets used hard, doing this once a season is cheap insurance. Hoses do wear, so if a line ever develops a pinhole after a few years of checks, swap the hose and keep the adapters. They'll outlast several hoses.

Who's this for? Marine techs and serious owners who service their own lower units every season. If you're already changing your own gear oil with the CDI filler, adding this adapter kit turns a fluid change into a full seal inspection. It's the same reason shops keep it on the bench. One tester, one set of adapters, and you can properly test almost anything that rolls through the door. Sierra builds this kit to meet or beat the original tooling it replaces, the same standard behind the thousands of engine parts they supply to builders and boatyards. It isn't glamorous gear. But it's the difference between guessing a gear case is dry and knowing it.
