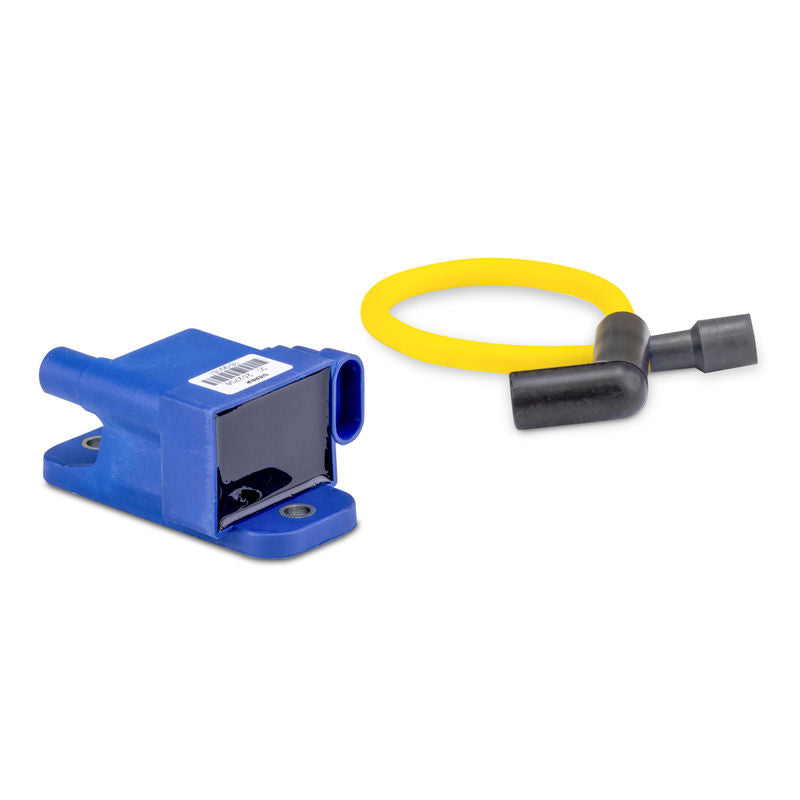

Sierra 18-99161 CDM Module | Mercury & Force Outboards

The Sierra 18-99161 is a CDM, short for Capacitor Discharge Module. On these outboards, the CDM is the heart of the ignition. It packs the ignition coil, the electronics that store and dump the charge, and the driver that fires the plug into one sealed unit. When it's working, you don't think about it. When it fails, you feel it right away.

So how do you know a CDM has gone bad? The classic signs are a dead cylinder that won't fire, a rough or lumpy idle, hard starting, or a miss that shows up under load and clears at idle. Sometimes an engine runs fine cold and then starts dropping a cylinder once everything heats up. We've chased plenty of these down on the water, and more often than not a failed module is the culprit once you've ruled out the plugs and wires. Because each cylinder or bank runs its own module on a lot of these engines, a single bad CDM only kills the cylinders it feeds. That's why a four-cylinder Force can limp home running on three.

Fitment here is wide. This module covers Mercury Marine outboards from 30 to 300 horsepower built between 1996 and 2007, and Force outboards in the 40, 50, 75, 90, and 120 horsepower sizes from 1996 through 1999. That's a big spread of engines, which is exactly why this part number stays busy. Before you order, it's always worth matching the module you're pulling off against the replacement, since a few engines in that range used different ignition setups across the model years.

Sierra builds this as a direct replacement for the original equipment module. It meets or exceeds the OEM part it replaces, so you're not giving anything up by going aftermarket here. Sierra supplies parts to plenty of engine builders and boat manufacturers, and their ignition components have a long track record on exactly these blocks. It drops into the factory location and connects to the factory harness. No splicing, no adapters, no fabrication.

A quick word on diagnosis before you spend money. A CDM either fires or it doesn't, and they tend to fail outright rather than drift. If you've got a spark tester, check for spark on the dead cylinder while the engine cranks. No spark on one cylinder while the others fire is the tell. It's also smart to rule out the cheap stuff first. Fouled plugs, cracked plug wires, a loose ground, or a tired stator feeding weak voltage to the modules can all mimic a bad CDM. Swap-testing a suspect module against a known-good one from another cylinder is the old mechanic's trick. If the dead cylinder follows the module, you've found your problem.

Install is straightforward for anyone comfortable working around the powerhead. Disconnect the battery first. Note where each lead lands before you unplug anything, and snap a photo if you're not sure. Pull the old module, transfer the leads to the new one connection for connection, and torque the mounting hardware back down. Give the connections a shot of dielectric grease to keep corrosion out. That's the part that kills these modules early, water and corrosion working into the connector over the years.

One honest bit of advice. If your engine runs several CDMs and one has already failed from age, the others are the same age and living in the same salt air. A lot of owners replace the whole set at once so they're not back in the bilge next month chasing the next one. That's your call and your budget, but it's worth thinking about on an older motor.

These older two-strokes are simple, torquey, and cheap to keep running when you feed them the right parts. That's a big reason they're still hanging off transoms twenty-plus years later. The ignition is usually the weak link as they age, and a fresh module can make a tired-feeling motor wake right back up. Get the spark clean and consistent across every cylinder, and everything else, throttle response, idle, top-end, tends to fall back into place.
