Sierra 18-97353 Carb Kit, Mercury 20-50 HP Outboard

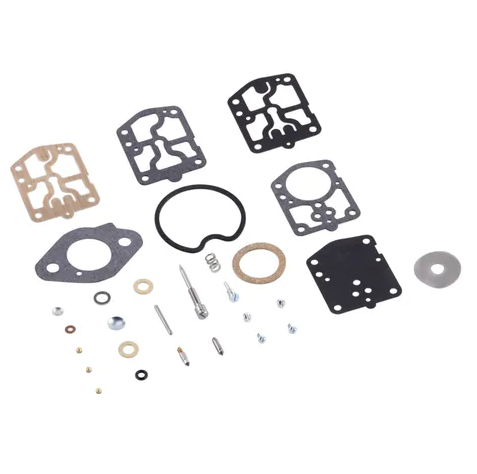

A carburetor rebuild is one of those jobs that sounds intimidating and turns out to be a good weekend project. The Sierra 18-97353 kit gives you the wear parts that actually go bad inside a Mercury 20 to 50 HP outboard carburetor. You get the fuel inlet needle valve, the needle seat, the carburetor bowl gasket, the flange gasket, the internal O-rings, and the small gaskets that seal everything up. Everything's in one box, so you're not chasing individual parts at three different counters.

So how do you know it's time? The usual tells are hard starting after the boat's been sitting, a motor that loads up and bogs at idle, or fuel weeping from the bowl when the engine's warm. Ethanol is usually the culprit. Modern pump gas draws moisture and slowly breaks down the rubber inside the carb, so the internal O-rings swell and the needle stops sealing. A couple of seasons of that and the carb just won't meter fuel the way it should. Dropping in fresh wear parts brings the fuel system back to spec without the cost of a whole new carburetor.

This kit covers the 20 to 50 HP Mercury outboard range, which spans a lot of years and a few different carb castings. Before you order, pull your carburetor number and confirm it matches. Some of the older 1980s-era motors used a slightly different needle valve, and matching the carb number up front saves you a second trip. If you're running a 35 HP Jet model, plan on a main jet adjustment after the rebuild to get the mixture dialed back in.

Worth being clear on what this is and what it isn't. It's a wear-parts and gasket kit, the pieces that degrade and seal. It's not a complete carburetor and it doesn't include the float or the main jets, so you'll reuse those from your existing carb after a good cleaning. Blow the passages out with carb cleaner and compressed air while you've got it apart. Fresh gaskets on a carb full of old varnish won't fix a lean stumble, so the cleaning and the rebuild go hand in hand.

On the bench, take your time with the needle and seat. On some 40 HP carbs the new seat doesn't drop in perfectly flush right out of the box, and a light dressing of the casting gets it seated square. Don't force it. A seat that sits crooked will leak no matter how clean the rest of the job is. When you set the fuel inlet needle, cycle the throttle around twenty times before that first start, especially on the 25 HP. That frees the needle so it doesn't stick closed and starve the motor on the initial crank.

The gaskets reward a little patience too. The flange gasket on the 30 HP tears easily if you're wrestling the carb back onto the intake, so wipe a thin film of grease on it to hold it in place while you line up the studs. For the bowl gasket, snug the bowl screws evenly and bring them to about 45 inch-pounds. On the 50 HP that torque matters. Too loose and it'll seep at idle. When you're done, a quick soapy-water test around the bowl seam will show you any bubbles before you ever splash the boat.

One more thing worth knowing. Bigger motors in this range often run more than one carburetor, so if you're pulling one to rebuild it, it's usually smart to do the whole bank at the same time. The carbs age together, and matching fresh parts across all of them keeps the cylinders pulling even fuel. It's the difference between a motor that idles smooth and one that hunts.

Sierra has been building marine replacement parts for decades, and their gaskets and O-rings meet or exceed the original equipment they replace. That means the same fit, the same sealing, and the same durability you'd expect from the parts that came off the motor, at a price that makes a rebuild worth doing. Keep a kit on the shelf if you run an older Mercury. Carbs don't usually pick a convenient time to act up, and having the parts on hand means you're back on the water instead of waiting on an order.
