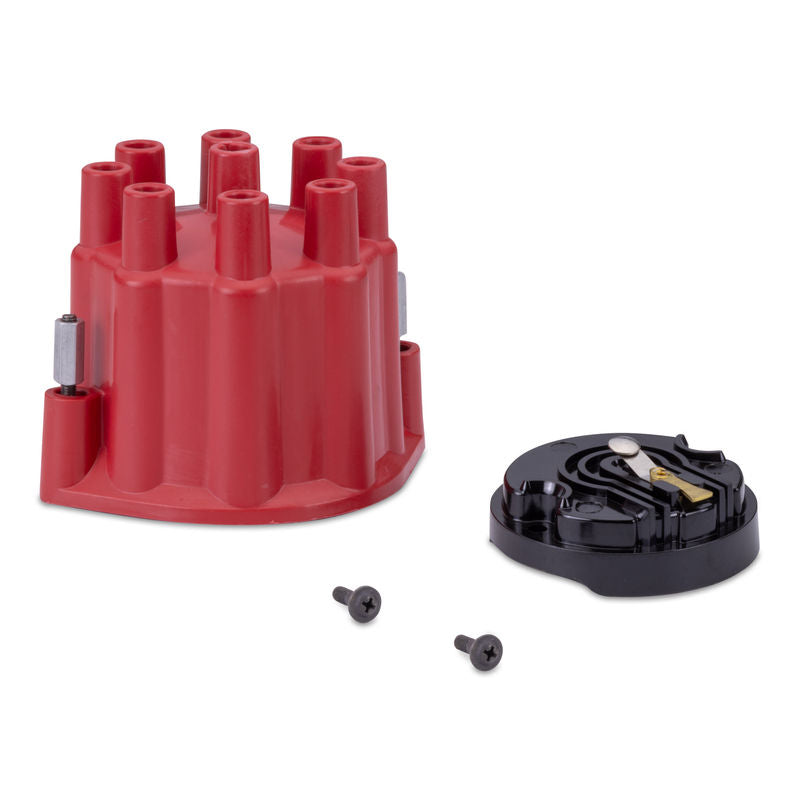

Sierra 18-5266 Marine Distributor Cap and Rotor Kit
Sierra 18-5266 Marine Distributor Cap and Rotor Kit — Product description
The Sierra 18-5266 is a complete distributor tune-up kit for marine Flame Thrower ignition systems. You get a fresh cap, a matching rotor, and the mounting screws in one box. It's the fix for hard starts, rough idle, and mid-throttle misfire from a worn, corroded cap. Meets or exceeds the original equipment part it replaces.
The Sierra 18-5266 is a complete distributor tune-up kit, a new cap, a matching rotor, and the mounting screws to put it all back together. It's built for marine ignition systems running Flame Thrower distributors, and it's the kind of part that quietly keeps your engine starting on the first turn of the key. When your cap and rotor are worn, everything downstream suffers. This kit brings that ignition path back to fresh.
Here's the thing about a distributor cap on a boat. It lives in a hot, damp, salt-laden engine box, and that environment is brutal on the brass terminals and the cap body. Automotive caps get a break. Marine caps don't. Salt air creeps in, corrosion builds on the contacts, and the spark that used to jump clean starts to wander. You feel it as hard starting, a rough idle at the dock, a stumble when you push the throttle, or a misfire that shows up right when you're trying to get up on plane. Nine times out of ten, a tired cap and rotor are the culprit.
Sierra builds this kit to meet or exceed the original equipment part it replaces, so you're not stepping down in quality when you swap. You get the cap, the rotor, and the correct screws in one box. No hunting for hardware, no mismatched parts. Pull the old cap, set the new rotor, drop the new cap on, and snug the screws down. On most marine V8 distributors it's a twenty-minute job with a screwdriver and a little patience.
A few install notes from the dock. First, always put a thin film of dielectric grease on the brass terminals before you close it up. Salt air will attack bare contacts within a season, and that grease is cheap insurance. Second, index the rotor carefully. Force a cap onto a mis-aligned rotor and you can chip the rotor tip or, worse, put load on the distributor drive. Line it up, seat it gently, and it'll drop right into place. Third, check the screws before you crank them tight. On a handful of marine distributors the supplied screws can bottom out before they clamp the cap. If yours do, back off and use a slightly shorter stainless screw. Better to catch that on the bench than chase a loose cap later.
Fitment matters here, so take a minute before you order. This kit is made for Flame Thrower distributors, and there are a few variations out there. Match your existing cap's terminal layout and the number of cylinders before you pull the old one off. If you've got the old cap in hand, lay them side by side. The terminal count and post spacing should line up. When they do, you're good to go.
Who's this for? Any boater running an inboard or sterndrive with a Flame Thrower distributor who wants their ignition crisp again. It's a smart part to keep as a spring-commissioning item, and it's an even smarter one to carry as a spare on a longer cruise. A cracked cap two hours from the ramp is a bad day. A spare cap and rotor in the cuddy is a ten-minute fix. We've seen plenty of boaters turn a dead-in-the-water afternoon into a quick swap because they had this kit aboard.
What it isn't: this is a cap, rotor, and screw kit, not a full distributor and not an ignition module. It won't change your spark plug gap or your timing, those stay set by your engine's specs. If your distributor shaft has play or the advance mechanism is sticking, that's a bigger job than a cap and rotor. But for the routine wear items that go dull with hours and salt, this is exactly the part you want. Fresh cap, fresh rotor, clean spark.
Key Features
- Complete tune-up kit: distributor cap, rotor, and mounting screws in one box so you have every part for the swap
- Fits Flame Thrower distributors, the correct cap and rotor match for these marine ignition systems
- Meets or exceeds original equipment specs, so ignition performance comes back to like-new
- Marine-grade replacement built for the heat, damp, and salt of an enclosed engine box
- Mounting screws included, no separate hardware run to finish the job
- Restores clean spark to cure hard starting, rough idle, and mid-throttle misfire from a worn cap
- Twenty-minute install on most marine V8 distributors with basic hand tools
- Ideal spring-commissioning item and a smart spare to carry aboard on longer runs
Why Buy from NVN Marine
- Authorized Sierra Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sierra 18-5266 Distributor Cap, Rotor and Screw Kit |
|---|---|
| Brand | Sierra Marine |
| Manufacturer | Sierra Marine |
| Manufacturer Part Number | 18-5266 |
| UPC | 808282188375 |
| Product Type | Ignition Tune-Up Kit |
| Application | Marine inboard and sterndrive ignition |
| Fits | Flame Thrower distributors |
| Kit Contents | Distributor cap, rotor, and mounting screws |
| Distributor Cap | Included |
| Rotor | Included |
| Mounting Screws | Included |
| Sold As | Complete tune-up kit |
Frequently asked questions
What comes in the Sierra 18-5266 kit?
A new distributor cap, a matching rotor, and the mounting screws to install them. It's a complete cap-and-rotor tune-up in one box, so you won't be hunting for extra hardware.
What does this kit fit?
It's made for marine Flame Thrower distributors. Before ordering, match your existing cap's terminal count and post spacing, since there are a few variations out there. Laying the old cap next to the new one is the surest check.
How often should I replace my distributor cap and rotor?
On a marine engine, cap and rotor are wear items. Many boaters swap them every season or two as part of spring commissioning, and sooner if you're seeing hard starts or a misfire. Salt air ages them faster than automotive use.
What are the signs my cap and rotor are worn?
Hard starting, a rough or hunting idle at the dock, a stumble when you open the throttle, or a misfire when you try to get on plane. Corroded brass terminals and a cracked or carbon-tracked cap are the usual causes.
Is this a marine-specific part?
Yes. Sierra builds it to meet or exceed the original equipment part for marine ignition systems. The enclosed engine box on a boat runs hotter and damper than a car, so a proper marine replacement matters.
How hard is the install?
For most boaters it's a twenty-minute job with a screwdriver. Pull the old cap, set the new rotor, seat the new cap, and snug the screws. Take your time indexing the rotor so the cap drops on square.
Should I use dielectric grease?
Absolutely. A thin film on the brass terminals keeps salt air from corroding the contacts, which is the number one killer of marine caps. It's cheap insurance and takes thirty seconds.
The supplied screws feel too long. What do I do?
On a few marine distributors the screws can bottom out before they clamp the cap. If yours do, back them off and use a slightly shorter stainless screw. Never force a cap down on screws that aren't seating.
Does this kit change my spark plug gap or timing?
No. This is a cap, rotor, and screw kit only. Your spark plug gap and ignition timing stay set by your engine's specifications. This just restores the cap and rotor to fresh condition.
