Seaview SV4400R RailPod Un-Cut Chartplotter and MFD Rail Mount

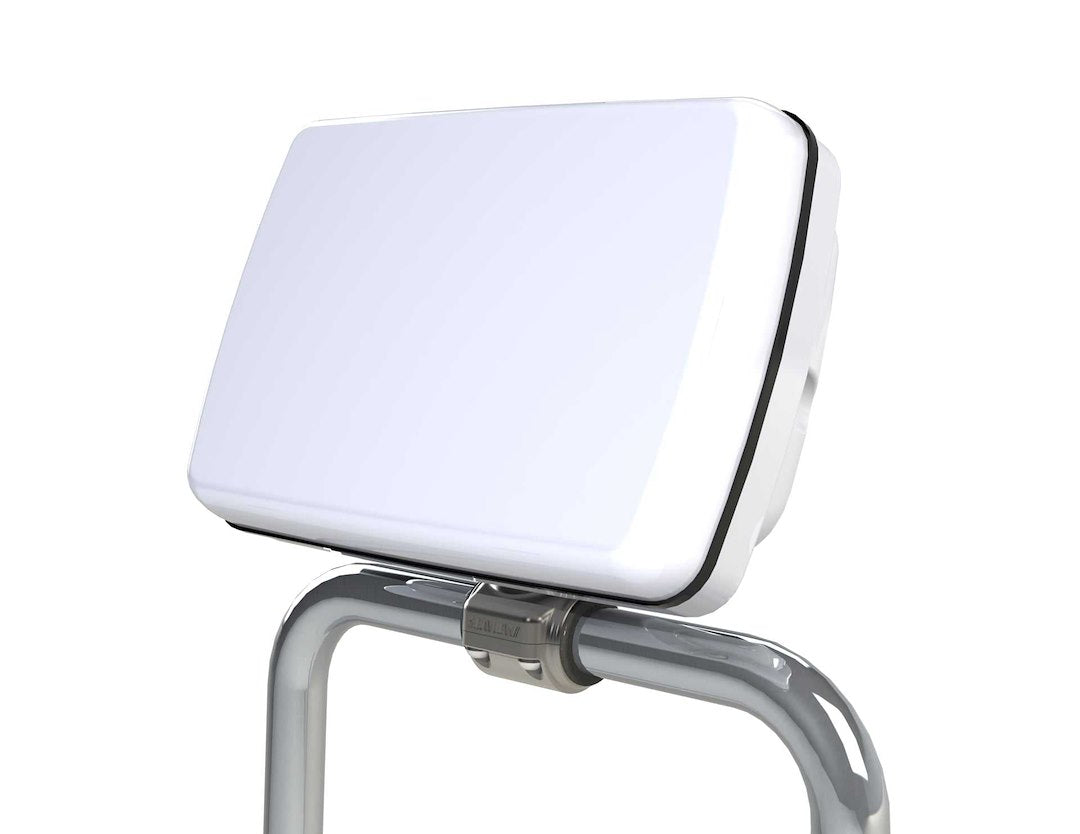

The Seaview SV4400R is a RailPod, a rail-mounted pod that gives a chartplotter or multifunction display a solid, purpose-built home up at the helm. Instead of cutting into your console or cluttering the dash, you clamp this pod onto a rail and mount the screen right where you can see it. The usable face measures 8-3/4 inches wide by 6 inches tall, which leaves room for most 7 to 9 inch displays. It's a clean answer to the age-old problem of where to put the plotter on a boat that wasn't built with a spot for it.

Here's the key thing to understand about this one. It ships un-cut. The acrylic-capped ABS face is a blank, with no pre-made opening. You cut the cutout yourself to match the exact footprint of your display. That sounds like more work, and it is a little, but it's also why the finished install looks so clean. A pre-cut pod only fits one specific unit. An un-cut pod fits whatever you're running, and you get a tight, flush bezel line around the screen instead of a generic hole with gaps around it.

The pod grabs the rail with a single base clamp, and that clamp fits all the common rail sizes, 1 inch, 1-1/8 inch, and 1-1/4 inch outside diameters. The clamp hardware is stainless steel, so it stands up to salt and spray without streaking rust down your gelcoat. Overall the pod is compact, 10.77 inches wide, 5.62 inches deep, and 7.38 inches tall, so it tucks onto a rail without hogging space or blocking your sightline forward.

On the cutting itself, take it slow. Mark your display's cutout using the template that came with your screen, or trace the bezel and step in for the flange. A fine-tooth jigsaw blade or a rotary tool cuts acrylic-capped ABS cleanly. Go easy so you don't chip the acrylic cap, then knock the edges down with a file or fine sandpaper for a finished look. Dry-fit the display before you drill the mounting holes. This is the one step worth not rushing, because the cut is what separates a sharp install from a sloppy one.

We've rigged a fair number of these, so here are a few field notes. Budget about 45 minutes for a clean install on an aluminum rail, not counting the time to cut the face. Hit the stainless clamp threads with a dab of anti-seize before you torque them down. It makes the next teardown painless and keeps the hardware from galling. If your rail is on the smaller end of the range, a wrap of rubber or a thin shim under the clamp takes up the slack and kills any wobble in chop. The single clamp is plenty steady for a lighter 7 to 9 inch display. If you're hanging something big and heavy off it, plan on a second support point so you're not relying on one clamp to fight vibration at speed.

Where does it shine? Center consoles with a grab rail, sailboats with pedestal guard rails, and any boat where console space is tight but you've got tubing to work with. It puts the screen at eye level, keeps it out of standing water in the sole, and lets you angle the whole pod on the rail to kill glare. The white finish blends with most gelcoat and hardtops. And because it's Seaview, the plastic is the good stuff, acrylic-capped ABS built to take UV and weather season after season.

One honest note. This is a mounting pod, not the display and not the wiring. You'll still run power and any network cable to the screen, and you'll supply the fasteners that hold your specific display to the cut face. But for getting a chartplotter mounted right, at the right height, on a rail, without butchering your console, the SV4400R is a clean, boat-proven way to do it.
