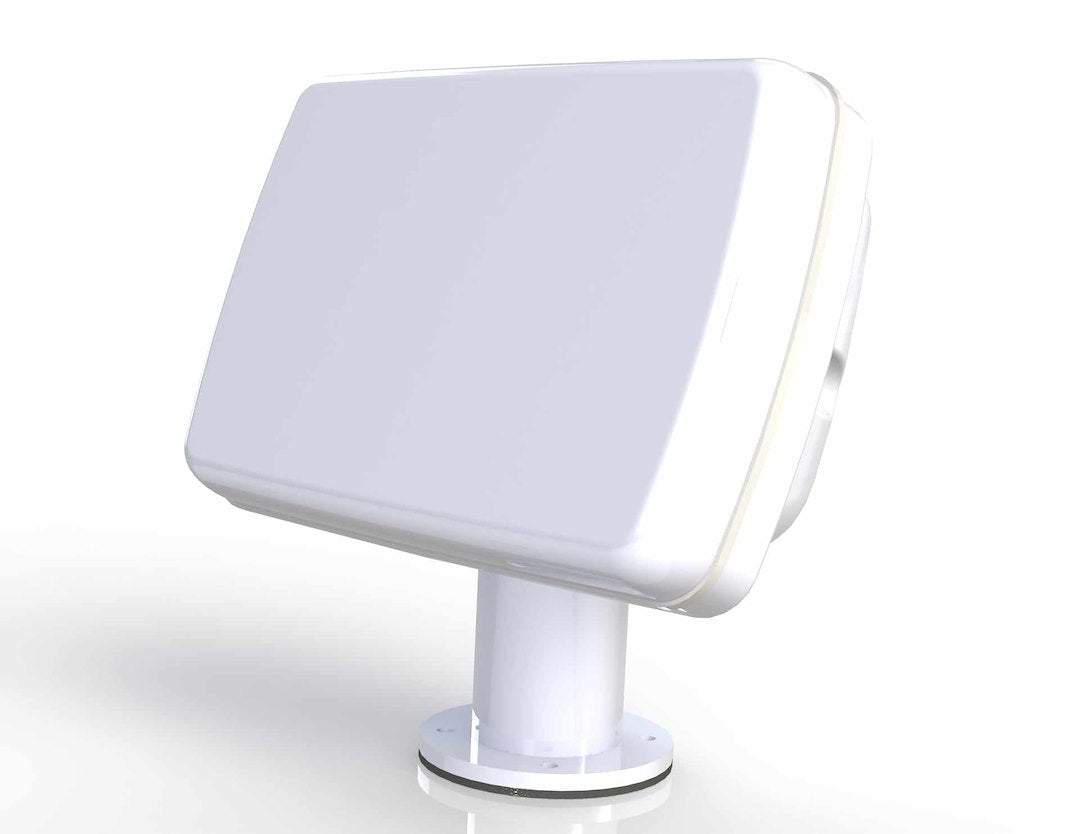

Seaview SV4400P PowerPod Un-Cut MFD Mount, 8.75-Inch Face

The Seaview SV4400P PowerPod gives you a proper, finished home for a chartplotter or multifunction display right at the helm. It's an un-cut pod, which means the face comes solid so you cut the exact opening your display needs. Molded from acrylic-capped ABS plastic on a machined aluminum base, it's built to live outside in salt air and sun instead of hiding below.

If you've ever tried to flush-mount a 7 or 9 inch display into a thin, curved fiberglass dash, you know the problem. There often isn't enough flat real estate, the dash curves right where you need it flat, or the back of the unit fouls the wiring behind the console. A PowerPod solves that by raising the display up and forward on its own pedestal. You get a solid mounting surface angled toward your eyes, room behind the face for connectors and cable, and a clean look instead of a hacked-up dash.

The usable face measures 8-3/4 inches wide by 6 inches tall. That's the working area you have to cut into, and it's sized for most 7 to 9 inch displays once you account for their bezels. Overall the pod runs 10.77 inches wide, 5.62 inches deep, and 7.38 inches tall, so measure your console before you commit. The 5.62 inch depth clears the back of most displays in that size range. But check your unit's connector stack. Some displays have rear-facing plugs that add an inch or more, and you want the cables breathing, not crammed against the pod wall.

Because it ships un-cut, you template your display's cutout onto the flat face and cut it yourself with a jigsaw or a rotary tool. Take your time here. Mask the face with tape to protect the acrylic cap from scratches, and cut just inside your line so you can file down to a clean, tight fit. The acrylic-capped ABS cuts cleanly and won't crack the way brittle plastics do, but a slow blade and a careful line make all the difference.

The aluminum base is pre-drilled for a flat mounting surface. On a flat dash or hardtop it drops right on. On a curved surface you'll want to cut a couple of shims or a small backing plate so the base sits flat and doesn't rock. And here's a tip from folks who run this pod on outboard boats: high vibration can work the base loose over a season, so a backing plate under the dash plus a dab of thread locker on the fasteners is cheap insurance. Bed the base to the dash with a quality marine adhesive sealant, not plain silicone, so the pod-to-dash joint stays watertight and still comes apart for service down the road.

There's a cable pass-through for your power, network, and transducer leads. If you're running a full NMEA 2000 backbone plus power plus a transducer cable, that's a fat bundle, so plan your routing and open the hole up a little before the pod is bedded down. It's a lot easier to do on the bench than after it's sealed to the dash.

The white ABS matches most helm and console gelcoat, and plenty of owners paint the aluminum base to match their boat exactly. One honest note: like any acrylic-capped plastic living in strong sun, the cap can haze over a few seasons in places like Florida. A yearly pass with a plastic polish keeps it clear and looking new. It's a mount you'll keep, not a throwaway part, so a little maintenance goes a long way.

Seaview has been building helm pods and mounts for power and sailboats, pleasure and commercial, for a long time, and it shows in the fit and finish. If you want your new chartplotter mounted right, angled toward the captain, and wired clean, the SV4400P is a solid way to get there. Cut it to fit, bed it properly, and it'll carry your display for the life of the boat.
