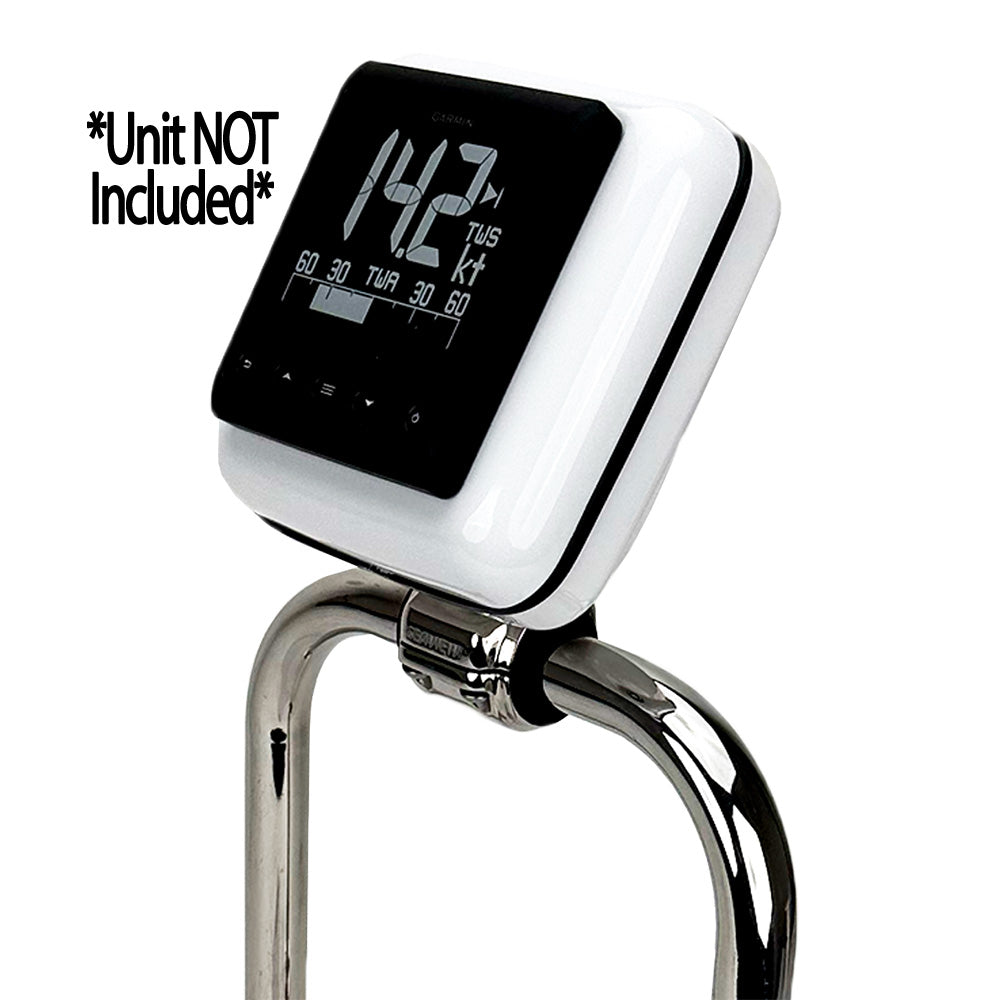

Seaview SV4100R RailPod Chartplotter and MFD Rail Mount

Seaview builds mounts for one reason. To get your electronics exactly where you want them, solid enough to trust in a chop. The SV4100R RailPod does that for a chartplotter or a multifunction display, clamping straight onto a rail so you're not sacrificing dash space you don't have. If your helm is already crowded, or you run a center console where the console face is full, this is how you add a screen without cutting into the boat.

Here's how it works. The pod clamps to standard round tubing, 1 inch, 1-1/8 inch, or 1-1/4 inch, using a single stainless steel base clamp. That covers most T-top rails, hardtop frames, leaning post grab rails, and arch tubing you'll find out there. Once it's locked down, you've got a flat 4-1/2 inch by 4-1/2 inch face to work with. That's the usable area, and it's sized for compact displays in the 4 to 7 inch class where a rail pod makes the most sense.

The un-cut part matters. This RailPod ships with a solid face, no pre-cut opening. You cut it to match your specific display's mounting template. That's a good thing. It means the pod isn't locked to one brand or one bezel shape, and you get a tight, custom opening instead of a loose universal hole. Measure twice, mark from the display's own template, and cut once. If you're not comfortable with that, any rigger or marine electronics shop can do it in a few minutes.

Construction is acrylic-capped ABS plastic in white. The acrylic cap gives you a harder, UV-facing outer surface over the ABS core, which holds up better to sun and salt than bare plastic. The clamp hardware is stainless. A couple of real-world tips from installs we've seen. If you're clamping onto a polished aluminum rail, run a thin strip of rubber or rigging tape under the clamp so it doesn't mar the finish and so it grips without slipping. And give the stainless hardware a fresh-water rinse now and then if you run in salt, same as the rest of your deck gear.

One honest note on any single-base rail mount, this one included. A single clamp point is clean and simple, but a heavier display out at the end of a long unsupported rail can transmit vibration at speed on a planing hull. If you're mounting a larger screen or running hard offshore, add a support strut or pick a rail section close to a welded joint where there's less flex. For the compact displays this pod is really meant for, that's rarely an issue.

Who's this for? Center console owners who've run out of dash. Bay boat and flats anglers who want the plotter up on the T-top rail and out of the spray. Pontoon owners adding a small chartplotter to a bimini or rail. Sailors who want a repeater screen mounted on a pushpit or guard rail. Anywhere you've got standard round tubing and need a screen somewhere the factory didn't plan for, a RailPod solves it. And because you cut the face yourself, it works with whatever compact display you're already running.

Overall the pod measures 6 inches wide, 4.06 inches deep, and 5.91 inches tall, so check your clearances before you commit to a spot. You want the screen readable from the helm, the cables able to route down through or behind the rail, and nothing fouling a throttle or a grab rail. Dry-fit it first, then bring the display's cable straight out the back of the pod and down along the tube. Leave yourself a service loop so you can pull the screen for storage or winterizing without fighting the wire. A little planning here is the difference between an install that looks factory and one that looks like an afterthought.
