Seaview SV1800S SailPod Un-Cut Pedestal Guard Mount, White
Seaview SV1800S SailPod Un-Cut Pedestal Guard Mount, White — Product description

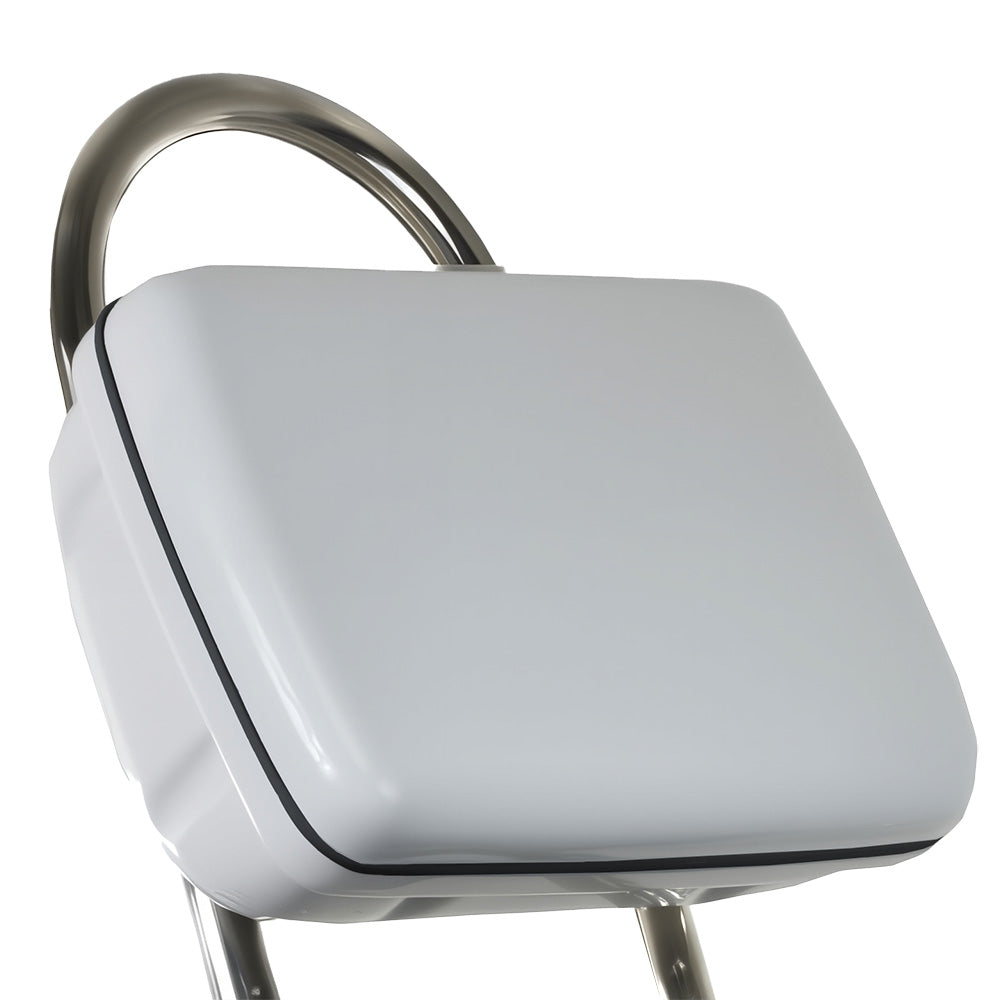

The Seaview SV1800S SailPod puts a single chartplotter or multifunction display right at the wheel on your sailboat. It clamps onto the pedestal guard rail, comes as an un-cut white ABS pod you trim to fit your screen, and gives that display a solid, weatherproof home at eye level.
The Seaview SV1800S SailPod solves an old sailboat problem. You want your chartplotter or multifunction display up at the wheel, right where you can read it while you steer, but there's nowhere clean to put it. This pod clamps onto the stainless guard rail around your pedestal and gives that display a solid, weatherproof home at eye level where it actually helps you sail.
It ships as an un-cut pod, which is the whole point. The faceplate comes blank so you can cut an opening sized exactly to your display's bezel. The usable face measures 11.13 inches wide by 8 inches high, so you've got room for a single chartplotter, radar screen, or MFD that fits inside that window. You mark your cutout, cut it, drop the unit in, and seal it up. One clean install, no ugly brackets hanging off the pedestal.
Because it's un-cut, you're not locked into one screen forever. Whatever single unit you're running now, you cut the pod to suit it. Upgrade your electronics a few years down the road and you may only need a fresh faceplate cut instead of a whole new mount. That's a nice bit of future-proofing on a boat where nothing stays the same for long.
Fitment matters here, so measure before you order. The two stainless steel clamps grip pedestal rails from 1 to 1-1/4 inch in diameter, which covers the common range on most sailboat steering guards. It handles guardrails up to 11 inches wide. If your boat runs older tapered posts closer to 1 inch, you may need a thin shim to take up the slack. And if your pedestal guard is wider than 11 inches, this isn't the pod for you, so check that number first.
The pod is molded from acrylic-capped ABS plastic. That acrylic cap is what stands up to sun and salt over the seasons, and it's why the finish holds its shine instead of chalking out after one summer. White is a natural match for most gelcoat and pedestal hardware. Worth knowing: like any white surface in strong tropical sun, it'll fade slowly over the years, so if your boat lives in the islands, keep that in the back of your mind.
Mounting is straightforward if you take your time. Two stainless clamps and a rubber bushing do the work, and the bushing keeps the pod from marring or slipping on the rail. A couple of tips from installs we've watched go sideways: when you cut the faceplate, use a template and a step bit and keep your speed moderate, because ABS can crack if you rush it with a high-speed bit. Once it's mounted, put a dab of threadlocker on the clamp bolts. A pedestal vibrates underway, and those bolts can walk loose over a season if you don't. Run a bead of butyl tape under the clamp feet too, so water can't find its way in at the rail.
Who's this for? Any sailor running a single helm display who's tired of squinting down at a flush-mounted screen or fighting a flimsy suction mount. Cruisers, racers, weekend sailors, doesn't matter. If you've got a pedestal guard in the right size range and a display that fits the 11.13 by 8 inch face, this pod puts your electronics right where they belong. It's not built for a double-display stack or an oversized glass helm, so if you're running a big multi-screen setup you'll want a larger solution. For a clean single-screen mount at the wheel, it's hard to beat.
Seaview builds this pod to live outside full-time. Stainless hardware, UV-stable materials, and a design that's been proven on sailboat pedestals for years. Cut it once, mount it right, and it'll hold your display steady through a lot of seasons on the water.
Key Features
- Usable face measures 11.13 inches wide by 8 inches high, room for a single chartplotter, radar, or multifunction display at the helm
- Un-cut faceplate ships blank so you cut a custom opening sized exactly to your display's bezel
- Acrylic-capped ABS plastic resists UV and salt spray and holds its finish instead of chalking out
- Fits pedestal rails from 1 to 1-1/4 inch diameter, the common range on sailboat steering guards
- Handles pedestal guardrails up to 11 inches wide
- Two stainless steel clamps plus a rubber bushing grip the rail without marring or slipping
- White finish matches most gelcoat and pedestal hardware
- Overall footprint 13.2 inches wide by 7.64 inches deep by 9.98 inches high
- Raises the display to eye level at the wheel for a clear sightline while you steer
Why Buy from NVN Marine
- Authorized Seaview reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Seaview SV1800S SailPod Un-Cut Pedestal Guard Mount, White |
|---|---|
| Brand | Seaview |
| Manufacturer Part Number | SV1800S |
| UPC | 850073256367 |
| Mount Type | SailPod Pedestal Guard Mount |
| Faceplate | Un-Cut |
| Color | White |
| Material | Acrylic-Capped ABS Plastic |
| Usable Face Dimensions | 11.13 in W x 8 in H |
| Overall Dimensions (W x D x H) | 13.2 in W x 7.64 in D x 9.98 in H |
| Rail Diameter Compatibility | 1 to 1-1/4 in |
| Guardrail Compatibility | Up to 11 in |
| Mounting Hardware | Two Stainless Steel Clamps |
| Bushing | Rubber |
| Intended Use | Chartplotter / Multifunction Display Mounting |
Frequently asked questions
What does un-cut mean on this SailPod?
The faceplate ships blank, with no display opening cut into it. You measure your screen, mark the cutout, and cut the opening yourself so it fits your exact display. That way one pod works for a range of screens rather than being locked to a single model.
What size display fits this pod?
The usable face is 11.13 inches wide by 8 inches high. Any single chartplotter, radar screen, or multifunction display whose bezel fits inside that window will work. It's sized for one unit, not a double-display stack.
What rail and guardrail sizes does it fit?
The two stainless clamps grip pedestal rails from 1 to 1-1/4 inch in diameter, and it handles guardrails up to 11 inches wide. Measure your pedestal guard before ordering, since anything wider than 11 inches won't fit.
How do I keep the faceplate from cracking when I cut it?
It's acrylic-capped ABS, which cuts cleanly if you don't rush it. Use a template, a step bit, and a moderate speed. High-speed bits build heat and can crack the plastic, so take your time on the cutout.
Will it stay put on a pedestal that vibrates underway?
Yes. The two stainless clamps and rubber bushing hold it firmly and keep it from slipping on the rail. Put a dab of threadlocker on the clamp bolts and check them once a season, since pedestal vibration can walk hardware loose over time.
How do I keep water out at the rail?
Run a bead of butyl tape under the clamp feet when you mount it. That seals the contact points against the rail so water can't work its way in. Seal around the display opening as well when you set the unit in.
What is the pod made of?
Acrylic-capped ABS plastic. The ABS gives it strength and the acrylic cap handles UV and salt, which is why it holds its finish out in the weather season after season.
Does it come pre-drilled or pre-cut for a specific screen?
No. This is the un-cut version, so the faceplate is a blank. You cut the display opening to match your own screen. If you want a version already cut for a specific model, that's a different part number.
What color is it?
White, which is a natural match for most gelcoat and pedestal hardware. Like any white surface, it will fade slowly under years of strong tropical sun, so keep that in mind if your boat lives in the islands.
What are the overall dimensions?
The overall pod measures 13.2 inches wide by 7.64 inches deep by 9.98 inches high, with a usable face of 11.13 inches wide by 8 inches high. Check the overall footprint against the space you have at the helm.
