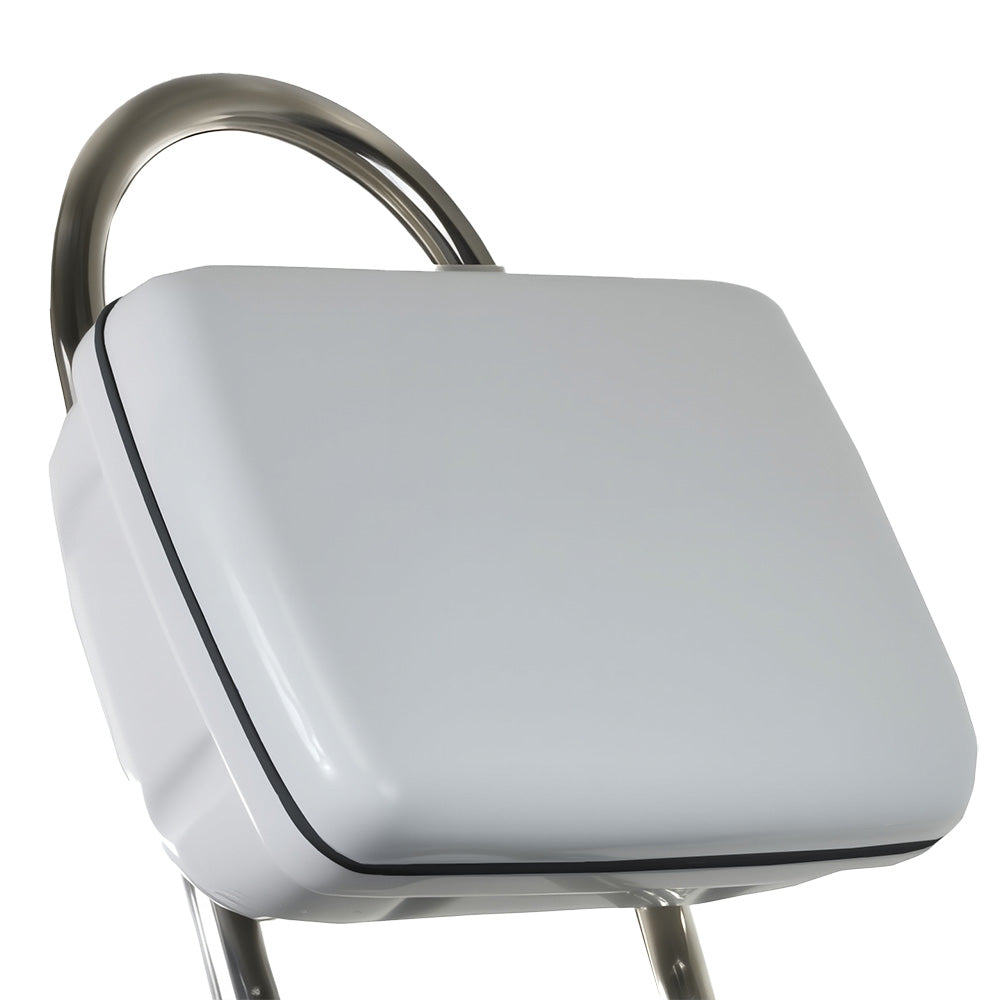

Seaview SailPod SV1050S Un-Cut Pedestal Guard Mount for Chartplotters

A SailPod is the clean way to get a chartplotter or multifunction display up at the wheel on a sailboat, mounted right on the pedestal guard where you can actually see it and reach it. This Seaview SV1050S is the un-cut version, so you cut the faceplate to fit whatever display you're running. White acrylic-capped ABS, two stainless steel clamps, and it's built to live outside season after season.

The un-cut part is the key thing to understand before you buy. The faceplate ships solid, with a usable face of 12-3/4 inches wide by 8-3/4 inches tall. That's your canvas. You trace your display's cutout onto it, then cut the opening yourself or have your installer do it. Take your time here. Template it first on cardboard, mark it twice, and go slow on the acrylic cap so it doesn't chip. The payoff is a mount that fits your exact instrument instead of a pre-cut hole that only suits one model. Running a single big chartplotter? Cut one opening. Want a plotter and a small instrument side by side? The un-cut face gives you the room to lay it out the way you want, as long as everything fits inside that 12-3/4 by 8-3/4 inch window.

Fitment comes down to two numbers. The clamps grip pedestal rails from 1 inch to 1-1/4 inch in diameter, which covers most standard wheel-steering pedestal guards. And the pod spans guardrails up to 13.3 inches apart. Measure the width of your guard where you want the pod to sit before you order. If your rail spread is wider than 13.3 inches, this isn't the pod for your boat. Overall it measures 15-1/4 inches wide, 8.66 inches deep, and 11.12 inches tall, so picture that block sitting at the aft edge of the cockpit and make sure it clears your engine controls and leaves room for your hands on the wheel.

It's molded from acrylic-capped ABS plastic, the same approach a lot of quality helm enclosures use. The ABS gives the shell its structure, and the acrylic cap gives it a hard, finished outer surface that shrugs off UV and spray far better than raw plastic. The white color reflects heat too, which helps keep your display a little cooler in direct sun. Give it a wipe now and then, throw on an occasional coat of wax, and it'll keep looking sharp for years.

In the box you get the pod, two stainless steel clamps, and a rubber bushing that protects the rail and keeps everything from shifting once it's snugged down. The install itself is straightforward. Clamp the pod to the guard, cut your faceplate, feed your display cable up through the pod, and wire in behind the screen. Most of the work is the cutting and the cabling. Seal around your display's edge with a marine sealant when you set it in, dress the cable so it isn't strained where it enters the pod, and snug the clamps down evenly so the pod sits square on the guard. If you're comfortable rigging a display, you can mount one of these in an afternoon.

So who's it for? Sailors who want a real, permanent home for a chartplotter or MFD at the helm instead of a swing bracket that rattles loose every season. It holds the screen at eye level, angled so you can read it from behind the wheel, and it keeps the back of the unit and all its wiring out of the weather. That's a real upgrade over squinting at a plotter mounted flat on the cockpit sole or bracketed low where the sun washes it out. What it isn't: a clamp mount for a handheld, or a dash mount for a powerboat console. It's a pedestal-guard pod, plain and simple. For a sailboat helm, it's hard to beat.
