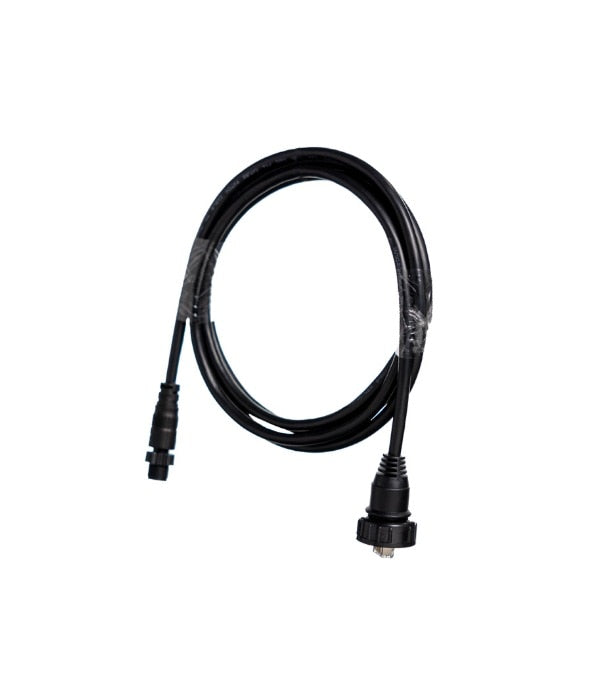

Seakeeper Ride 2m Ethernet Cable for Garmin MFDs

The Seakeeper Ride 2m Ethernet Cable is the factory assembly that ties your Ride stabilization system into your helm display. On its own, Ride can run off its own 5-inch touch screen. But most boaters don't want another screen fighting for space on an already crowded dash. This cable is how you skip that. Run it once, and you control and monitor Ride straight from the multifunction display you already look at all day.

Quick refresher on what this feeds. Seakeeper Ride is a vessel attitude control system that works at the transom to settle pitch, roll, and list while you're underway, so the boat runs flatter and the crew stays comfortable. The brains of that system need to talk to a screen. This cable is the physical link that lets your main helm display be that screen.

Here's the practical upside. Instead of glancing down at a separate controller to check trim, list, and running attitude, you see it all on the same screen that's showing your chart and sounder. You set your ride from the helm. You watch how the system is working in real time. And when you're docking or running an inlet, you're not hunting for a second display to make an adjustment. It's one less thing to mount, wire, and find room for. On a center console or express cruiser where dash real estate is precious, that matters more than it sounds.

One thing to get right before you order. Seakeeper builds a separate cable for each display family it supports, and they aren't interchangeable. This one is cut for the specific brand named in the product title. So match the cable to the display you actually run at the helm. If you've got mixed displays or you're not sure which family yours falls under, check the model before you buy. Ordering the wrong version is the most common hiccup we see, and it's an easy one to avoid with a two-minute check.

Now the install. The cable is 2 meters, which is a hair under 6 and a half feet. On a lot of boats that's plenty, especially when the Ride controller sits reasonably close to the helm. But measure your run first. If your controller is mounted back near the transom and your display is forward on a big console, 2 meters can come up short once you account for routing around bulkheads and up through the dash. It's worth pulling a tape before you commit. A run that's tight in the driveway gets tighter once it's fished through a rigging tube.

The connector and the cable itself are built for the boat, not the office. That means a locking connection that won't shake loose under the pounding a planing hull takes offshore, and jacketing meant to live in a damp bilge or console. One tip from the field: hit the connection with a little dielectric grease when you make it up. Ethernet ports don't love salt air, and a dab of grease keeps corrosion from creeping into the pins over a season or two. Small step, saves a headache later.

A couple of honest notes. First, make sure your display is running current software before you plug in. Older units sometimes need a firmware update before they'll show Ride's stabilization data, and it's a lot easier to handle that at the dock than to troubleshoot it underway. Second, Seakeeper generally sells this cable alongside a full Ride system order rather than as a loose accessory, so if you're building out a new install, spec it in with the rest of the package. If you're replacing a damaged cable or extending an existing setup, reach out and we'll help you confirm you're getting the exact right assembly for your helm.
