Sea-Dog Watertight Inline Fuse Holder 14 AWG 15A
Sea-Dog Watertight Inline Fuse Holder 14 AWG 15A — Product description

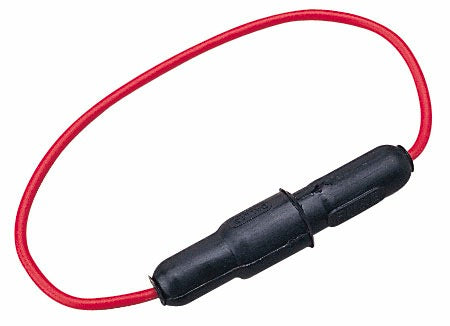

The Sea-Dog AGC watertight inline fuse holder is a clean, sealed way to protect a single 12-volt circuit right at the wire. It's pre-wired with 14-gauge leads, ships with a 15-amp AGC fuse already installed, and the snap-tight PVC housing keeps spray and moisture out of the connection.
Every accessory circuit on a boat needs protection, and this Sea-Dog inline fuse holder is the simple, sealed way to add it. It's built around a standard AGC glass fuse and ships with a 15-amp fuse already installed, so you can wire in a bilge pump, a set of courtesy lights, a stereo feed, or a small electronics run and know the circuit is covered.
The housing is molded PVC with a snap-tight closure that seals around the fuse. That matters in a bilge or a splash zone, where a bare fuse block would corrode in a season. Both leads are 14-gauge wire, which suits circuits in the 15-amp range without the voltage drop you'd get from thinner wire.
Wiring it in is quick. Cut the positive lead, strip both ends, and join them to the fuse holder leads with heat-shrink butt connectors. Mount it somewhere you can reach, because you'll swap that fuse eventually. Keep a couple of spare AGC fuses aboard and you're set for the season.
Key Features
- Ships with a 15-amp AGC fuse installed, ready to protect a single circuit out of the package
- 14-gauge (14 AWG) pre-wired leads sized for accessory circuits in the 15-amp range
- Snap-tight PVC housing seals the fuse against spray, splash, and bilge moisture
- Uses standard AGC glass fuses, easy to source and swap anywhere
- Single inline holder wires in with two butt connectors, no fuse block required
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog AGC Watertight Inline Fuse Holder, 14 Gauge, 15 Amp |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420553-1 |
| UPC | 035514420662 |
| Fuse Type | AGC |
| Wire Gauge | 14 Gauge |
| Amperage | 15 Ampere |
| Connection Type | Snap Tight |
| Housing Material | PVC |
| Waterproof Rating | Watertight |
| Fuse Included | Yes |
| Quantity | Single |
Frequently asked questions
What size fuse does it come with?
It ships with a 15-amp AGC fuse already installed. You can drop in any standard AGC glass fuse rated for the circuit you're protecting.
Is it really watertight?
The snap-tight PVC housing seals around the fuse to keep out spray and splash. It's built for bilge and open-deck use, where a standard fuse block would corrode.
What gauge are the leads?
Both leads are 14-gauge (14 AWG) wire, sized for circuits in the 15-amp range.
How do I wire it in?
Cut the positive lead of the circuit you want to protect, then join each end to the fuse holder leads with heat-shrink butt connectors. Mount it where you can reach to change the fuse.
