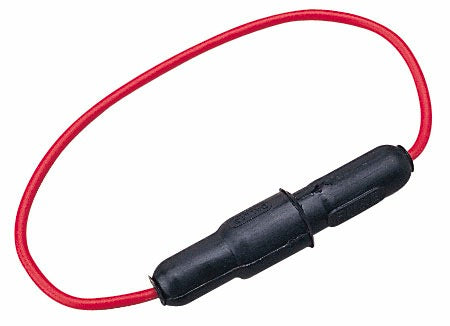

Sea-Dog Watertight Inline Fuse Holder, 12 AWG, 20A
Sea-Dog Watertight Inline Fuse Holder, 12 AWG, 20A — Product description
The Sea-Dog AGC watertight inline fuse holder gives you simple, sealed overcurrent protection for a new accessory circuit. It uses common AGC glass fuses, ships with a 20 amp fuse installed, and the PVC housing shrugs off spray and damp. Snap it inline on your 12 gauge run and you're protected.
If you're running a new accessory circuit and want fuse protection you can mount just about anywhere, this Sea-Dog inline fuse holder gets the job done. It's built around the common AGC glass fuse, so replacements are easy to find at any auto parts or marine store. The housing is watertight PVC, which means you can tuck it behind a console, down near the bilge, or anywhere spray and damp air like to hang around.
The snap-tight connection keeps the fuse sealed and secure once it's closed up, and the 12 gauge leads are ready to splice into your circuit. It ships with a 20 amp AGC fuse already installed, so you're covered right out of the package for accessories in that range. Think livewell pumps, small electronics, courtesy lights, and similar loads. Wire it inline on the positive side, close to the power source, and you've got clean overcurrent protection that won't quit when things get wet. One holder per pack.
Key Features
- AGC glass fuse format, so replacement fuses are cheap and easy to find anywhere
- Watertight PVC housing stands up to spray, damp, and bilge conditions
- Snap-tight connection seals the fuse in and keeps water out
- 12 gauge leads ready to splice inline on your accessory circuit
- Ships with a 20 amp fuse installed, protecting your load right out of the package
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | AGC Watertight Inline Fuse Holder, 12 Gauge Wire, 20 Ampere, Snap Tight Connection, With Fuse, PVC, Single |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420554-1 |
| UPC | 035514420679 |
| Fuse Type | AGC |
| Wire Gauge | 12 Gauge |
| Amperage | 20 Ampere |
| Connection Type | Snap Tight |
| Housing Material | PVC |
| Fuse Included | Yes |
| Rating | Watertight |
| Quantity | Single |
Frequently asked questions
What kind of fuse does this holder use?
It takes standard AGC glass fuses and ships with a 20 amp fuse already installed. Since it accepts common AGC fuses, you can drop in a different rating to match your circuit.
Is it really waterproof?
The housing is watertight PVC and the snap-tight connection seals the fuse in, so it holds up in spray-prone and damp spots. Mount it on the positive side, close to your power source, for best results.
What size wire does it have?
It comes with 12 gauge leads, ready to splice inline into your accessory circuit.
Does it come with a fuse?
Yes. A 20 amp AGC fuse is installed out of the package. The holder is sold as a single unit, one per pack.
What can I protect with a 20 amp fuse?
A 20 amp rating suits accessories drawing up to that load, like livewell pumps, courtesy lights, and small electronics. Swap in a fuse that matches your circuit's rating if you need something different.
