Sea-Dog SD-32 50A Circuit Breaker | Short Stop 830356
Sea-Dog SD-32 50A Circuit Breaker | Short Stop 830356 — Product description

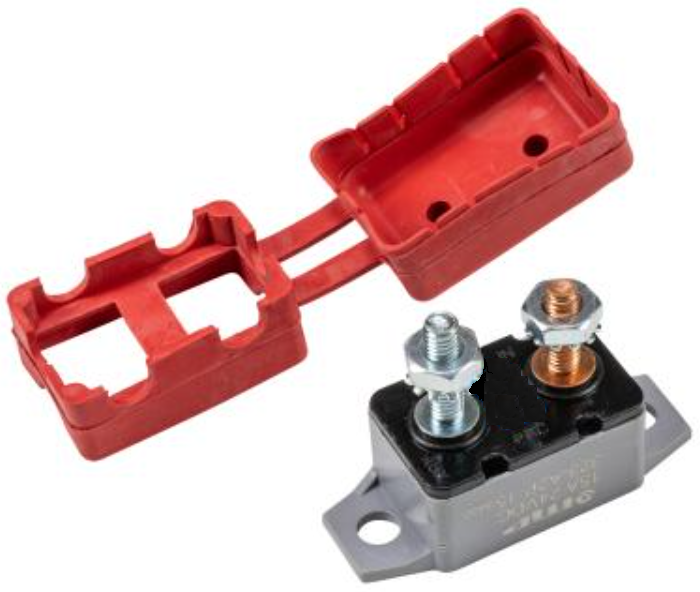

The Sea-Dog SD-32 Short Stop is the little resettable breaker you wire in and forget about. It's a 50 amp, 28 volt DC circuit breaker with a manual reset button, so if something trips it, you just push it back in. IP66 sealed and it ships with a cover.
The Sea-Dog SD-32 Short Stop is a resettable circuit breaker built to protect a 50 amp DC circuit, and it's the kind of part you install once and don't think about again. It's rated to 28 volts DC, which covers 12V and 24V systems with room to spare. When it trips, you just push the manual reset button. No fuse to hunt for, no spare to keep in the glovebox.
The housing is nylon and polycarbonate, so it shrugs off the damp and the salt air. It carries an IP66 protection rating and ships with a cover, which matters if you're mounting it somewhere it'll catch spray. The terminals are No. 10-32 studs, standard for ring-terminal wiring. It meets SAE J553 and J1171 standards.
Good fit for windlasses, trolling motor circuits, pumps, or any 50 amp DC load that needs a reset you can reach. Wire it in and move on.
Key Features
- 50 amp rating protects DC circuits up to 28 volts, covering 12V and 24V systems
- Manual reset button pops back in after a trip, no fuse to replace
- IP66 protection rating and included cover stand up to spray and damp locations
- Nylon and polycarbonate housing resists salt air and corrosion
- No. 10-32 stud terminals meet SAE J553 and J1171 standards
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | SD-32 Resettable Circuit Breaker; 50 Amp; 28 Volt DC; Manual Reset; Nylon/ Polycarbonate; No 10-32 Stud Terminal; Short Stop; SAE J553/ J1171 Standard; IP66 Protection Rating; With Cover; Single |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 830356 |
| UPC | 035514830454 |
| Amperage | 50 Amp |
| Voltage | 28 Volt DC |
| Reset Type | Manual Reset |
| Housing Material | Nylon/Polycarbonate |
| Terminal | No. 10-32 Stud |
| Series | Short Stop |
| Standards | SAE J553/J1171 |
| Protection Rating | IP66 |
| Cover | Included |
| Quantity | Single |
Frequently asked questions
What voltage and amperage is this breaker rated for?
50 amps at 28 volts DC. That covers both 12V and 24V marine systems comfortably.
How do I reset it after it trips?
It's a manual reset. Just push the reset button back in once you've cleared whatever caused the trip.
Is it sealed for a wet install?
Yes. It carries an IP66 protection rating and comes with a cover, so it holds up to spray and damp locations.
What terminal type does it use?
No. 10-32 stud terminals, which take standard ring terminals for your wiring.
