Sea-Dog SD-32 20A Resettable Circuit Breaker
Sea-Dog SD-32 20A Resettable Circuit Breaker — Product description

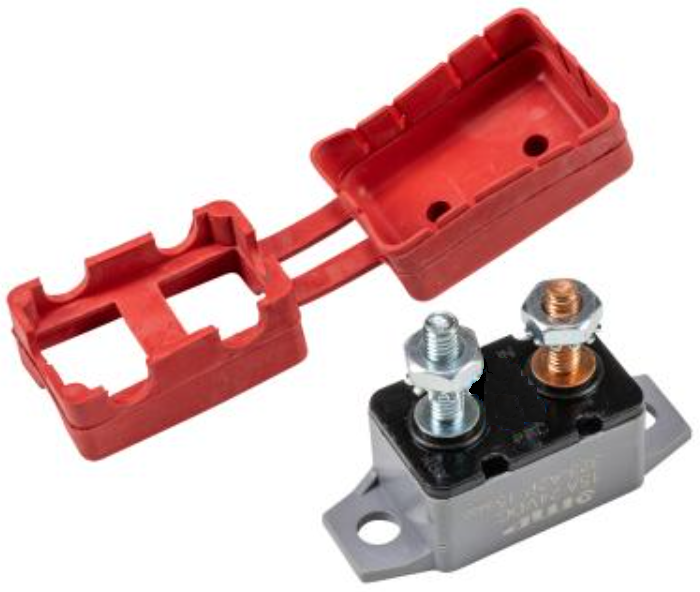

The Sea-Dog SD-32 is a 20 amp resettable circuit breaker built for the wet, vibrating reality of a boat's DC system. Manual reset, an IP66-rated cover, and No. 10-32 stud terminals mean it protects a circuit and stays put. Simple, marine-grade protection you wire in and forget about.
Every DC circuit on your boat needs protection, and the Sea-Dog SD-32 handles that job without any fuss. It's a 20 amp resettable breaker from the Short Stop series, rated for 28 volt DC systems, so it covers the 12V and 24V accessories most of us run. Pop a breaker? Just push the button to reset. No spare fuses to dig for in a hatch at dusk.
The housing is nylon and polycarbonate, and the unit carries an IP66 protection rating with its cover in place. That means it shrugs off spray and washdown, which is exactly what you want on a helm, a console, or back near the batteries. It wires in with No. 10-32 stud terminals, and it meets SAE J553 and J1171 standards for marine and automotive use.
It's sold as a single breaker. Good for bilge pumps, lighting circuits, electronics, and just about any accessory run that pulls up to 20 amps.
Key Features
- 20 amp rating protects accessory circuits from overload and short faults
- Manual reset button clears a trip with a push, no spare fuses to carry
- IP66-rated cover shrugs off spray and washdown at the helm or in the bilge
- No. 10-32 stud terminals give a solid, vibration-resistant wire connection
- Meets SAE J553 and J1171 standards for marine and automotive DC systems
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog SD-32 Short Stop 20A Resettable Circuit Breaker |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 830352 |
| UPC | 035514830416 |
| Series | Short Stop (SD-32) |
| Type | Resettable Circuit Breaker |
| Amperage | 20 Amp |
| Voltage | 28 Volt DC |
| Reset Type | Manual Reset |
| Material | Nylon / Polycarbonate |
| Terminal | No. 10-32 Stud Terminal |
| Standard | SAE J553 / J1171 |
| Protection Rating | IP66 |
| Cover | With Cover |
| Quantity | Single |
Frequently asked questions
What voltage is the Sea-Dog SD-32 rated for?
It's rated for 28 volt DC, so it works with both 12V and 24V systems on your boat.
How do I reset the breaker after it trips?
It's a manual reset. Once you've fixed whatever caused the trip, just push the reset button on the breaker to restore the circuit.
Is this breaker waterproof?
With its cover in place it carries an IP66 protection rating, so it handles spray and washdown. Mount it where it won't sit submerged.
What terminals does it use?
It uses No. 10-32 stud terminals for the wire connections.
Does it come with a cover?
Yes, it ships with a cover, which is what gives it the IP66 protection rating.
