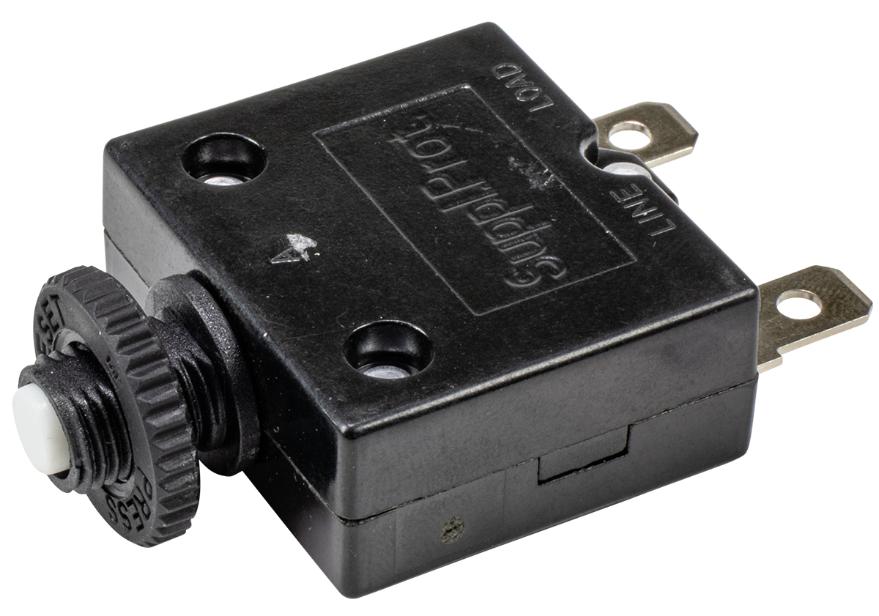

Sea-Dog SD-13 10A Thermal Circuit Breaker 830153
Sea-Dog SD-13 10A Thermal Circuit Breaker 830153 — Product description
The Sea-Dog SD-13 is a 10-amp push-to-reset thermal circuit breaker for protecting a single DC circuit at the helm. It's ignition protected to UL1500, panel mounts in 3/16 inch of depth, and wires in fast with 1/4-inch quick connect terminals.
The Sea-Dog SD-13 is a 10-amp thermal circuit breaker built to protect a single marine circuit on your boat. It's a push-to-reset design, so when it trips you just press the white button back in and you're running again. No fuses to carry, no spares to lose at the worst possible time.
It's rated for 250 volts AC and 50 volts DC, which covers the DC accessory circuits most of us wire up at the helm. Pumps, lights, electronics, that sort of thing. The housing is bakelite with 1/4-inch quick connect terminals, so wiring it in is quick with standard spade connectors.
It panel mounts with just 3/16 inch of depth behind the dash, which matters when space is tight on a console. And it's ignition protected to UL1500, meaning it's safe to install in engine compartments and other spaces where fuel vapors can collect. It's UL 1077 and UL/cUL listed too. If you're building out a switch panel or replacing a tired breaker, this one's a straightforward, reliable choice.
Key Features
- 10 amp rating protects a single DC accessory circuit from overload
- Push-to-reset white button restores the circuit after a trip, no fuses to replace
- Ignition protected to UL1500, safe for engine compartments and fuel-vapor areas
- 1/4-inch quick connect terminals wire in fast with standard spade connectors
- Shallow 3/16-inch panel depth fits tight dashes and consoles
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog SD-13 Thermal Circuit Breaker, 10 Amp, Push-To-Reset |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 830153 |
| UPC | 035514830133 |
| Series | SD-13 |
| Type | Thermal Circuit Breaker |
| Amperage | 10 Amp |
| Voltage Rating | 250 Volt AC / 50 Volt DC |
| Reset Type | Push-To-Reset |
| Color | Black With White Button |
| Housing Material | Bakelite |
| Terminals | 1/4 Inch Quick Connect |
| Mount Type | Panel Mount |
| Panel Depth | 3/16 Inch |
| Certifications | UL 1077, UL/cUL, Ignition Protected UL1500 |
| Quantity | Single |
Frequently asked questions
What does push-to-reset mean on this breaker?
When the breaker trips from an overload, the white button pops out and the circuit opens. You press the button back in to restore power. There's no fuse to replace.
Is the SD-13 ignition protected?
Yes. It's ignition protected to UL1500, so it's safe to install in engine compartments and other spaces where fuel vapors may be present.
How much space does it need behind the panel?
Just 3/16 inch of panel depth, which makes it a good fit for tight dashes and consoles where clearance is limited.
What kind of terminals does it use?
It has 1/4-inch quick connect terminals, so you can wire it with standard crimp-on spade connectors.
What are the voltage and amp ratings?
It's rated for 10 amps at 250 volts AC or 50 volts DC.
