Sea-Dog SD-13 10A Push-To-Reset Circuit Breaker
Sea-Dog SD-13 10A Push-To-Reset Circuit Breaker — Product description

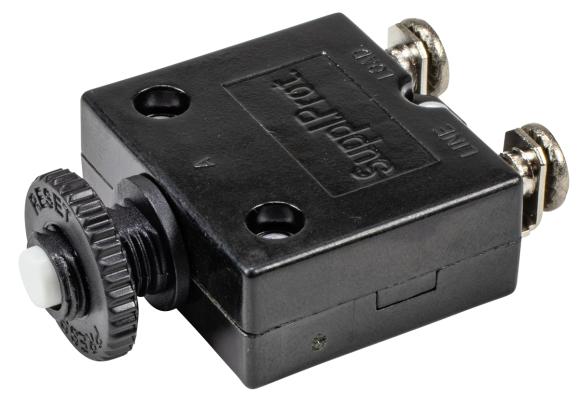

The Sea-Dog SD-13 is a 10 amp push-to-reset thermal circuit breaker built for marine panels. It protects a single AC or DC accessory circuit and resets with a push of the white button, so there's nothing to replace when it trips.
Sea-Dog built the SD-13 for the kind of circuit protection you actually want on a boat. It's a thermal breaker, so it trips on the heat of an overload and you reset it by pushing the white button back in. No spare fuses rattling around in a drawer. It handles 10 amps, rated to 250 volts AC and 50 volts DC, which covers most accessory and lighting circuits at the helm.
The body is Bakelite, a tough phenolic that shrugs off heat and won't melt like cheap plastic. Screw terminals make wiring straightforward, and it panel mounts with just 3/16 inch of depth behind the dash, so it fits tight console spaces.
Here's the part that matters on the water. It's ignition protected to UL1500 and UL 1077 listed, which means it's safe to mount in an engine compartment or any space where fuel vapors could collect. Wire it in, push to reset, done.
Key Features
- 10 amp rating at 250V AC and 50V DC covers most helm accessory and lighting circuits
- Push-to-reset button means no spare fuses to buy or carry
- Ignition protected to UL1500 and UL 1077 listed, safe for engine compartments and fuel-vapor areas
- Bakelite housing resists heat better than standard plastics
- Panel mount with only 3/16 inch depth fits tight console and dash spaces
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | SD-13 Thermal Circuit Breaker; 10 Amp; 250 Volt AC/ 50 Volt DC; Push-To-Reset; Black With White Button; Bakelite; Screw Terminals; Panel Mount; 3/16 Inch Panel Depth; UL Listed: UL 1077/ UL/cUL/ Ignition Protected UL1500; Single |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 830113 |
| UPC | 035514830041 |
| Series | SD-13 |
| Type | Thermal Circuit Breaker |
| Amperage | 10 Amp |
| AC Voltage Rating | 250 Volt AC |
| DC Voltage Rating | 50 Volt DC |
| Reset Type | Push-To-Reset |
| Color | Black With White Button |
| Material | Bakelite |
| Terminals | Screw Terminals |
| Mounting | Panel Mount |
| Panel Depth | 3/16 Inch |
| Certifications | UL 1077, UL/cUL, Ignition Protected UL1500 |
| Quantity | Single |
Frequently asked questions
Is the Sea-Dog SD-13 safe to install in an engine compartment?
Yes. It's ignition protected and listed to UL1500, so it's rated for spaces where fuel vapors could be present, including engine compartments.
How do I reset it after it trips?
Just push the white button back in. It's a push-to-reset thermal breaker, so there's nothing to replace when it trips on an overload.
What voltage and amperage does it handle?
It's rated for 10 amps at up to 250 volts AC or 50 volts DC.
How does the SD-13 mount?
It's a panel-mount breaker with screw terminals, and it needs only 3/16 inch of depth behind the panel.
