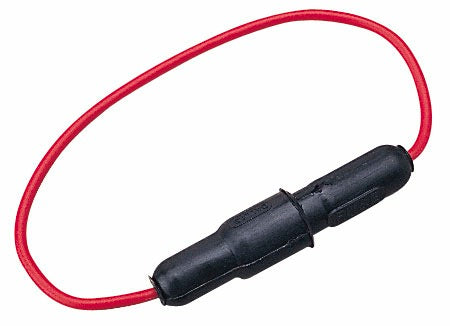

Sea-Dog AGC Watertight Inline Fuse Holder, 10A
Sea-Dog AGC Watertight Inline Fuse Holder, 10A — Product description
Sea-Dog's AGC watertight inline fuse holder is a simple, sealed way to protect a single 12-volt circuit on your boat. It's pre-wired with 16-gauge leads, ships with a 10-amp AGC fuse already in place, and the snap-tight housing keeps spray and moisture out. Good for wiring in a bilge pump, nav light, or accessory run.
If you're wiring in an accessory and want it protected without mounting a whole fuse block, this Sea-Dog inline holder does the job. It splices right into the run on 16-gauge leads, so it's sized for lighting, small pumps, electronics, and most low-draw 12-volt circuits.
The housing snaps shut over the AGC fuse and seals against spray, rain, and the damp that lives in every bilge and console. That watertight design is the whole point. A bare fuse holder corrodes fast in salt air, and a corroded connection is a nuisance blow waiting to happen. This one keeps water off the contacts.
It comes with a 10-amp AGC fuse installed, so you can wire it in and go. Swapping the fuse later is easy, just pop the housing open. Standard AGC glass fuses are cheap and easy to find anywhere, which makes this a simple one to keep spares for. Rated for a single circuit.
Key Features
- Watertight snap-tight housing seals the AGC fuse against spray and bilge moisture
- 16-gauge pre-wired leads splice straight into lighting, pump, and accessory circuits
- Ships with a 10-amp AGC fuse installed, ready to wire in
- PVC construction stands up to salt air and damp
- Tool-free fuse swaps using standard AGC glass fuses
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog AGC Watertight Inline Fuse Holder |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420552-1 |
| UPC | 035514420655 |
| Fuse Type | AGC |
| Wire Gauge | 16 Gauge |
| Amperage | 10 Ampere |
| Connection | Snap Tight |
| Material | PVC |
| Watertight | Yes |
| Fuse Included | Yes |
| Quantity | Single |
Frequently asked questions
What fuse does this holder use?
It takes standard AGC glass fuses and ships with a 10-amp fuse already installed. AGC fuses are common and easy to find if you need to swap one or keep spares aboard.
Is it really watertight?
Yes. The snap-tight housing seals around the fuse to keep spray, rain, and bilge moisture off the contacts, which is what stops the connection from corroding in salt air.
What size wire does it have?
The holder comes pre-wired with 16-gauge leads, which suits lighting, small pumps, electronics, and most low-draw 12-volt accessory circuits.
Can I change the amperage?
You can drop in a different AGC fuse to match your circuit. It's sold with a 10-amp fuse, but any standard AGC fuse of the right rating fits.
