Sea-Dog AGC Inline Fuse Holder, 20A 12V DC, 14 Gauge
Sea-Dog AGC Inline Fuse Holder, 20A 12V DC, 14 Gauge — Product description

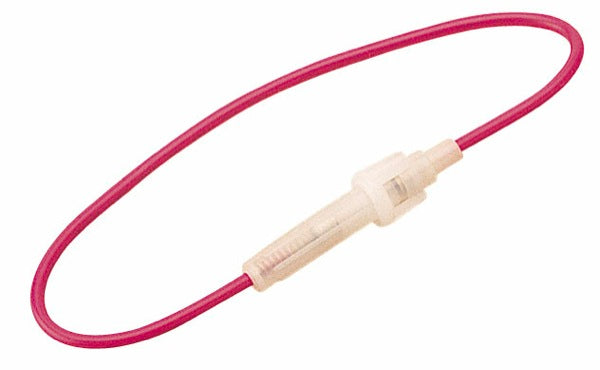

This is Sea-Dog's inline AGC fuse holder, pre-loaded with a 20 amp fuse and ready to wire into a 12 volt DC circuit. It's the simple, reliable way to protect a single accessory run without cutting into your main panel.
If you've added an accessory and need to fuse it on its own, this inline holder does the job. It's built around a standard 1/4 inch by 1-1/4 inch AGC glass fuse, the same size you'll find at any marine or auto parts counter, and it ships with a 20 amp fuse already installed. Wire it in, drop in the fuse, and that circuit is protected.
You get 11-1/2 inches of 14 gauge wire, enough to splice into most accessory runs without adding a junction. The nylon body keeps things light and resists corrosion down in the bilge or behind the dash. It's rated for 20 amps at 12 volts DC, which covers a lot of common loads like lights, pumps, electronics, and small blowers.
Replacing a blown fuse is easy. The holder opens to swap the AGC element, and it takes any AGC fuse from the 444101 through 444120 range, so you can match the amperage to whatever you're protecting. You get one holder per pack.
Key Features
- Pre-loaded with a 20 amp AGC fuse, rated 20A at 12V DC
- Accepts standard 1/4 in. x 1-1/4 in. AGC glass fuses for cheap, easy replacements
- 11-1/2 in. of 14 gauge wire splices right into an accessory run
- Nylon housing resists corrosion and keeps weight down
- Fits AGC fuses from 444101 to 444120, so you can match the amp rating to the load
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | AGC Inline Fuse Holder with 20 Amp Fuse |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420500-1 |
| UPC | 035514424059 |
| Fuse Type | 1/4 in. x 1-1/4 in. AGC Style |
| Compatible Fuses | 444101 to 444120 |
| Wire Length | 11-1/2 in. |
| Wire Gauge | 14 Gauge |
| Amperage | 20 Ampere |
| Voltage | 12 Volt DC |
| Fuse Included | Yes, 20 Amp |
| Material | Nylon |
| Quantity | Single |
Frequently asked questions
What size fuse does this holder use?
It takes a standard 1/4 inch by 1-1/4 inch AGC glass fuse. A 20 amp fuse comes installed, and you can drop in any AGC fuse in the 444101 to 444120 range to match your circuit.
Is the fuse included?
Yes. A 20 amp AGC fuse ships already installed in the holder.
What's the wire gauge and length?
You get 11-1/2 inches of 14 gauge wire, enough to splice into most 12 volt accessory runs.
What's the voltage and amperage rating?
It's rated for 20 amperes at 12 volts DC.
Is it waterproof?
There's no stated waterproof rating. The housing is nylon, which handles corrosion well, so mount it where it's protected from direct spray, like behind the dash or inside a console.
