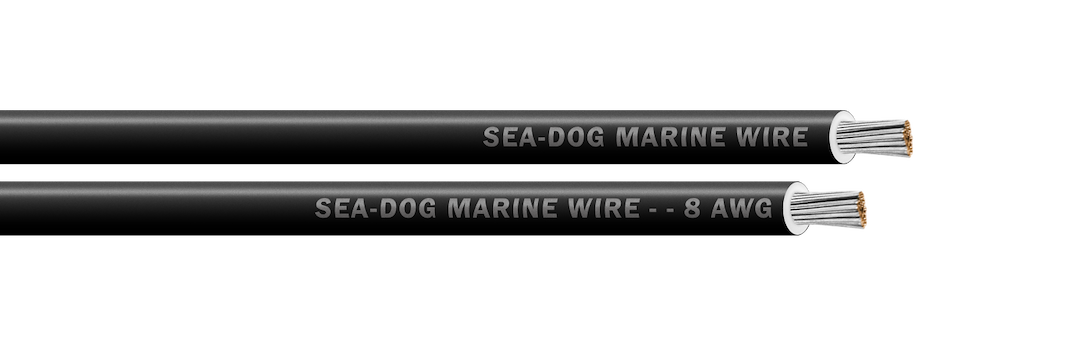

Sea-Dog 8 AWG Tinned Copper Primary Wire, Black, 500 Foot

This is Sea-Dog's 8 AWG marine primary wire, wound on a full 500 foot spool in black. It's stranded tinned copper built for the DC wiring on boats, where salt air, spray, and bilge moisture chew through ordinary automotive wire in a season or two. If you're rigging a new build, rewiring an older hull, or stocking a shop for a run of jobs, a 500 foot reel gives you the length to pull clean, continuous runs without splicing partway.

The reason boaters pay for tinned wire instead of bare copper comes down to what happens where you can't see it. Every strand in this conductor carries a coating of tin, so when moisture works its way under a heat shrink boot or into a terminal, the copper underneath stays bright instead of turning green and brittle. Bare copper corrodes from the outside in, and a corroded conductor loses current-carrying capacity and builds heat right where you'd least want it. Tinned copper is the standard on any boat that spends real time in the water, and it's what surveyors expect to see.

This wire is ABYC and UL certified, which matters more than a marketing line. A boat wired to ABYC standards passes insurance surveys and haul-out inspections without a fight, and non-certified equivalents get flagged. If you're doing work that a surveyor or an insurer will eventually look at, starting with certified wire saves you from redoing it later.

Eight gauge sits in the middle of the marine wiring range. It's the size a lot of installers reach for on windlass feeds, bow and stern thruster runs, larger accessory circuits, and mid-length battery-to-panel runs where a thinner wire would drop too much voltage. Voltage drop is the whole game on a boat, because the longer the run and the higher the load, the more voltage you lose on the way. Sizing up to 8 AWG on a long run keeps your gear seeing the voltage it actually needs. Always size the wire to the load and the round-trip distance using an ABYC ampacity chart rather than guessing.

The conductor is finely stranded, so it bends around stringers, through bulkhead penetrations, and into tight electrical panels without kinking the way solid or coarse wire does. That flexibility is what makes a 500 foot pull practical. You can route it the long, clean way around an obstruction instead of forcing a hard bend. The black insulation is the conventional choice for negative and ground runs, and it's easy to label at both ends so the next person who opens the panel knows what they're looking at.

A 500 foot spool is really built for people who wire boats for a living or who are taking on a whole-vessel project. It's enough to feed a full rewire, and reels like this tend to get reused across several jobs, so labeling your runs as you go pays off. If you only need a few feet for a single circuit, this is more wire than you'll use, but for anyone buying by the spool the cost per foot is where the value shows up.

A few install notes from the field. Use adhesive-lined heat shrink terminals and lugs at every connection so moisture can't wick into the strands, and slip the run into loom or conduit anywhere it's exposed to UV or chafe. Black jackets can fade in sunlight over the years even while the conductor underneath stays clean, so protect exposed runs. When you crimp and torque your lugs, follow the terminal maker's torque spec. Over-tightening a screw terminal can crack fine strands and create the exact high-resistance hot spot you're trying to avoid.

One thing this wire is not. It's not AC cable, and it's not a shortcut around correct gauge sizing. It's single-conductor DC primary wire. Pair it with correctly rated breakers or fuses, match the gauge to your load and distance, and it'll carry current cleanly for the life of the boat.
