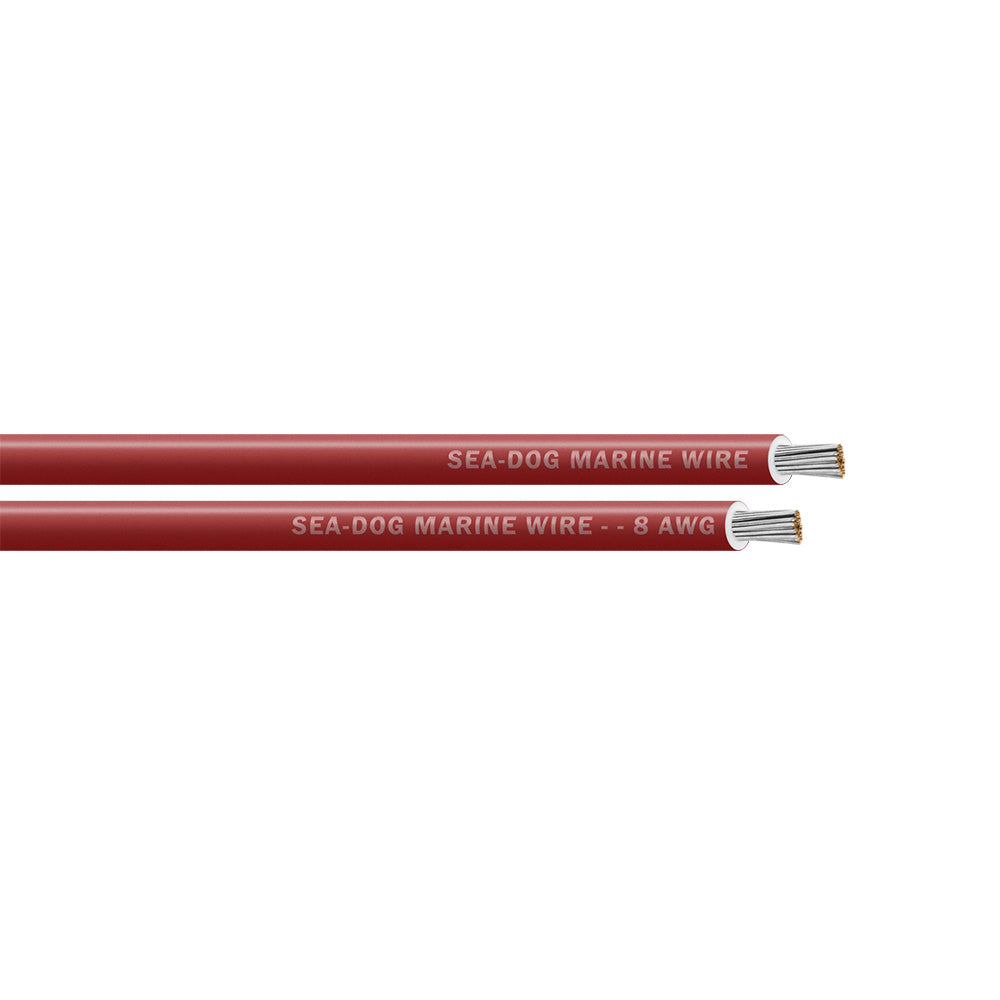

Sea-Dog 8 AWG Red Marine Primary Wire, 25 ft Spool
Sea-Dog 8 AWG Red Marine Primary Wire, 25 ft Spool — Product description
Sea-Dog's 8 AWG primary wire is a heavy-gauge, red, tinned copper conductor on a 25-foot spool. It's built for the high-current DC runs on your boat, windlass feeds, trolling motor leads, and battery cables, where thin wire just won't hold up. Stranded for flexibility, tinned against corrosion, and PVC insulated for a long service life in salt air.
This is Sea-Dog's 8 AWG primary wire, a heavy-gauge single conductor sold on a 25-foot spool in red. It's the wire you reach for when a circuit pulls real current and a thinner gauge just won't cut it. Think windlass feeds, trolling motor leads, inverter runs, and battery-to-panel cables on smaller boats.
The conductor is tinned copper, and that matters more on a boat than just about anywhere else. Bare copper corrodes fast once salt air and bilge moisture get to it. The corrosion wicks up a stranded conductor and turns a clean connection green and resistive over a season or two. Tinned strands hold off that corrosion, so your crimps and terminals stay solid for the long haul. It's stranded, not solid, so it flexes around bulkheads and feeds through tight console and bilge runs without fighting you.
The insulation is PVC, and the red jacket is there for a reason. On a DC system you want your positive runs marked clearly, and red is the standard color for the positive side. Grab this spool for the hot leads and pair it with a black or yellow return, so the next person who opens the panel can read the wiring at a glance.
Eight gauge is a lot of copper. It's overkill for a nav light, but it's the right call for the high-draw stuff. If you're wiring a windlass that stalls under load, or running power back to a trolling motor plug up on the bow, the heavier conductor keeps voltage drop in check over the length of the run. Undersized wire on a long, high-current run gets warm and robs you of voltage right when the load needs it most.
A 25-foot spool covers most single runs on a boat under 30 feet, with enough left over to redo a connection if you nick the insulation on the first pass. Cut what you need, seal your terminals with adhesive-lined heat shrink, and you're set. We'd always tell you to size the wire to the load and the run length using a marine ampacity chart, not by feel. When in doubt, go heavier.
Key Features
- 8 AWG heavy-gauge conductor sized for high-current DC circuits like windlass, inverter, and trolling motor feeds
- Tinned copper strands resist salt-air and bilge corrosion, keeping crimps and terminals solid over time
- Stranded construction stays flexible for routing through tight console and bilge runs
- PVC insulation with a red jacket for clear positive-side DC identification
- 25-foot spool covers most single runs on boats under 30 feet
- Single-conductor primary wire, cut to the exact length your run needs
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog 8 AWG Red Tinned Copper Primary Wire, 25 ft Spool |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 8008020 |
| UPC | 035514800518 |
| Wire Gauge | 8 AWG |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Color | Red |
| Length | 25 ft Spool |
| Wire Type | Primary Wire (Single Conductor) |
Frequently asked questions
Is this wire stranded or solid?
Stranded. The tinned copper conductor is made of multiple fine strands, so it flexes around bulkheads and feeds through tight runs without fighting you. Solid wire would be a headache to route on a boat.
What gauge is this wire?
8 AWG. That's a heavy gauge meant for higher-current DC circuits like windlasses, inverters, and battery leads, not light loads like cabin or nav lights.
Why tinned copper instead of bare copper?
Tinning coats each strand so it resists the corrosion that salt air and bilge moisture cause on bare copper. Your connections stay clean and low-resistance a lot longer, which is exactly what you want on the water.
What is the red wire used for?
Red is the standard color for positive DC runs. Use this spool for your hot leads and mark your returns with a different color so the wiring stays easy to read at the panel.
How many amps will 8 gauge wire carry?
It depends on the run length, the ambient temperature, and whether the wire is bundled with others. Eight gauge is a heavy conductor suited to high-current circuits, but always size it against a marine wire ampacity chart for your specific run rather than trusting a single number.
How long is the spool?
25 feet. That covers most single runs on a boat under 30 feet with a little to spare for redoing a connection.
