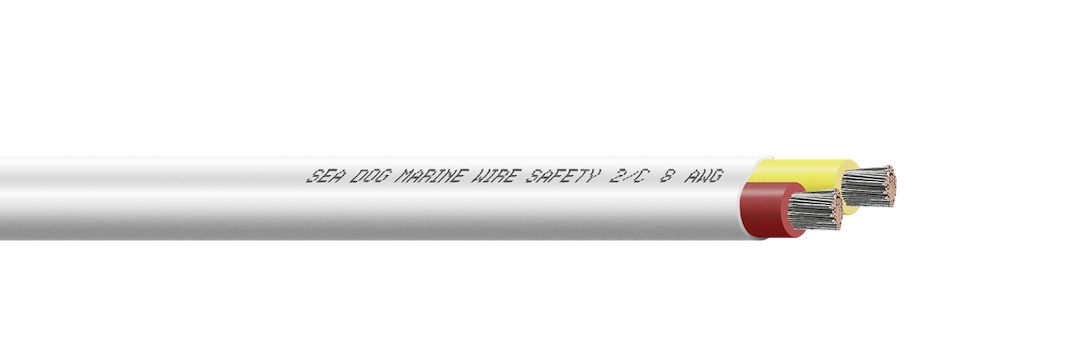

Sea-Dog 8/2 AWG Duplex Flat Marine Wire, 100 ft, Red/Yellow

Sea-Dog's 8/2 AWG duplex safety wire is 100 feet of proper marine cable, the kind you want feeding the loads that actually matter on a boat. You get two 8-gauge conductors, one red and one yellow, laid flat inside a single PVC jacket. Both conductors are stranded tinned copper, and that tinning is the whole point. Bare copper corrodes fast in a salt environment, wicking green up under the insulation until a connection goes high-resistance and warm. Tinned strands shrug that off for years.

The 8 AWG size puts this in windlass, bow thruster, and heavy accessory territory. Think anchor windlass feeds, an inverter branch, a big livewell pump, or a run to a secondary distribution panel. At 8 gauge you've got real current capacity, but you still need to mind voltage drop on long runs. As a rough guide, a 30 amp load pushed 25 feet on this wire lands right around a 3 percent drop, which is the ABYC target for critical circuits. Go much longer or much heavier and you'll want to step up a gauge or split the load across a parallel run.

The flat encasement is a genuinely nice feature for tight boats. It lays down behind a headliner or against a stringer without the bulge you get from two round cables zip-tied together, which matters on a 30 to 40 foot hull where every inch of chase counts. Flat also sheds heat a little better in a warm engine space. One caution though. Anywhere the wire crosses a stringer, bulkhead, or sharp edge, give it chafe protection. Split loom or a rubber grommet is cheap insurance against a rub-through you won't find until it's a problem.

Why red and yellow instead of red and black? On a lot of newer boats yellow is the preferred DC negative color because it's hard to confuse with the black used for AC. Running red positive and yellow negative keeps your DC and AC systems visually separate, which is exactly what a surveyor and the next owner want to see. The whole cable is rated to 600 volts, so there's enormous headroom for any 12, 24, or 32 volt DC system you'll put it on.

Stripping it is easy. The red and yellow legs separate cleanly with a utility knife run down the seam, then strip each conductor with a proper wire stripper. Don't hack at the strands with side cutters. Nick a few and you've quietly lost capacity and created a hot spot. Terminate with quality tinned copper lugs and adhesive-lined heat shrink, and the connection will outlast the wire. Untinned terminals on tinned wire is a false economy that shows up as corrosion inside two seasons.

A couple of real-world notes from pulling this stuff. A fresh 100 foot spool likes to hold memory kinks when you unroll it, so lay it out on deck and let it relax, or pull it straight before you feed it through conduit. And respect the temperature rating. The PVC is happy to 105 degrees C dry, but it softens if you route it hard against an exhaust riser or turbo. Keep it clear of those hot spots or add heat shielding.

This is UL 1426 boat cable and it carries the ABYC nod, so it'll pass a survey and it's the right call for permanent DC wiring below decks. What it isn't is AC shore-power cable or a substitute for battery cable on a starter run, where you want a larger, finer-stranded conductor. For 12 or 24 volt DC feeds in the 8 gauge range, though, this is exactly what belongs on the boat. Buy the 100 foot roll once and you'll be pulling from it for years to come.
