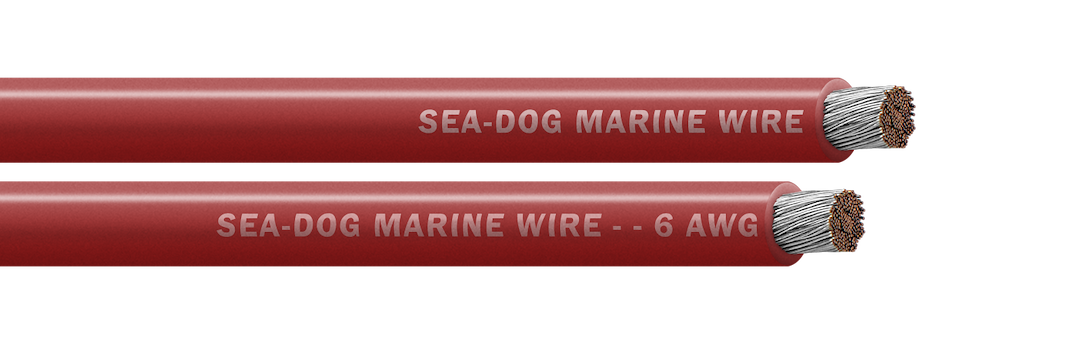

Sea-Dog 6 AWG Red Tinned Copper Marine Battery Cable, 100 Feet

This is Sea-Dog's 6 AWG battery cable in red, sold as a 100-foot length of finely stranded, tinned copper conductor. It's the wire you reach for when you're running DC power on a boat and you want it done once, done right. The tinned copper strands and the red marine insulation are built for the wet, salty, vibrating world a boat lives in, not the dry static run of a house wall.

Why tinned? Bare copper starts to corrode the moment salt air finds it, and that corrosion creeps up under the insulation where you can't see it until a connection goes high-resistance and starts making heat. Every strand here is tin-plated, so it shrugs off that slow green death far longer than plain copper. It also takes solder and crimps cleanly years down the road, which matters when you're re-terminating a run you installed three seasons back.

Six gauge is a common size for medium-current DC runs. Think windlass power on a 30 to 40 foot boat, bow-thruster feeds, inverter and charger runs, house-bank tie-ins, and heavier accessory circuits. It's flexible enough to route through a bilge and around a battery switch without fighting you, but heavy enough to carry real amperage without cooking. On longer runs, keep voltage drop in mind. A 6 AWG run out to a bow thruster 20-plus feet away can sag under load, and plenty of boaters end up upsizing to 4 AWG when the distance and the current both climb. Do the math for your run before you cut.

The red insulation isn't just for looks. Red is the ABYC color for positive DC, so using it on your positive runs keeps your wiring readable for the next person who opens the panel, whether that's you in five years or a surveyor next month. And that ABYC and UL certification is what lets this cable pass an insurance survey. Inspectors flag non-tinned, non-marine-rated substitutes, so spending a little more on properly rated cable now saves you a re-wire later.

A few install notes from the dock. Terminate it with the right lugs, 3/8-inch ring terminals are common on battery posts and switches, and finish every connection with adhesive-lined heat shrink. That glue-lined shrink seals the lug barrel so water can't wick up inside the strands, which is the number-one killer of marine terminations. Avoid sharp 90-degree bends right at a battery switch or post. Strands fatigue and break at hard kinks after a couple of seasons, so give the cable a gentle radius or run it in conduit where it has to turn. Where the cable passes through a bulkhead, add chafe protection. Tinned copper handles an engine room better than bare copper, but nothing survives a vibrating edge sawing through the jacket.

Fuse it. Any positive run off the battery wants overcurrent protection sized to the circuit and mounted close to the positive post, within about seven inches per ABYC practice. That's your fire insurance on a thruster or starter feed. And if you're cutting this 100-foot length into several shorter runs, seal the leftover ends in a bag. Exposed tinned ends still oxidize over time, and oxidized strands make for poor crimps down the road.

Who's this not for? If you're wiring a big inverter, a large windlass on a heavier boat, or any long high-current run, step up to 4 AWG or 2 AWG instead. Six gauge is a mid-range cable, and undersizing invites voltage drop and heat. And if you only need a couple of feet, buying 100 feet is overkill unless you've got other runs to knock out. But for a boat with a punch list of DC jobs, a battery switch relocation here, a thruster feed there, a windlass run up front, having a full 100-foot length of properly rated red cable on the shelf means you're never stuck waiting on wire mid-project.

Bottom line, this is honest marine battery cable from a name that's been supplying boat hardware for decades. Buy the length once, cut what you need, terminate it properly, and it'll outlast most of the gear it's feeding.
