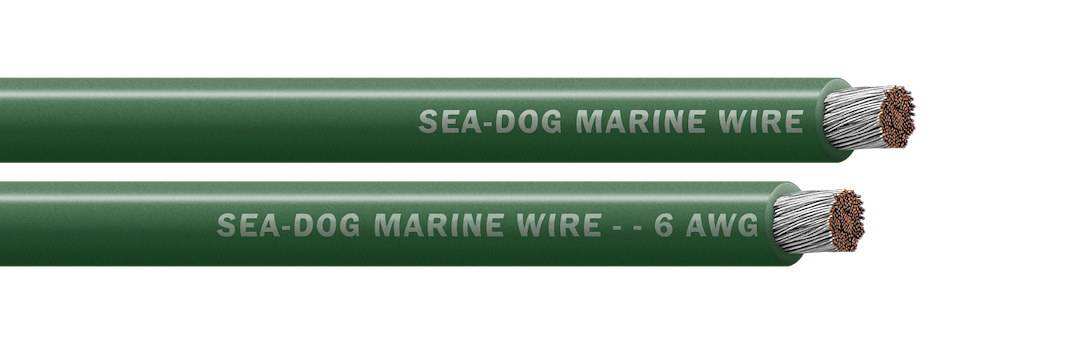

Sea-Dog 6 AWG Green Tinned Copper Battery Cable, 100 Foot Spool

This is Sea-Dog's 6 AWG battery cable, a full 100-foot spool of green, tinned copper conductor built for the kind of high-current DC work that keeps a boat running. Think battery bank interconnects, inverter feeds, windlass runs, and heavy ground returns. It's stranded, not solid, so it bends around bulkheads and down into tight bilge corners without fighting you the whole way.

The tinning is the part that matters most out here. Bare copper looks fine the day you install it, then the salt air and the damp under the sole go to work, and a year later you've got green corrosion creeping up under the insulation. Every strand of this cable is tinned, so it shrugs off that moisture far longer than bare wire ever could. It's the difference between a connection you make once and a connection you're back chasing next season.

Six gauge is the sweet spot for a lot of mid-size rigs. On a 30 to 40 foot powerboat, boaters reach for 6 AWG tinned green all the time as the negative return for the house bank and the bigger DC loads. It carries serious amperage on short to medium runs without getting warm, and the 100-foot spool gives you enough to do a full section of the boat off one roll instead of splicing lengths together.

A word on planning your runs. A 100-foot spool sounds like a lot until you start pulling it through a real boat, so measure everything before you cut. There's not a ton of waste margin once you commit. If you're feeding something thirsty a long way from the bank, like a bow thruster up at the stem, keep an eye on voltage drop over that distance. On runs past about 20 feet a lot of folks step up to a heavier gauge to keep the drop in check. For most house-side and battery work under that length, 6 AWG does the job cleanly.

Handling off the spool is easy enough with two people. One feeds, one pulls. The stranded core stays flexible in cold weather too, so a spring recommission down in a chilly bilge doesn't leave you wrestling stiff wire.

Terminating this cable right is non-negotiable. Use a proper hydraulic or ratcheting crimper on your lugs. Hand-squeezing a lug onto 6 gauge leaves the strands loose, and a loose crimp on a battery feed builds heat exactly where you don't want it, at a windlass connection or an inverter terminal. And even though the copper is tinned, seal every terminated end with adhesive-lined heat shrink. Tinning slows corrosion, it doesn't stop water from wicking into an open end. Seal it and forget it.

The green jacket follows the common US convention for DC negative and ground, so it keeps your wiring legible to the next person who opens the panel. Do yourself and your surveyor a favor and don't mix green in as a positive conductor. Keep colors doing their job.

Both the UL and ABYC marks are printed on the jacket, which is what inspectors want to see on a new build or a survey. Worth knowing though, the certification is on the wire, not on your workmanship. A surveyor will still look hard at your crimps and your chafe protection, so run the cable in loom or add grommets anywhere it passes through a bulkhead. Stranded cable takes a tight bend better than solid, but it'll still chafe through if it's rubbing bare on a fiberglass edge trip after trip.

Who's this for? Anyone rewiring a DC system the right way, from a sailor cleaning up a rat's nest in the bilge to a powerboat owner adding an inverter or a second battery bank. It's not the cable for your small signal and lighting circuits, that's lighter gauge work. This is the heavy stuff, the runs that move real current, and it's the grade of wire you want feeding everything downstream of the batteries.
