Sea-Dog 520320-1 Livewell Drain Tube 1-1/4 In
Sea-Dog 520320-1 Livewell Drain Tube 1-1/4 In — Product description

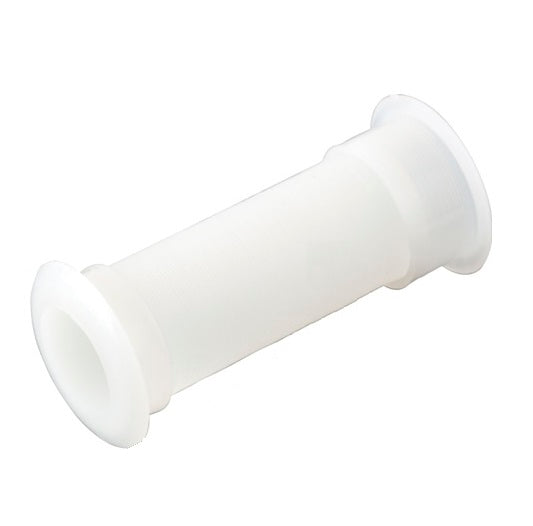

The Sea-Dog 520320-1 is a simple HDPE and ABS drain tube for your boat's motor well, livewell, or baitwell. It's got a 90 degree flange on one end, measures 1-1/4 inch OD, and works with both snap handle and T-handle drain plugs.
This is the Sea-Dog 520320-1 drain tube, a straightforward HDPE and ABS fitting that mounts in your boat's motor well, livewell, or baitwell. It's got a 90 degree flange on one end, so it sits flush against the well wall and sheds water the way it should. White, single piece, and built to shrug off years of saltwater and sun.
The tube measures 1-1/4 inch outside diameter and 2-1/2 inch in length. It's designed to seat both snap handle and T-handle drain plugs, so whatever style of plug you're already running, this tube gives it a clean home. If your old drain tube has cracked, corroded, or started weeping around the flange, swapping in a fresh one is a ten-minute job that keeps your well draining clean and dry.
Keep a spare in the console. When a plug seat goes bad mid-season, you'll be glad you did.
Key Features
- 1-1/4 inch outside diameter fits standard motor well, livewell, and baitwell drain openings
- 90 degree flange on one end seats flush against the well wall and sheds water cleanly
- HDPE and ABS construction stands up to saltwater and UV exposure
- Works with both snap handle and T-handle drain plugs
- 2-1/2 inch length suits most transom and well thicknesses
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog HDPE Drain Tube, 1-1/4 Inch OD, 90 Degree Flange, White |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 520320-1 |
| UPC | 035514520560 |
| Outside Diameter | 1-1/4 Inch |
| Length | 2-1/2 Inch |
| Material | HDPE / ABS |
| Color | White |
| Flange | 90 Degree on One End |
| Mount Location | Motor Well / Livewell / Baitwell |
| Compatible Drain Plugs | Snap Handle and T-Handle |
| Quantity | Single |
Frequently asked questions
What drain plugs does this tube work with?
It's made to seat both snap handle and T-handle drain plugs, so either style of plug fits cleanly.
Where does this drain tube mount?
It's built for motor well, livewell, and baitwell drain openings.
What are the dimensions?
The tube is 1-1/4 inch outside diameter and 2-1/2 inch in length.
What's it made of?
HDPE and ABS. Both hold up well to saltwater and sun, so it won't corrode like a metal fitting would.
