Sea-Dog 426710-1 100A Buss Bar, 5 Stud / 2 Screw
Sea-Dog 426710-1 100A Buss Bar, 5 Stud / 2 Screw — Product description

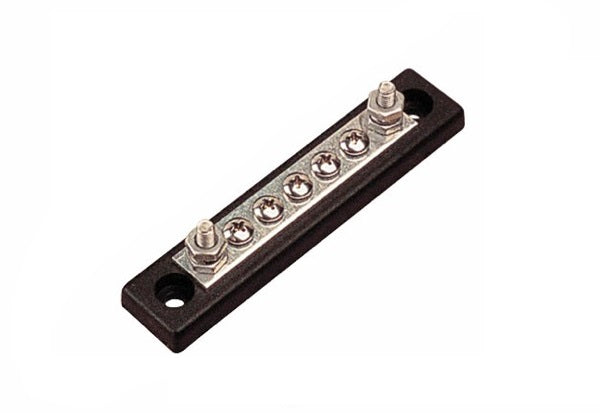

The Sea-Dog 426710-1 is a 100 amp marine buss bar with five stud terminals and two screw terminals on a tin plated brass strip. It gives you one tidy central point to land your 12-volt DC wiring, and it stands up to the salt air and damp that eat bare copper alive.
Every boat with more than a couple of accessories needs a clean place to land its wiring, and that's exactly what this Sea-Dog buss bar does. It's a flat strip design with five stud terminals and two screw terminals, so you can tie in your electronics, pumps, and lights from one central point instead of stacking ring terminals on the back of a switch.
The bar itself is tin plated brass, which handles salt air and a damp bilge a lot better than bare copper. It's rated to 100 amps, so it'll carry the load for most 12-volt DC systems on small to mid-size boats. The ABS base keeps everything insulated and mounts flat to a bulkhead or panel.
At 4-3/16 inches long and 7/8 inch wide, it tucks into tight spaces behind the helm or inside an electrical locker. Simple, honest hardware that makes rigging cleaner and troubleshooting a whole lot faster when you're chasing down a dead circuit at the dock.
Key Features
- 100 amp rating carries the load for most 12-volt DC accessory circuits on small to mid-size boats
- Five stud terminals plus two screw terminals give you seven landing points from a single bar
- Tin plated brass construction resists corrosion in salt air and damp bilge conditions
- ABS base insulates the connections and mounts flat to a bulkhead or panel
- Compact 4-3/16 inch by 7/8 inch flat strip fits tight spaces behind the helm or in an electrical locker
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog 100 Amp Buss Bar, 5 Stud / 2 Screw Terminal |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 426710-1 |
| UPC | 035514427456 |
| Type | Flat Strip |
| Amperage | 100 Amp |
| Terminals | 5 Stud Terminal / 2 Screw Terminal |
| Length | 4-3/16 Inch |
| Width | 7/8 Inch |
| Material | Tin Plated Brass / ABS |
Frequently asked questions
How many connections does this buss bar support?
It has five stud terminals and two screw terminals, for a total of seven landing points from one bar.
What is the amperage rating?
It's rated to 100 amps, which covers most 12-volt DC accessory systems on small to mid-size boats.
What is it made of?
The conductor is tin plated brass for corrosion resistance, and the base is ABS to keep the connections insulated.
How big is it?
The flat strip measures 4-3/16 inches long by 7/8 inch wide, so it fits into tight spaces behind the helm or inside an electrical locker.
