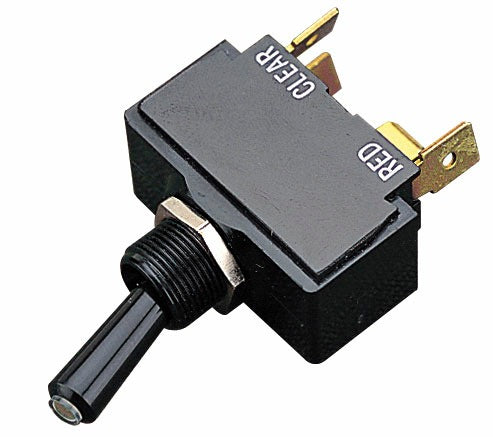

Sea-Dog 420121-1 Lighted Toggle Switch 12V 15A
Sea-Dog 420121-1 Lighted Toggle Switch 12V 15A — Product description
The Sea-Dog 420121-1 is a lighted-tip toggle switch built for the helm, dash, or any 12-volt DC circuit on your boat. It's a single-pole on-off switch rated for 15 amps, with a tip that glows when it's on so you can find it in the dark. Brass and polycarbonate construction holds up to life on the water.
Every boat needs a few good switches, and the Sea-Dog 420121-1 is one of those parts you install once and forget about. It's a single-pole single-throw toggle, on and off, rated for 15 amps at 12 volts DC. Wire it to your bilge blower, a set of deck lights, a livewell pump, whatever you've got that needs a clean manual switch.
The lit tip is the nice touch here. Flip it on and the tip glows, so you can see at a glance what's running when you're at the dash after dark. Four blade terminals on the back make wiring straightforward with standard spade connectors.
Construction is brass, nylon, and polycarbonate, so it stands up to the damp and the salt better than a cheap hardware-store toggle. The lever action is firm and positive. You'll know when it's on.
It's a compact switch that drops into a standard panel cutout. Good for a new build, a refit, or swapping out a tired old switch that's stopped making solid contact.
Key Features
- 15 amp rating at 12 volts DC, enough for blowers, pumps, and small lighting circuits
- Single pole single throw on-off action for simple manual switching
- Lighted tip glows when on, so you can spot an active circuit at the dash after dark
- Four blade terminals accept standard spade connectors for quick wiring
- Brass, nylon, and polycarbonate build stands up to damp and salt
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog Lighted Tip Toggle Switch |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 420121-1 |
| UPC | 035514420006 |
| Voltage | 12 Volt DC |
| Amperage | 15 Ampere |
| Switch Function | On-Off |
| Circuit | Single Pole Single Throw |
| Actuator | Lever Toggle |
| Terminals | 4 Blade Terminals |
| Illumination | Lighted Tip |
| Color | Black |
| Material | Brass / Nylon / Polycarbonate |
Frequently asked questions
What is this switch rated for?
It's rated for 15 amps at 12 volts DC. That covers most boat accessory circuits like bilge blowers, livewell pumps, and small lighting runs.
Does the tip really light up?
Yes. The tip glows when the switch is in the on position, so you can tell at a glance what's running when you're at the dash in the dark.
How does it wire in?
It uses four blade terminals on the back, so you connect it with standard spade connectors. It's a single-pole single-throw on-off switch.
Will it hold up on a boat?
It's built from brass, nylon, and polycarbonate, which handle damp and salt better than a generic hardware-store toggle.
