Sea-Dog 4-Conductor Deck Connector 5A 12/24V DC
Sea-Dog 4-Conductor Deck Connector 5A 12/24V DC — Product description

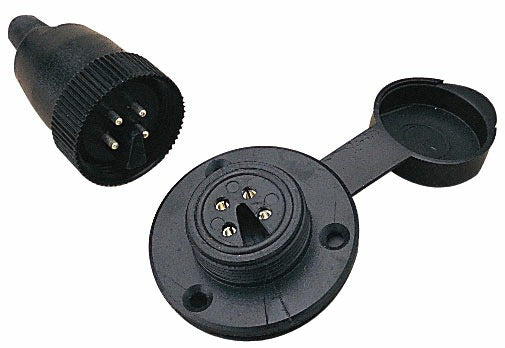

Need to run wiring through your deck and still be able to unplug it? The Sea-Dog 4-conductor deck connector carries four circuits through one polarized fitting, rated 5 amps at 12 or 24 volts DC. The black thermoplastic socket comes with a matching cap and plug, so the connection stays protected when it's not in use.
This is the connector you reach for when a light bar, a removable radar arch, or a cockpit accessory needs its wiring to pass through the deck and still come apart cleanly. The Sea-Dog 4-conductor deck cable outlet gives you a socket-and-plug pair that carries four separate circuits through a single polarized fitting, so there's no guessing which wire goes where when you reconnect.
It's rated for 5 amps at 12 or 24 volts DC, which covers most low-draw deck gear: nav lights, sensors, small pumps, and control signals. The body is black thermoplastic, so it won't corrode the way a metal shell can in salt air. Polarized keying means it only mates one way, and the matching thermoplastic cap seals the socket when the plug is pulled.
Keep in mind this is a 5-amp connector. It's not meant for high-current runs like a windlass or a big inverter feed. But for deck-level accessories and signal wiring, it's a clean, serviceable way to make a removable through-deck connection.
Key Features
- 4-conductor design carries four separate circuits through one through-deck fitting
- Rated 5 amperes at 12/24 volts DC for low-draw deck accessories and signal wiring
- Polarized keying mates one way only, so reconnection stays in the right order every time
- Black thermoplastic body resists corrosion in salt air
- Includes a matching thermoplastic cap and plug to seal the connection when disconnected
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog 4-Conductor Polarized Deck Cable Connector, 5A 12/24V |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 426234-1 |
| UPC | 035514426114 |
| Number of Conductors | 4-Conductor |
| Amperage Rating | 5 Ampere |
| Voltage Rating | 12/24 Volt DC |
| Color | Black |
| Socket Material | Thermo Plastic |
| Polarity | Polarized |
| Included Items | Thermo Plastic Cap and Thermo Plastic Plug |
Frequently asked questions
How much current can this connector handle?
It's rated for 5 amperes at 12 or 24 volts DC. That's plenty for nav lights, sensors, and other low-draw deck gear, but it's not sized for high-current loads like a windlass or an inverter feed.
How many wires does it carry?
Four. It's a 4-conductor connector, so you can run four separate circuits through a single through-deck fitting.
Does it come with both the plug and a cap?
Yes. The connector includes the thermoplastic socket, a matching thermoplastic plug, and a cap that seals the socket when the plug is disconnected.
Is it polarized?
Yes. The connector is keyed so it only mates one way, which keeps your four circuits in the right order every time you reconnect.
