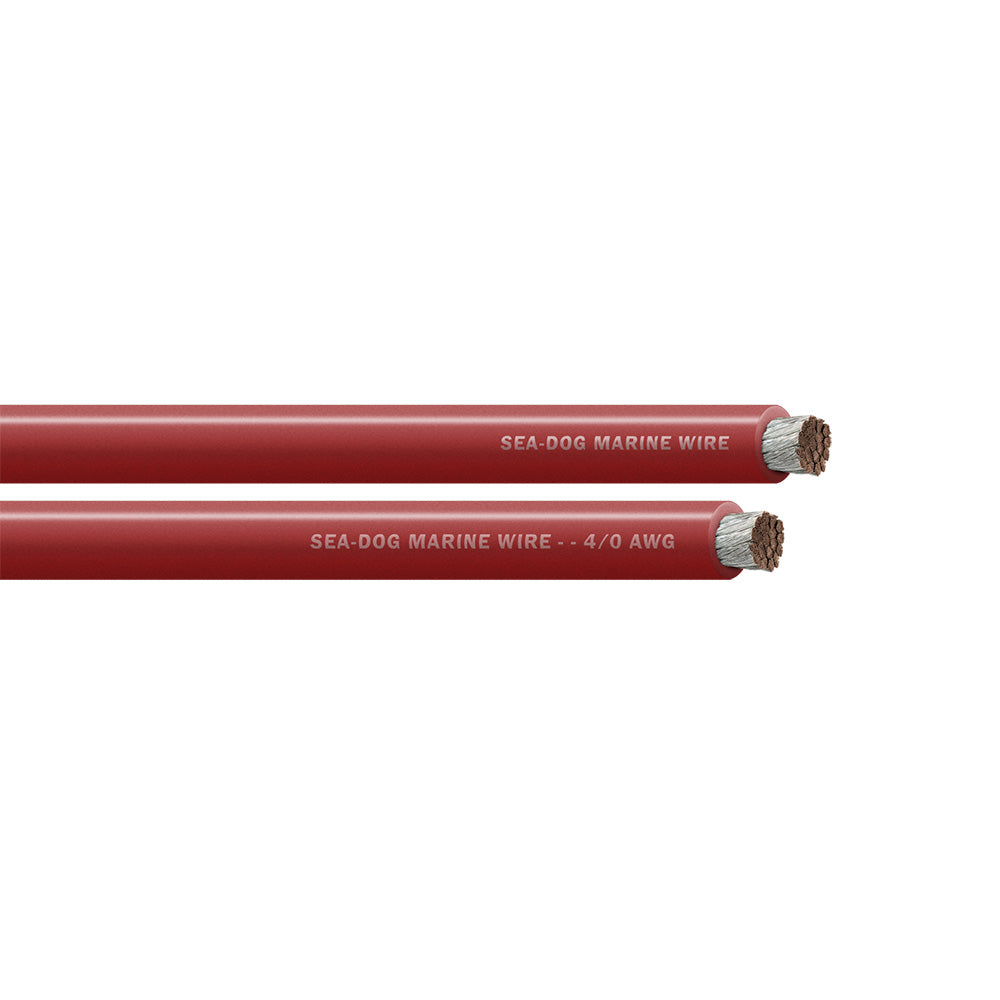

Sea-Dog 4/0 AWG Tinned Copper Battery Cable, Red, 25 ft Spool

When a load on your boat pulls real current, you don't want to guess about the cable feeding it. This is Sea-Dog's 4/0 AWG battery cable, and it's the heavy gauge you reach for on the biggest DC runs aboard. It's tinned copper all the way through, wrapped in a red jacket for your positive side, supplied as a 25 foot spool with no terminals crimped on. That last part matters. You cut it to the exact length your boat needs and put your own lugs on the ends, so there's no wasted cable and no fighting a factory terminal that doesn't match your studs.

4/0 is one of the largest gauges most boats will ever use. It's what you run to a high-output inverter, a windlass up on the bow, a bow thruster, or between the batteries in a big house bank. It's also the cable of choice for the main run from the battery to the master switch on larger boats. If you're wiring something that draws hundreds of amps, this is the size that keeps voltage drop in check and keeps the cable from getting warm under load. For lighter jobs it's overkill, and that's fine to know up front. Reach for 4/0 when the amperage genuinely calls for it.

The tinned copper is the part that earns its keep over the years. Every strand is coated in tin, so when salt air and bilge moisture find their way to a cut end, the copper underneath doesn't go green and chalky the way bare wire does. On a boat that's the whole game. Bare copper looks fine for a season, then the resistance creeps up at the terminals and you start chasing voltage drop you can't explain. Tinned strands hold their shine and hold their connection. It's why ABYC leans on tinned wire for marine work in the first place.

Because it ships without terminals, plan on lugging both ends yourself. A word of honest advice: 4/0 is stiff, and it needs a proper hydraulic crimper to get a clean, gas-tight connection. A hand ratchet tool will leave loose strands that heat up under load, and that's exactly what you don't want on a 200-amp circuit. Get the lug fully seated, crimp it hard, and finish every end with adhesive-lined heat shrink so no moisture wicks up into the strands. Do that and the connection will outlast the boat.

Don't forget the fuse. On any positive run this heavy, put a suitably rated fuse, a 250 amp ANL is common on inverter and thruster runs, within about 12 inches of the battery positive terminal. That short unfused stub is the one spot ABYC allows, and skipping the fuse entirely is how a chafed cable turns into a fire. We've seen the aftermath of an unfused 4/0 run and it isn't pretty. Size the fuse to your load and your cable, and keep it close to the battery.

The red jacket is your positive-side color by convention, so pair this with a black or yellow run of the same gauge for the negative return and your wiring stays readable for the next person who opens the panel, including future you. The insulation stands up well to diesel, oil, and the general grime of an engine room. In direct sun the red will fade a little after several seasons, which is cosmetic and doesn't hurt the conductor. The 25 foot spool covers most single runs on a mid-size boat. On a 35-footer or bigger you'll sometimes want two spools for a long battery-to-switch pull, so measure your route before you order.

One practical tip from the dock: the spool can tangle if you yank the last several feet off in a hurry. Feed it off steadily, or re-spool it onto a reel first, and you'll save yourself a knot. And because it carries both the UL and ABYC marks, it's the cable that keeps a surveyor happy. More than a few owners have had an insurance survey where the inspector looked specifically for that stamp on the jacket. This one has it.

Bottom line, this is straightforward, honest marine cable for the heaviest jobs on your boat. Cut it to length, crimp it right, fuse it close to the battery, and it'll carry every amp you ask of it for years.
