Sea-Dog 304 Stainless Gas Lift Ball Stud, 10mm Ball
Sea-Dog 304 Stainless Gas Lift Ball Stud, 10mm Ball — Product description

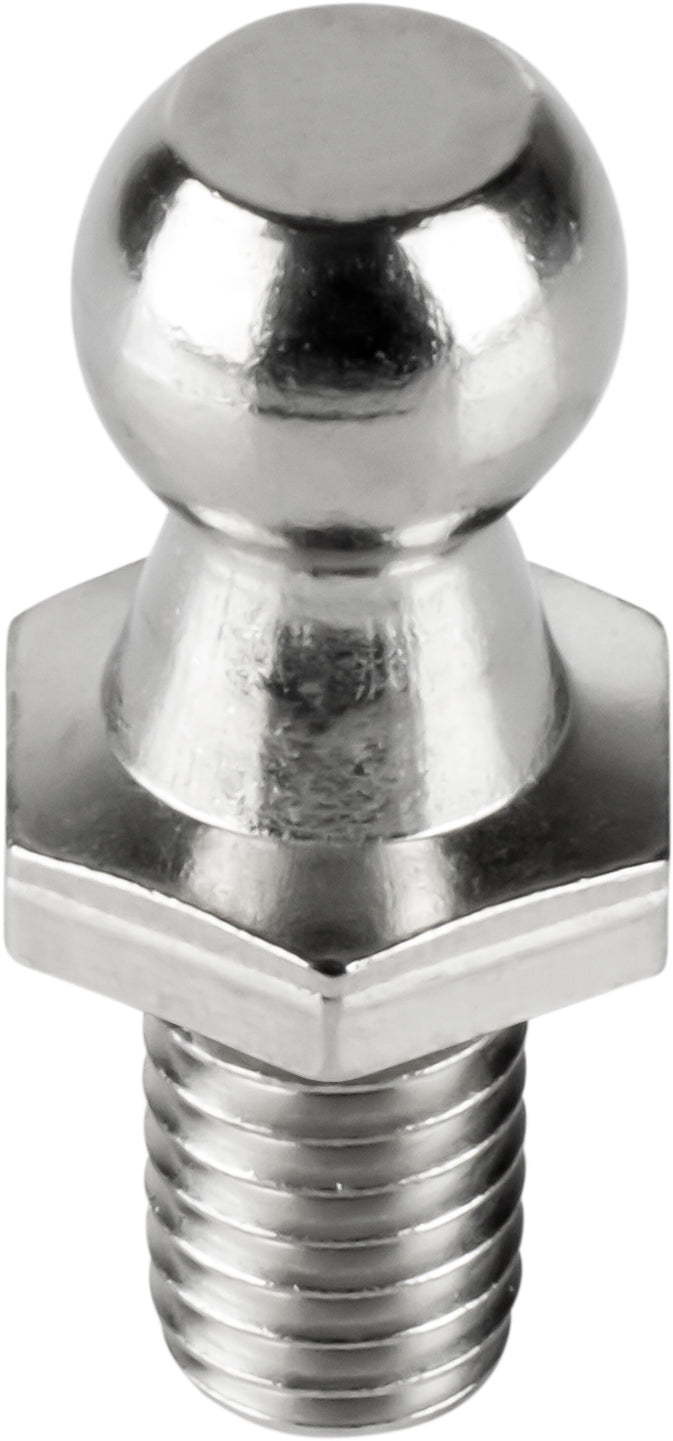

The Sea-Dog gas lift ball stud is the stainless pivot a gas spring socket snaps onto. It's a 10mm ball on a 5/16 inch-18 threaded shank, machined from 304 stainless so it shrugs off salt spray. The right fix when a hatch strut's mounting stud strips or corrodes.
This is the ball stud end for a gas lift spring, the little pivot the gas strut's socket snaps onto. If you've got a hatch lid, an engine compartment door, or a livewell cover held open by a gas spring, this is the mounting point the strut rides on. When the old one strips or corrodes, you swap in a fresh stud instead of replacing the whole setup.
Sea-Dog machines this one from 304 stainless steel, so it stands up to salt spray and washdowns without rusting out. The ball measures 10mm, the common size for standard gas spring sockets. The threaded shank is 5/16 inch-18 and runs 9/16 inch long, and it comes with a 1/2 inch hex so you can snug it down with a regular wrench.
It's sold as a single stud, so grab two if you're replacing both ends of a strut. Simple part, but it's the kind of thing that keeps a hatch opening and closing the way it should.
Key Features
- 304 stainless steel construction resists saltwater corrosion and washdowns
- 10mm ball stud fits standard gas lift spring sockets
- 5/16 inch-18 threaded shank, 9/16 inch long, for a secure mount
- 1/2 inch hex lets you snug it down with a standard wrench
- Sold individually, so order two to replace both ends of a strut
Why Buy from NVN Marine
- Authorized Sea-Dog reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Sea-Dog Stainless Gas Lift Ball Stud |
|---|---|
| Brand | Sea-Dog |
| Manufacturer Part Number | 321586-1 |
| UPC | 035514321662 |
| Material | 304 Stainless Steel |
| Ball Stud Diameter | 10 Millimeter |
| Thread Size | 5/16 Inch-18 |
| Stud Length | 9/16 Inch |
| Hex Nut Size | 1/2 Inch |
| Fits | Gas Lift Springs |
| Finish | Corrosion Resistant |
| Sold As | Single |
Frequently asked questions
What size is the ball on this stud?
The ball measures 10mm, which is the common size for standard gas lift spring sockets. Check your strut's socket before ordering.
What are the thread specs?
The shank is 5/16 inch-18 thread and runs 9/16 inch long. It comes with a 1/2 inch hex nut so you can tighten it with a regular wrench.
Is it corrosion resistant?
Yes. It's machined from 304 stainless steel, so it holds up to salt spray and deck washdowns without rusting.
Does it come as a pair?
No, this is sold as a single stud. If you're replacing the studs on both ends of a gas spring, order two.
