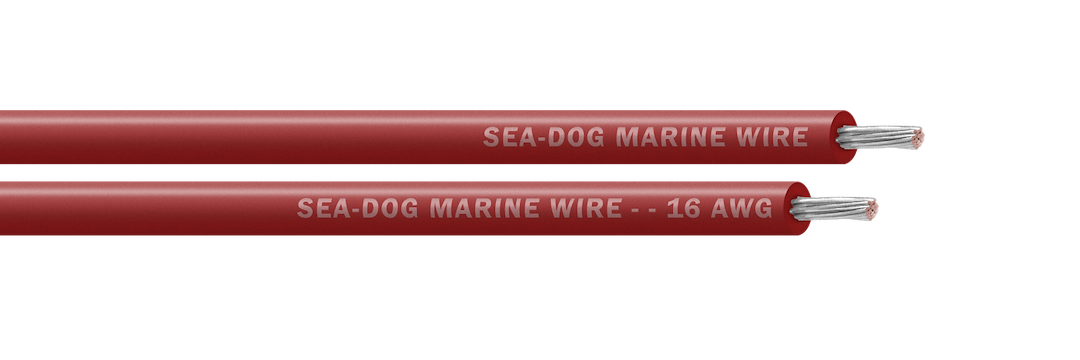

Sea-Dog 16 AWG Red Tinned Copper Primary Wire, 1000 Foot Spool

This is Sea-Dog's 16 AWG marine primary wire, wound on a full 1000 foot spool with a red tinned copper conductor. It's the everyday workhorse wire for low-current DC circuits on a boat. Nav lights, small bilge pumps, instrument feeds, accessory switches, that kind of thing. If you've ever chased down a corroded connection behind a panel, you already know why the tinned part matters.

Here's the deal with tinned copper. Bare copper wire looks fine the day you install it, but salt air and moisture creep in over the years and the strands start to go green and brittle. Tinned copper has a thin coating on every strand that holds off that corrosion. On a boat, that's not a luxury, it's the difference between a connection that still reads full voltage in five years and one that slowly starves your electronics. Sea-Dog builds this wire to UL and ABYC standards, so it's the right call for a proper marine DC install rather than automotive wire from the parts store.

The conductor is stranded, not solid, which is exactly what you want on the water. Stranded wire flexes with the boat and takes the constant vibration and pounding without work-hardening and cracking. It also pulls easier through tight chases, around bulkheads, and into conduit. The red insulation keeps your color-coding clean. Most folks run red for the positive side of a DC circuit, so you can trace a run months later without a meter.

What's 16 gauge good for? Think small loads and short-to-medium runs. Navigation and anchor lights, cabin lights, a small bilge pump, fish finders and instruments, courtesy lights, accessory switches. It's a great general-purpose gauge to keep on the boat. What it's not for is high-draw gear. A windlass, an inverter, a big thruster, or a main battery feed all pull far more current than 16 AWG should carry, and you'll want to step up to a heavier gauge for those. Voltage drop matters too. The longer the run, the more the wire eats into your voltage, so on a long circuit you may need to go up a size even for a modest load. When in doubt, size up.

A 1000 foot spool is a lot of wire. For most boaters this is either a full rewire project or a spool that lives in the shop and gets tapped for small jobs for years. A couple of things we've learned pulling wire off a big spool like this: set it on a rotating reel stand or have a helper hold it so it pays out cleanly. Pull it straight off a laid-down spool and it'll kink and twist on you every time. And support the wire where it enters a panel or junction. Unsupported 16 AWG can fatigue and break a strand or two right at the terminal, which shows up later as a flaky connection. A little spiral wrap or a cable clamp every foot or so takes care of that.

On the connector side, this gauge does best with adhesive-lined heat-shrink terminals. The lined shrink seals the wire entry against moisture, which is where plain nylon crimps tend to wick water in and corrode. Crimp it properly, shrink it down, and you've got a sealed, marine-grade connection that'll outlast the boat. If you're running exposed to direct sun for long stretches, keep in mind that a red jacket fades quicker than black under UV, so for topside runs in the weather either tuck it out of the light or add a layer of protection over it.

Bottom line, this is honest marine wire done right. Tinned copper, stranded, UL and ABYC certified, on a spool big enough to handle whatever the season throws at you. Wire it in with good sealed connectors and proper support and you won't think about it again.
